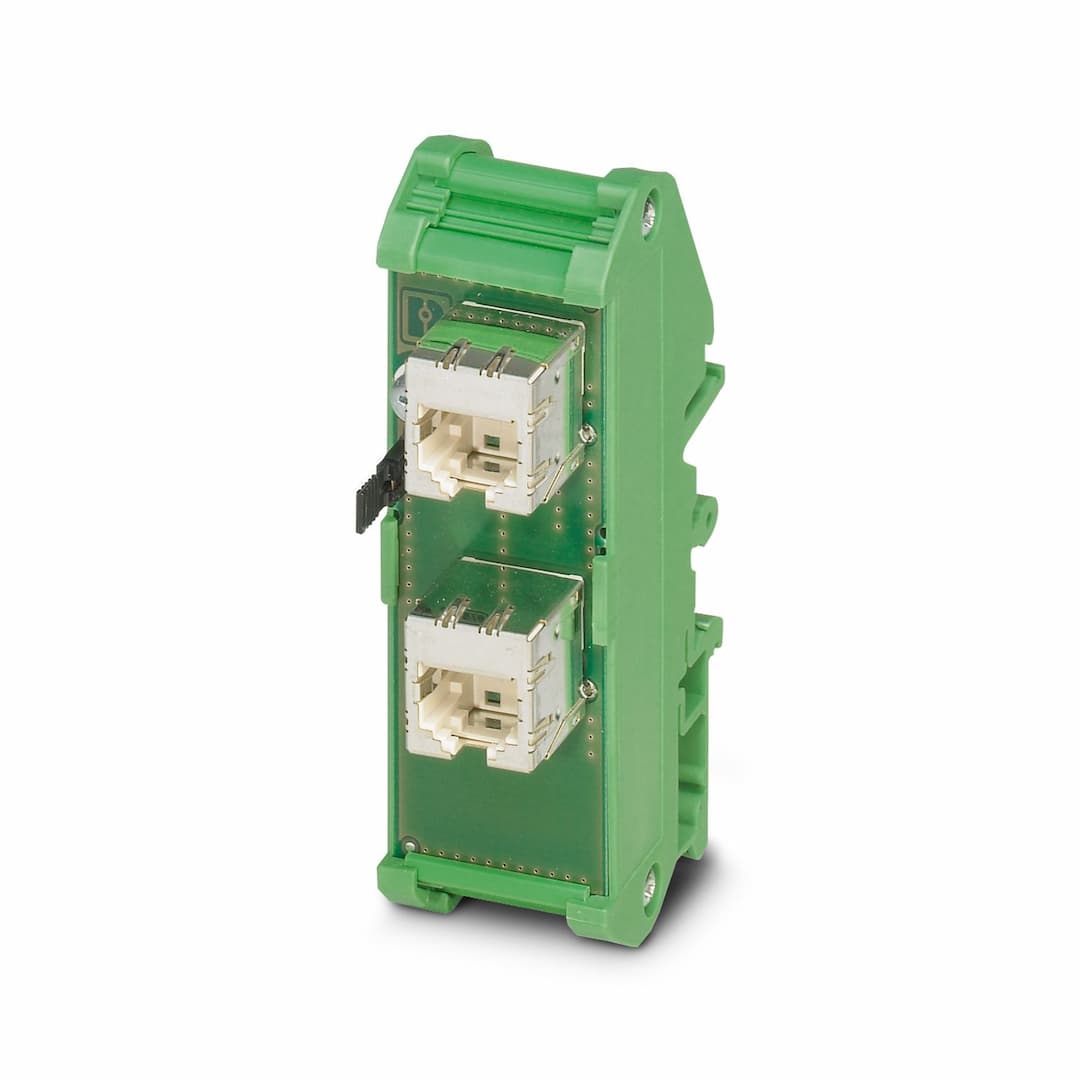

Product Model
FL-PP-RJ45/RJ45
Selling Points
- 1Effortless Installation: No need to crimp RJ45 connectors; simply snap them in.
- 2CAT5e Compatibility: Supports 10/100/1000 Mbps Ethernet speeds.
- 3DIN Rail Mounting: Convenient mounting on DIN rails for easy integration.
- 4Safe Shield Connection: Securely connects to ground potential for reliable operation.
- 5PoE Capability: Compliant with IEEE 802.3bt, type 4 for Power over Ethernet applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
Product type | Patch panel | MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Article revision | 08 | Serial transmission speed | 10/100/1000 Mbps |
Connection method | RJ45 jack | Note on the connection method | CAT5e |
No. of channels | 1 | Pin assignment | 1:1 |
Transmission length | 100 m (including patch cables) | Connection method | RJ45 CAT5e |
No. of channels | 1 | Width | 29 mm |
Height | 90 mm | Depth | 53 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PVC / PA |
Cable impedance | 100 Ω | Insertion/withdrawal cycles | ≤ 2500 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Ambient temperature (assembly) | -10 °C ... 70 °C |
Permissible humidity (operation) | 25 % ... 95 % (non-condensing) | Identification | II 3 G Ex ec IIC Gc |
Certificate | PxCIF14ATEX2901642U | Note | Please follow the special installation instructions in the documentation! |
Identification | II 3 G Ex ec IIC Gc | Certificate | PxCIMA21UKEX2901642U |
Identification | ISA-S71.04-1985 G3 Harsh Group A | Identification | DNV GL |
Temperature | B | Humidity | A |
Vibration | A | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
