Product Model

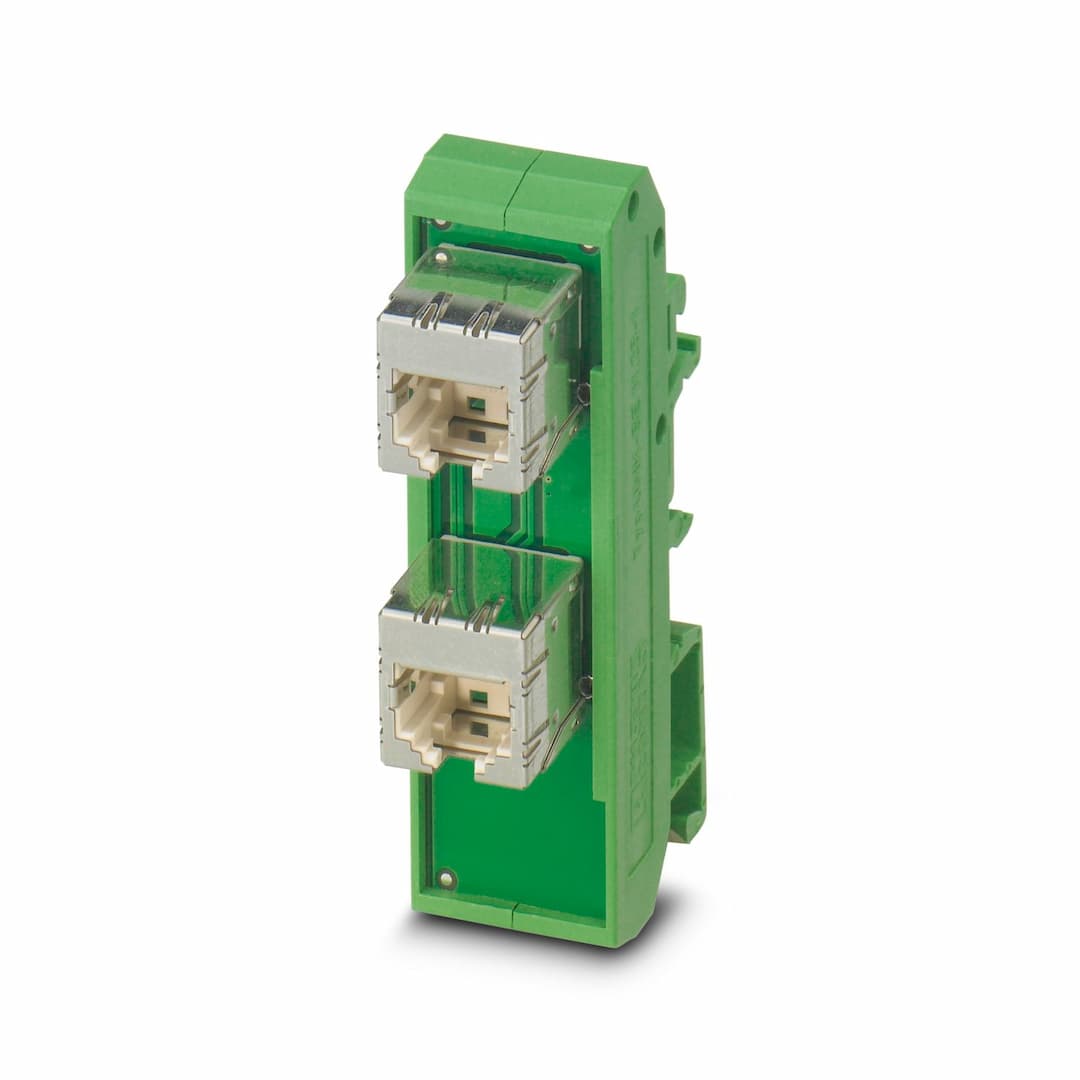

FL-PP-RJ45/RJ45-B
Selling Points
- 1Conveniently mount on DIN rail for easy installation.
- 2Operates from -40°C to 85°C, ensuring reliability in various environments.
- 3Supports high-speed Ethernet connections with 10/100 Mbps speeds.
- 4Compatible with CAT5e cables for reliable data transmission.
- 5Meets IP20 standards for protection against solid objects and dust.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Patch panel |
Article revision | 03 | Serial transmission speed | 10/100 Mbps |
Connection method | RJ45 jack | Note on the connection method | CAT5 |
No. of channels | 1 | Pin assignment | 1:1 |
Transmission length | 100 m (including patch cables) | Connection method | RJ45 CAT5 |
No. of channels | 1 | Width | 22.5 mm |
Height | 78 mm | Depth | 44 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PA 6.6-FR |
Cable impedance | 100 Ω | Insertion/withdrawal cycles | ≤ 2500 |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 85 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (assembly) | -40 °C ... 85 °C |
Permissible humidity (operation) | 25 % ... 95 % (non-condensing) | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
