Product Model

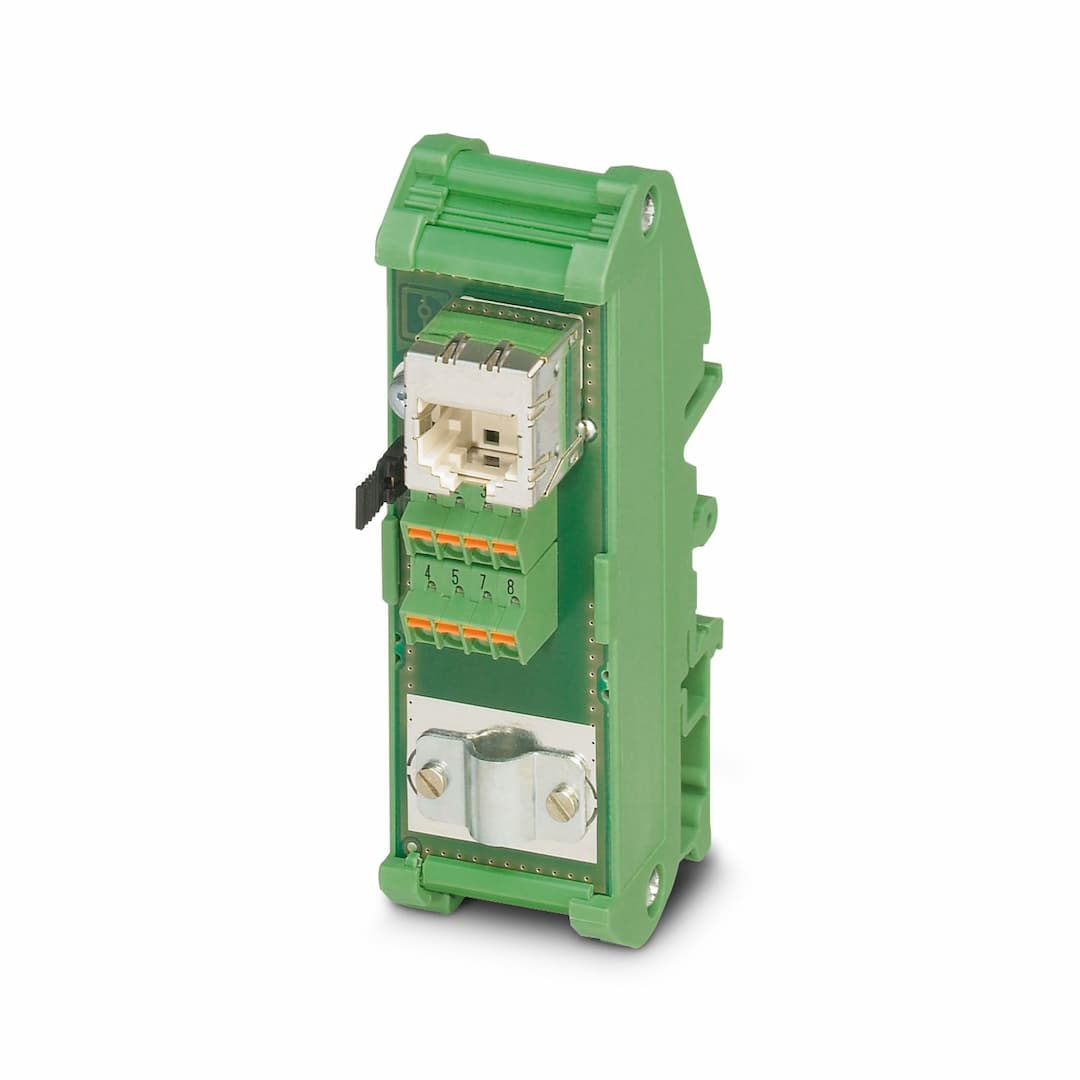

FL-PP-RJ45-SCC
Selling Points
- 1High-Speed Ethernet Connectivity: Supports 10/100/1000 Mbps Ethernet speeds for fast data transmission.
- 2DIN Rail Mounting: Conveniently mountable on DIN rails for easy installation and space-saving design.
- 3IP20 Protection: Ensures reliable operation in industrial environments with IP20 protection.
- 4PoE Capability: Compatible with IEEE 802.3bt, type 4, for Power over Ethernet applications.
- 5Safe Shield Connection: Optional shield connection via jumpers for secure grounding and reduced electromagnetic interference.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
Product type | Patch panel | MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Article revision | 09 | Connection method | Spring-cage connection |
Serial transmission speed | 10/100/1000 Mbps | Connection method | Spring-cage connection |
No. of channels | 1 | Pin assignment | 1:1 |
Transmission length | 100 m (including patch cables) | Single conductor/terminal point, rigid | 0.2 mm² ... 1.5 mm² |
Single-wire/terminal point, flexible | 0.2 mm² ... 1 mm² | Single-wire/terminal point, rigid AWG max. | 16 |
Single-wire/terminal point, rigid AWG min. | 24 | Connection method | RJ45 CAT5e |
No. of channels | 1 | Width | 29 mm |
Height | 90 mm | Depth | 53 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PVC / PA |
External cable diameter | 6 mm ... 10 mm | Cable impedance | 100 Ω |
Insertion/withdrawal cycles | ≤ 2500 | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Ambient temperature (assembly) | -10 °C ... 70 °C | Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
Identification | II 3 G Ex ec IIC Gc | Certificate | PxCIF14ATEX2901642U |
Note | Please follow the special installation instructions in the documentation! | Identification | II 3 G Ex ec IIC Gc |
Certificate | PxCIMA21UKEX2901642U | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Identification | DNV GL | Temperature | B |
Humidity | A | Vibration | A |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
