Product Model

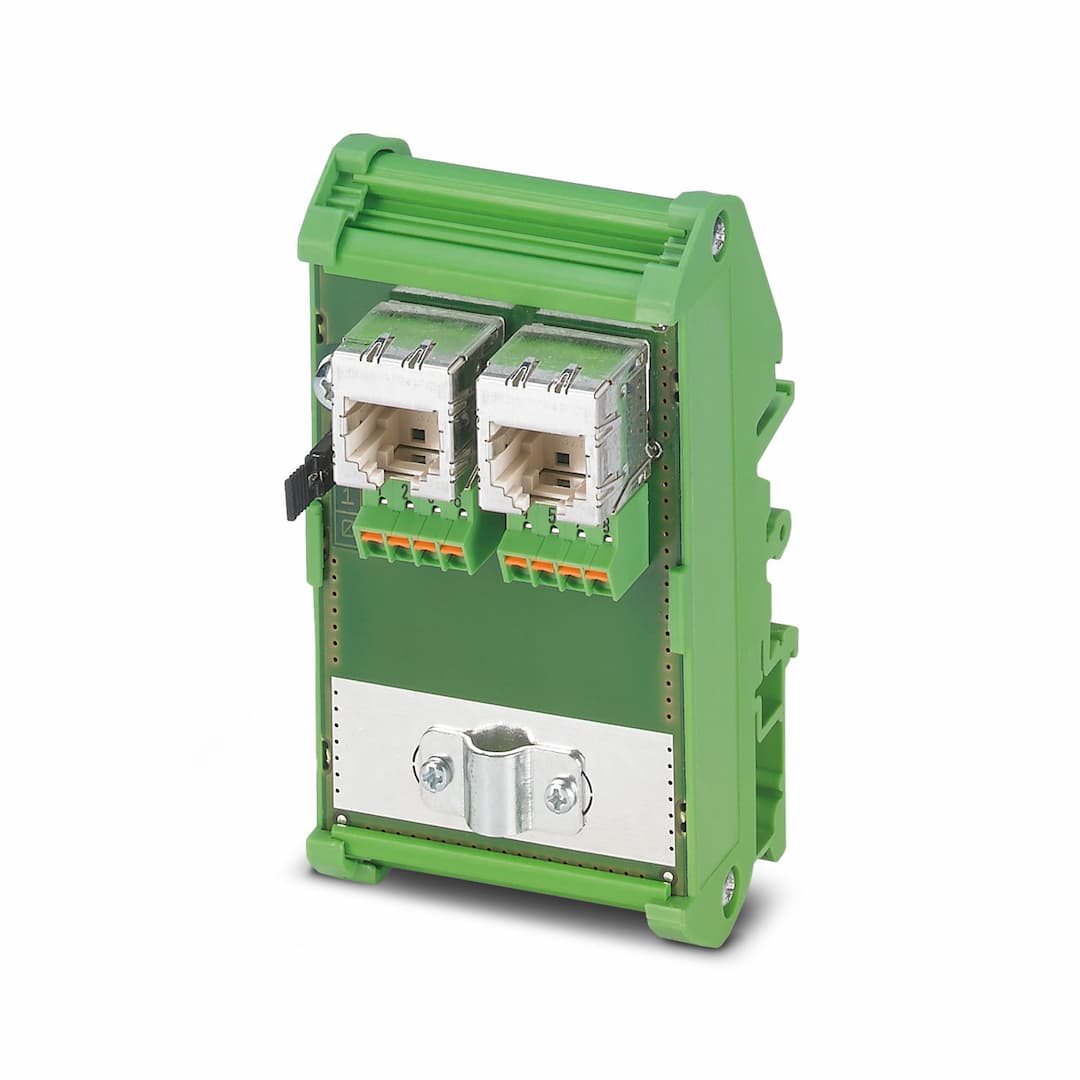

FL-PP-RJ45-SCC/SC041
Selling Points
- 1Efficient Ethernet Connectivity: Supports 10/100/1000Base-T(X) Ethernet interface.
- 2DIN Rail Mounting: Easy installation on DIN rails for compact and organized cabling.
- 3Cable Sharing Module: Enables the use of one cable for multiple services with its cable sharing adapter.
- 4Safe Shield Connection: Provides safe shield connection to ground potential for enhanced security.
- 5Versatile Connection Options: Includes spring-cage connection terminal blocks for flexible field cabling connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Patch panel |
Article revision | 05 | Insulation | Basic insulation |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
Serial transmission speed | 10/100 Mbps | Connection method | Spring-cage connection |
No. of channels | 1 | Pin assignment | 1, 2, 3, 6
4, 5, 7, 8 |
Transmission length | 100 m (including patch cables) | Single conductor/terminal point, rigid | 0.2 mm² ... 1.5 mm² |
Single-wire/terminal point, flexible | 0.2 mm² ... 1 mm² | Single-wire/terminal point, rigid AWG max. | 16 |
Single-wire/terminal point, rigid AWG min. | 24 | Connection method | RJ45 CAT5e |
No. of channels | 1 | Pin assignment | 1, 2, 3, 6
1, 2, 3, 6 |
Width | 52 mm | Height | 90 mm |
Depth | 51 mm | Color (Housing) | green (RAL 6021) |
External cable diameter | 6 mm ... 10 mm | Cable impedance | 100 Ω |
Insertion/withdrawal cycles | ≤ 750 | Degree of protection | IP20 |
Ambient temperature (operation) | -10 °C ... 50 °C | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
