Product Model

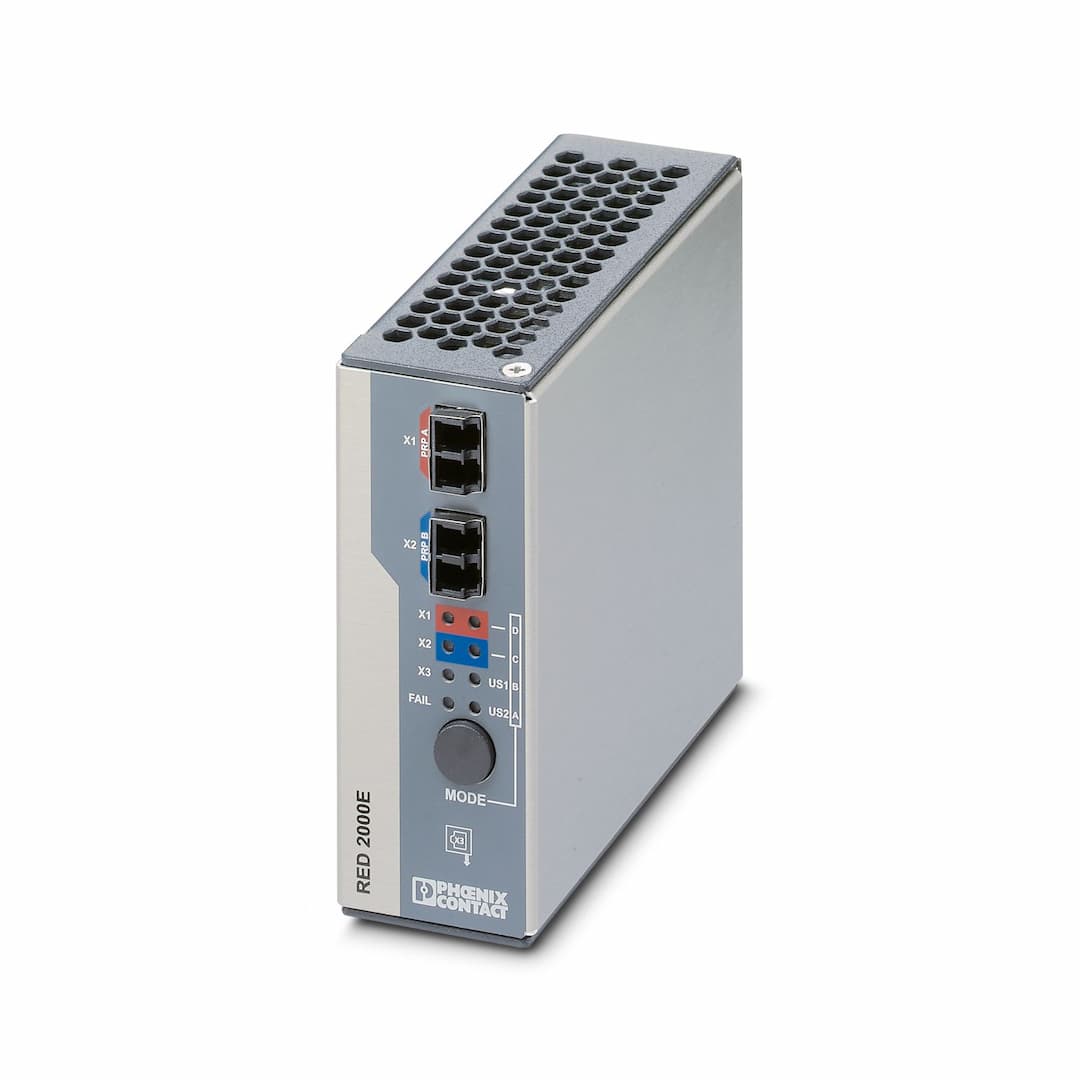

FL RED 2001E PRP 2LC
Selling Points
- 1Compact design for flexible and economical high-availability Ethernet network setup.
- 2Meets IEC 61850-3 and IEEE 1613 standards for robustness in industrial environments.
- 3Supports parallel redundancy protocol (PRP) without switch-over times for maximum network availability.
- 4Operates in a wide temperature range from -40°C to +70°C and has a permissible humidity range of 10% to 95% (non-condensing).
- 5Low power consumption during operation and includes alarm contacts for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 100 mm |
Depth | 109 mm | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 1 (RJ45 port) |
Data flow control/protocols | IEC 61850-3, IEEE 1613 | Connection method | LC |
Transmission speed | 100 Mbps (full duplex) | Transmission physics | multi-mode fiberglass |
Transmission length | 2 km (per segment) | No. of channels | 2 (LC multi-mode) |
Product type | Switch | Product family | Redundancy module |
Type | Block design | Article revision | 04 |
Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol | Redundancy | PRP (Parallel Redundancy Protocol) |
Status and diagnostic indicators | LEDs: U | Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol |
Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED | Maximum power dissipation for nominal condition | 6 W |
Transmission medium | Multi-mode fiberglass
FO | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage | 48 V DC (redundant) | Supply voltage range | 18 V DC ... 58 V DC |
Residual ripple | 3.6 V | Typical current consumption | 250 mA (at U |
Connection method | Via COMBICON | Supply voltage | 48 V DC |
Supply voltage range | 18 V DC ... 58 V DC | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -45 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Air pressure (operation) | 70 kPa ... 106 kPa (3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (3000 m above sea level) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion B | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
Noise emission | EN 61000-6-4 | Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol |
Status display | LEDs: U |
