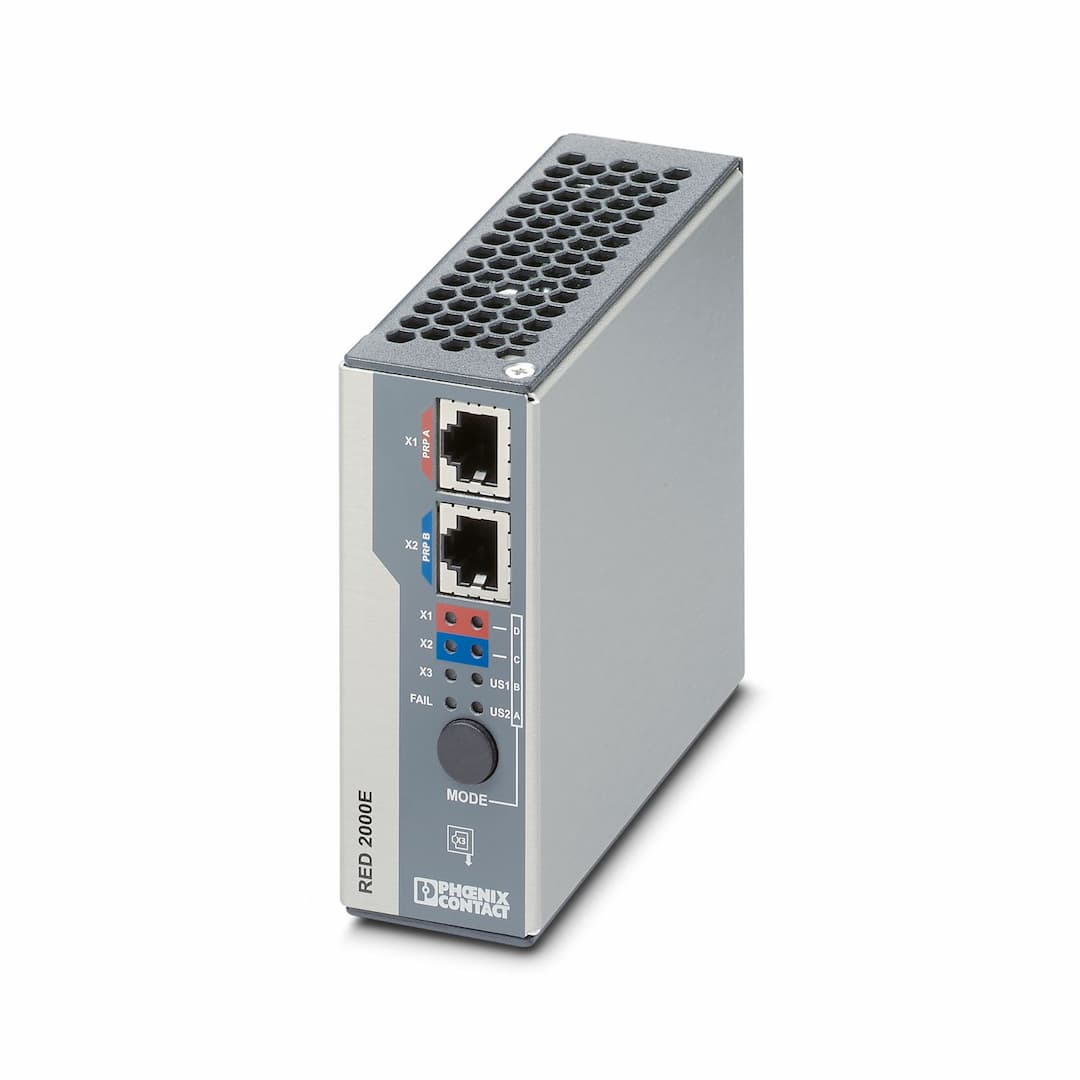

Product Model
FL RED 2003E PRP
Selling Points
- 1Redundancy Protocol PRP: Ensures continuous network operation with the PRP redundancy protocol.
- 2Three RJ45 Connections: Provides multiple Ethernet connections for robust network setup.
- 3High Reliability: Designed to maintain network integrity in critical applications.
- 4Easy Installation: Simple setup process with minimal technical expertise required.
- 5Durable Construction: Built to withstand harsh environments and frequent use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 100 mm |
Depth | 109 mm | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | No. of channels | 3 (RJ45 ports) |
Data flow control/protocols | IEC 61850-3, IEEE 1613 | Product type | Switch |
Product family | Redundancy module | Type | Block design |
Article revision | 04 | Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol |
Redundancy | PRP (Parallel Redundancy Protocol) | Status and diagnostic indicators | LEDs: U |
Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol | Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED |
Maximum power dissipation for nominal condition | 6 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage | 48 V DC (redundant) |
Supply voltage range | 18 V DC ... 58 V DC | Residual ripple | 3.6 V |
Typical current consumption | 250 mA (at U | Connection method | Via COMBICON |
Supply voltage | 48 V DC | Supply voltage range | 18 V DC ... 58 V DC |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -45 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Air pressure (operation) | 70 kPa ... 106 kPa (3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (3000 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion B |
Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Noise emission | EN 61000-6-4 |
Basic functions | Ethernet redundancy module for the Parallel Redundancy Protocol | Status display | LEDs: U |
Specifications may be subject to change without notice
