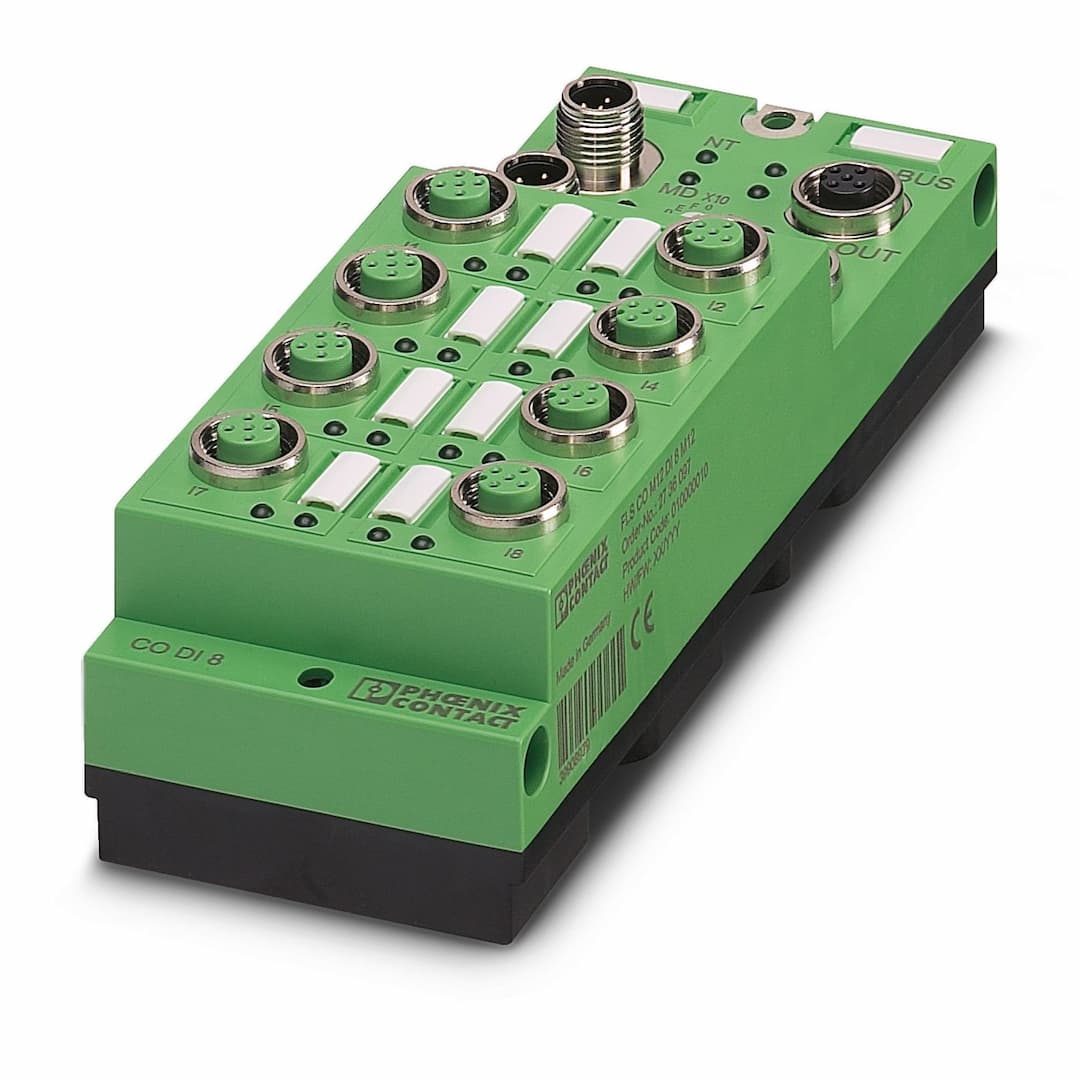

Product Model
FLS CO M12 DI 8 M12
Selling Points
- 1The device features 8 digital inputs and 8 digital outputs, each with a load capacity of 500 mA.
- 2Designed for CANopen, ensuring seamless integration with CANopen networks.
- 3Utilizes fast M12 connection technology for efficient and reliable connections.
- 4Operates on a 24 V DC input voltage, suitable for various industrial applications.
- 5A compact, stand-alone device perfect for distributed I/O needs in industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 161 mm |
Depth | 44.5 mm | Drill hole spacing | 151 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | 2 M12 connectors, A-coded |
Number of positions | 5 | Transmission speed | 10, 20, 50, 125, 250, 500, 1000 kBit/s (Automatic baud rate detection) |
Transmission physics | Copper cable with optional power supply in acc. with CAN standard | Address area assignment | 1 ... 126, adjustable |
Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
Input address area | 8 bit | Output address area | 0 bit |
Register length | 8 bit | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 |
Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Filter time | 3 ms | Protective circuit | Reverse polarity protection |
Product type | I/O component | Product family | Fieldline |
Type | Block design | No. of channels | 8 |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 65 mA
max. 100 mA | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 5 mA (plus sensor current)
max. 700 mA |
Connection method | M12 connector (A-coded) | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
