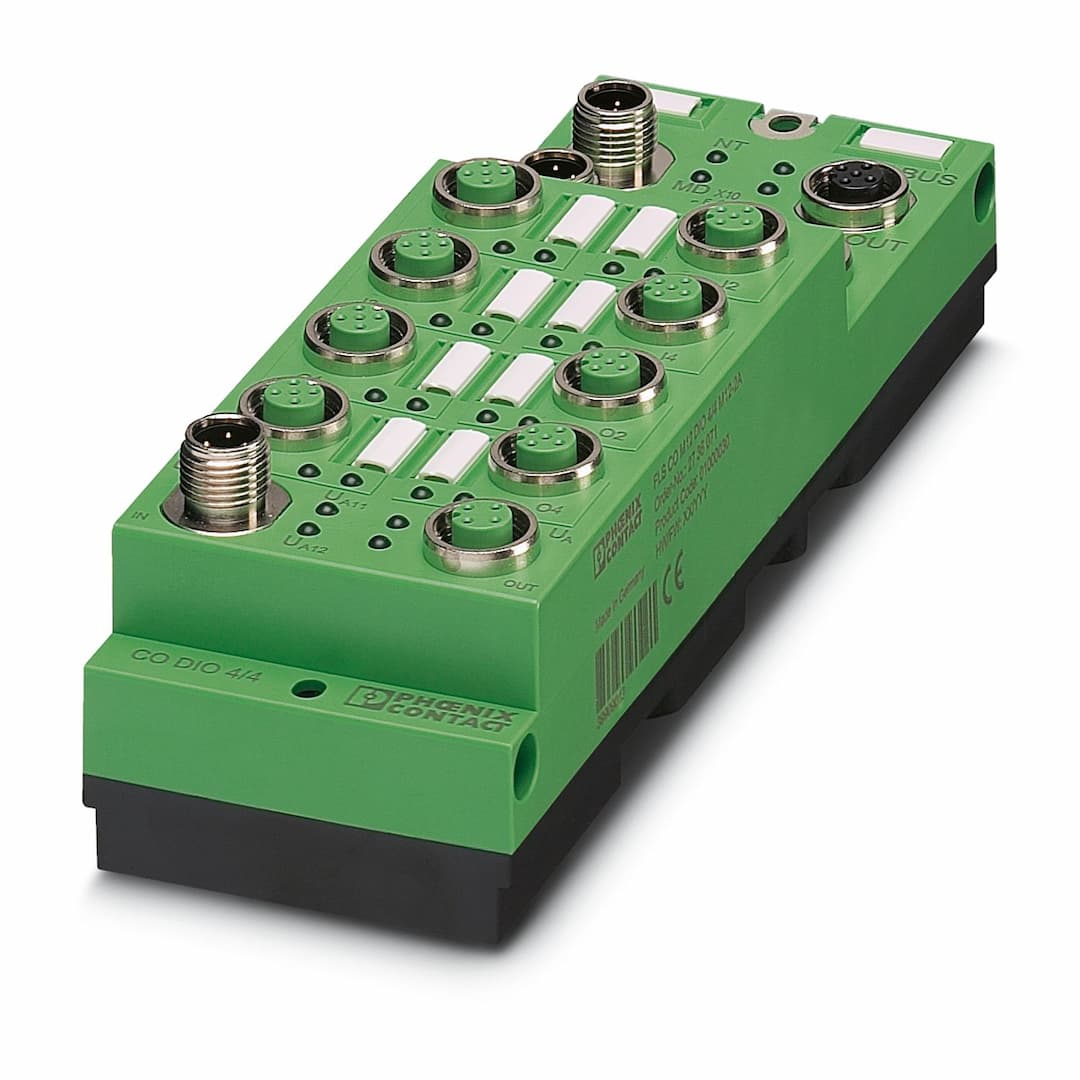

Product Model
FLS CO M12 DIO 8/8 M12
Selling Points
- 1High-quality industrial automation product designed to enhance connectivity and performance.
- 2M12 connection technology for fast and reliable connections.
- 324 V DC supply protection against short circuits and overloads.
- 48 digital inputs and 8 digital outputs with a load capacity of 500 mA each.
- 5Durable and reliable for long-term use in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 178 mm |
Depth | 49.3 mm | Drill hole spacing | 168 mm |
Connection method | 2 M12 connectors, A-coded | Number of positions | 5 |
Transmission speed | 10, 20, 50, 125, 250, 500, 1000 kBit/s (Automatic baud rate detection) | Transmission physics | Copper cable with optional power supply in acc. with CAN standard |
Address area assignment | 1 ... 126, adjustable | Number of local bus devices that can be connected | 0 |
Number of devices with parameter channel | 0 | Input address area | 8 bit |
Output address area | 8 bit | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 |
Connection method | M12 connector, double occupancy | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Filter time | 3 ms | Protective circuit | Reverse polarity protection |
Output name | Digital outputs | Connection method | M12 connector, double occupancy |
Connection technology | 2-, 3-conductor | Number of outputs | 8 |
Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Product type | I/O component |
Product family | Fieldline | Type | Block design |
No. of channels | 16 | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 60 mA
max. 100 mA |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 10 mA (plus sensor current)
max. 500 mA | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A | Connection method | M12 connector (A-coded) |
Designation | U | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: FE / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min | Connection method | M12 connector |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
