Product Model

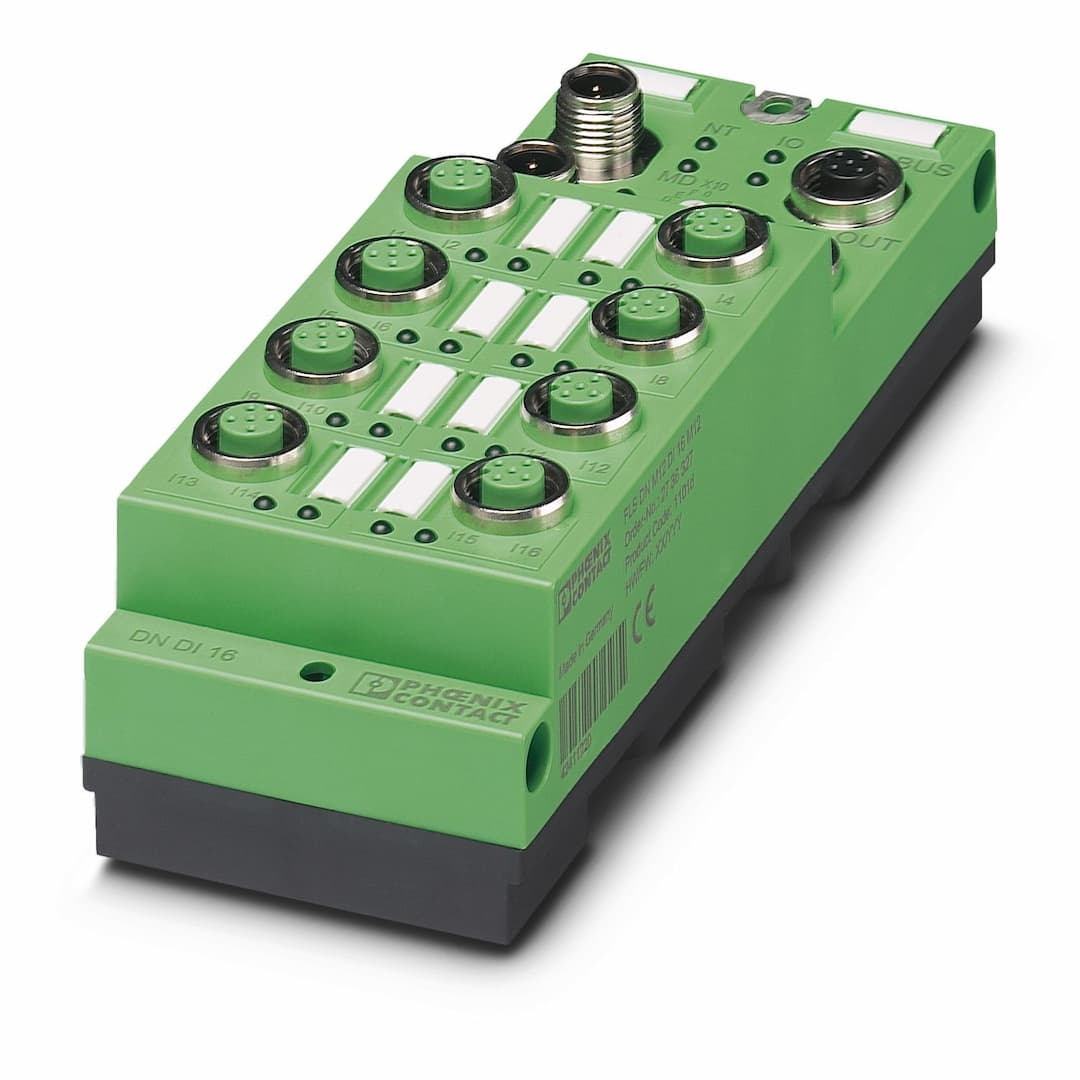

FLS DN M12 DI 16 M12
Selling Points
- 116 Digital Inputs: Equipped with 16 digital inputs for versatile data collection.
- 2Fast M12 Connections: Utilizes SPEEDCON fast locking system for quick and secure connections.
- 3Short-Circuit Protection: Protected against short circuits and overloads for reliable operation.
- 4Wide Operating Range: Operates in ambient temperatures from -25 °C to 60 °C and up to 95% humidity.
- 5Compact Design: Dimensions of 60 mm x 161 mm x 44.5 mm for easy mounting in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 161 mm |
Depth | 44.5 mm | Drill hole spacing | 151 mm |
Connection method | 2 M12 connectors, A-coded | Number of positions | 5 |
Transmission speed | 125 kbps, 250 kbps, 500 kbps (Automatic baud rate detection) | Transmission physics | Copper cable in acc. with DeviceNet™ specification |
Address area assignment | 0 ... 63, can be set | Number of local bus devices that can be connected | 0 |
Number of devices with parameter channel | 0 | Input address area | 16 bit |
Output address area | 0 bit | Register length | 16 bit |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 16 | Connection method | M12 connector, double occupancy |
Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Total sensor current | max. 1200 mA |
Filter time | 1 ms | Protective circuit | Reverse polarity protection |
Product type | I/O component | Product family | Fieldline |
Type | Block design | No. of channels | 16 |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 65 mA
max. 100 mA | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 8 mA (plus sensor current)
max. 1.2 A |
Connection method | M12 connector (A-coded) | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 12 V DC ... 30 V DC (including ripple) |
Test voltage: To I/O | 500 V AC, 50 Hz, 1 min | Connection method | M12 connector |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
