Product Model

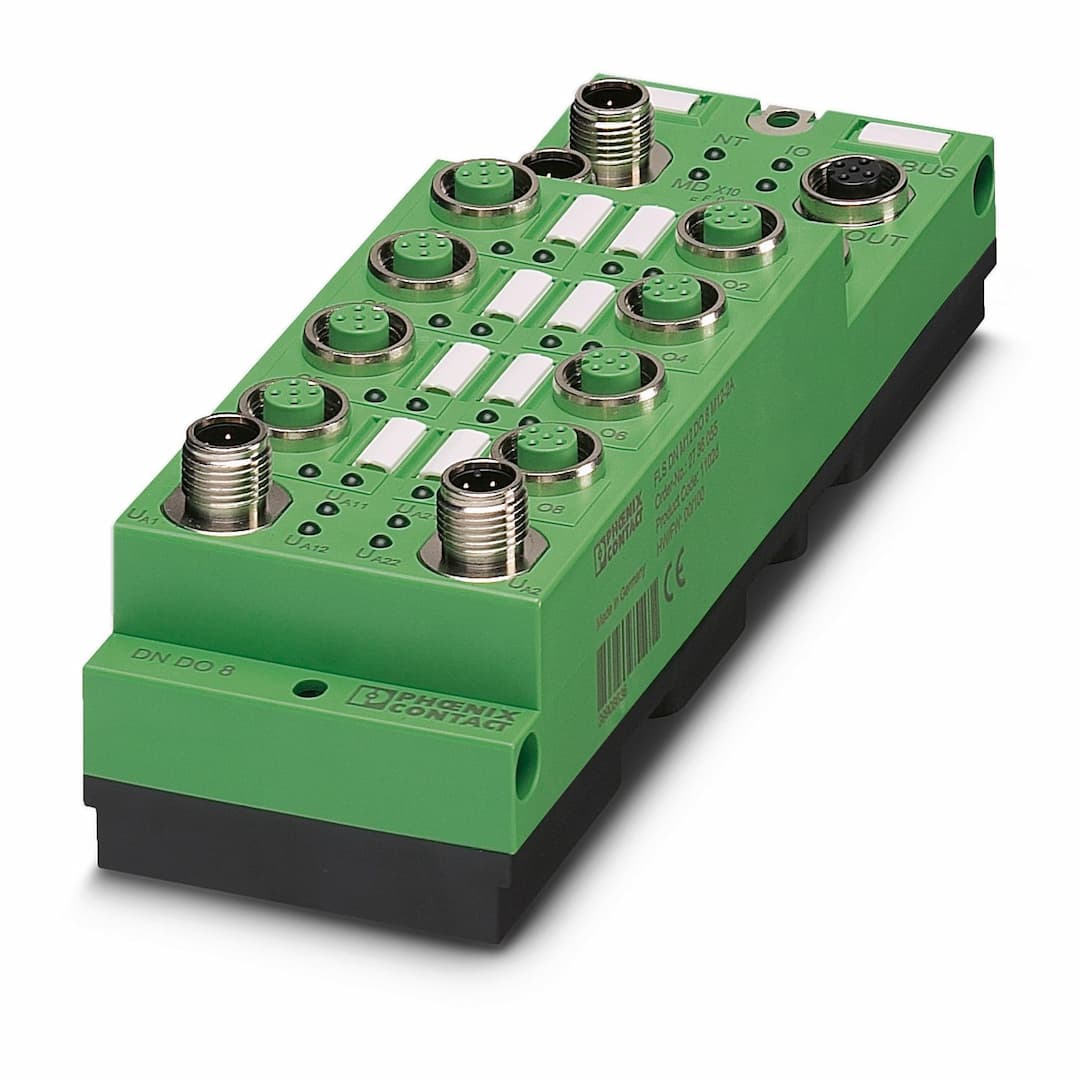

FLS DN M12 DO 8 M12-2A
Selling Points
- 1The device features 8 digital outputs with a load capacity of 2 A each.
- 2M12 connection established using fast connection technology for efficient data transfer.
- 3Compatible with PROFIBUS-DP fieldbus system for seamless integration in industrial networks.
- 4IP65/67 degree of protection ensures durability in harsh industrial environments.
- 5Supports 24 V DC supply voltage with short-circuit protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 178 mm |
Depth | 49.3 mm | Drill hole spacing | 168 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | 2 M12 connectors, A-coded |
Number of positions | 5 | Transmission speed | 125 kbps, 250 kbps, 500 kbps (Automatic baud rate detection) |
Transmission physics | Copper cable in acc. with DeviceNet™ specification | Address area assignment | 0 ... 63, can be set |
Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
Input address area | 0 bit | Output address area | 8 bit |
Register length | 8 bit | Output name | Digital outputs |
Connection method | M12 connector | Connection technology | 2-, 3-conductor |
Number of outputs | 8 | Protective circuit | Short-circuit protection |
Output voltage | 24 V DC | Maximum output current per channel | 2 A |
Product type | I/O component | Product family | Fieldline |
Type | Block design | No. of channels | 8 |
Voltage supply U | 24 V DC | Power supply at U | 4 A |
Current consumption from U | typ. 80 mA
max. 100 mA | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 3.5 mA
max. 700 mA |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A |
Connection method | M12 connector (A-coded) | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 12 V DC ... 30 V DC (including ripple) |
Test voltage: 24 V supply (bus logics) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
