Product Model

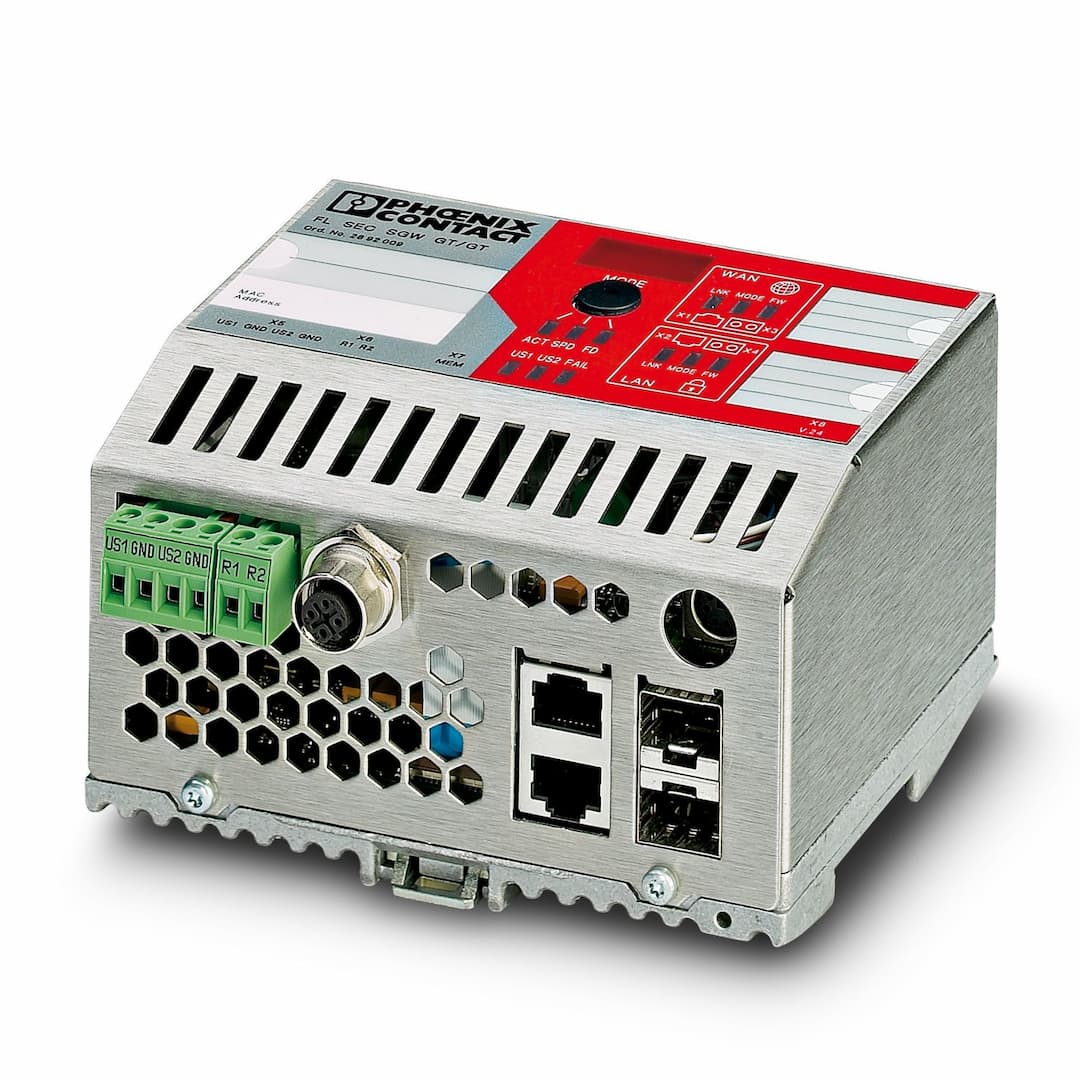

FL SEC SGW GT/GT
Selling Points
- 1Enhanced Security: Features robust security elements for 4 RJ45 network connections, ensuring secure data transmission.
- 2Industrial Grade: Built to withstand harsh ambient conditions with an IP20 rating and operating temperature range of 0°C to 55°C.
- 3Compact Design: Measures 128 mm in width, making it perfect for space-constrained industrial settings.
- 4Easy Installation: Compatible with patch boxes and panels, simplifying integration into existing network infrastructure.
- 5Reliable Performance: Supports Ethernet interfaces with diagnostic LEDs for active link indication, ensuring reliable network operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 128 mm | Height | 110 mm |
Depth | 69 mm | Color | gray aluminum |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 1 |
Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) | Connection method | SFP |
Transmission speed | 1000 Mbps (full duplex) | Transmission physics | Depending on the SFP module |
Transmission length | up to 80 km (Depending on the fiber/SFP module used) | No. of channels | 1 |
Basic functions | Router with intelligent Firewall | Supported browsers | HTTPS support required |
Product type | Security router for the DIN rail | Type | Stand-Alone |
Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent | Filtering | MAC and IP addresses, ports, protocols |
Firewall rules | Configurable stateful inspection firewall (Preconfigured) | Basic functions | Router with intelligent Firewall |
Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 | Network Time Protocol (NTP) client | Client |
Routing | NAT, 1:1-NAT, Port Forwarding | Power consumption | 6.5 W |
Local diagnostics | US1, US2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED | Maximum power dissipation for nominal condition | 6.48 W |
Test section | 500 V DC 1 min | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 32 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 270 mA |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 270 mA (maximum) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock | DIN EN 60068-2-27 |
Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz | Air pressure (operation) | 86 hPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 66 hPa ... 108 kPa (3500 m above sea level) | Free from substances that could impair the application of coating | In acc. with VW specification |
Mounting type | DIN rail mounting | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) 6 kV contact discharge, 8 kV air discharge
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) 10 V/m (80 MHz ... 2000 MHz)
IEC 61000-6-2 IEC 61000-4-4 (burst) 2 kV power line, 1kV data line
IEC 61000-6-2 IEC 61000-4-5 (surge) power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) 3 V (10 kHz ... 150 kHz), 10 V (150 kHz ... 80 MHz) | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Status display | LEDs: US1, US2, Fail, ACT, SPD, FD, Link, Mode, FW |
Specifications may be subject to change without notice
