Product Model

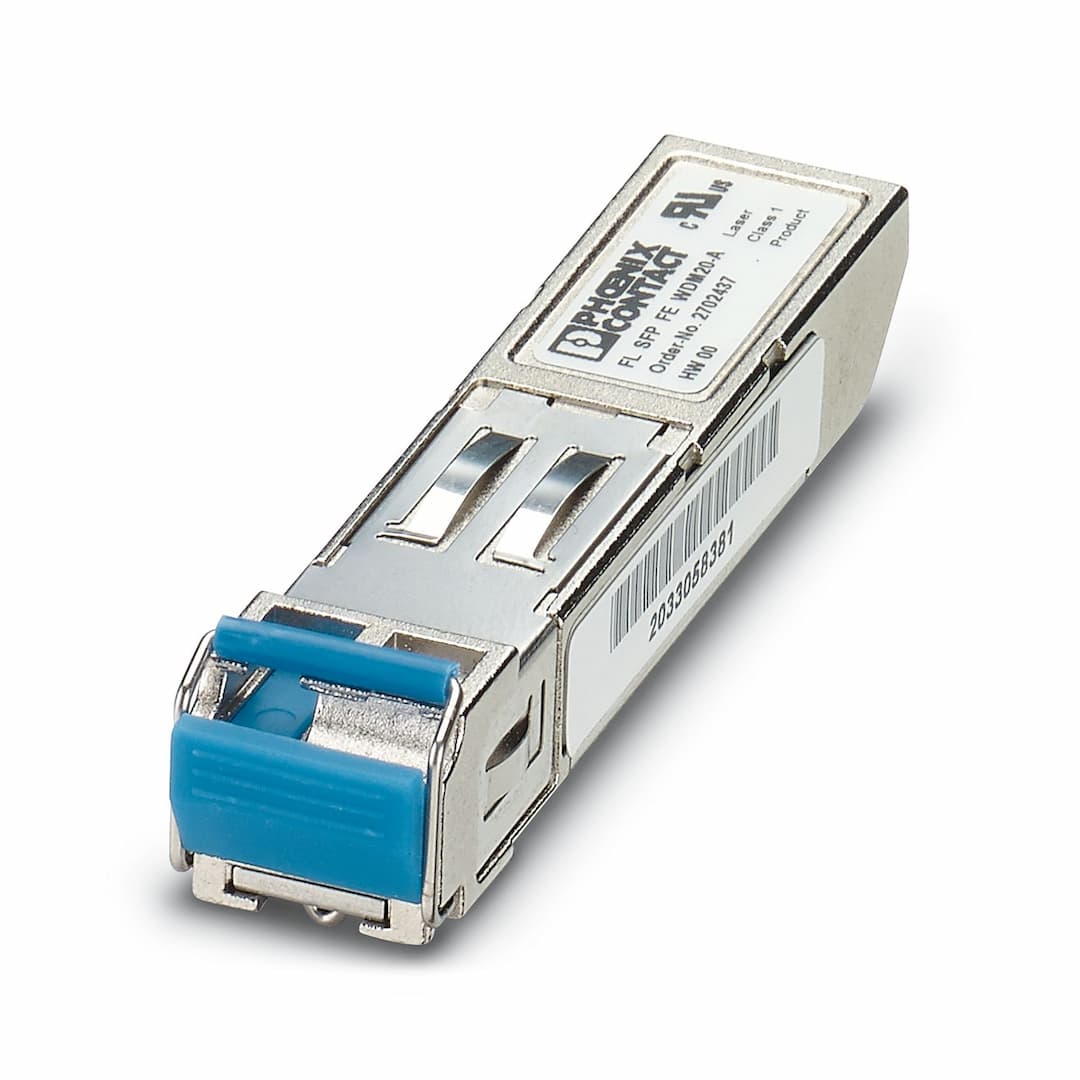

FL SFP FE WDM20-A
Selling Points
- 1Supports data transmission at 100 Mbps.
- 2Transmits up to 20 km on a single fiber.
- 3Operates with wavelengths of 1310 nm (TX) and 1550 nm (RX).
- 4Meets MSA standards for compatibility and reliability.
- 5Offers a Mean Time To Failure (MTTF) of 201 years, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 100 Mbps |
Transmit capacity, minimum | -14 dBm | Transmit capacity, maximum | -8 dBm |
Minimum receiver sensitivity | -32 dBm | Maximum receiver sensitivity | -3 dBm |
Transmission physics | Single-mode fiberglass | Transmission length | 20 km (Fiberglass 9/125) |
Wavelength | 1310 nm (TX)
1550 nm (RX) | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC single mode) | Product type | SFP module |
Type | Factoryline devices with SFP slot | MTTF | 201 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
Format | SFP (Small Form-factor Pluggable) | Status display | via a Factoryline device |
Current consumption | 300 mA | Maximum power dissipation for nominal condition | 1 W |
Transmission medium | FO | Supply voltage | 3.3 V (via Factoryline switch) |
Power supply connection | via SFP slot | Max. current consumption | 300 mA |
Current consumption | 300 mA | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Case temperature | max. 85 °C (Operation) | Standard designation | Laser equipment safety |
Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
