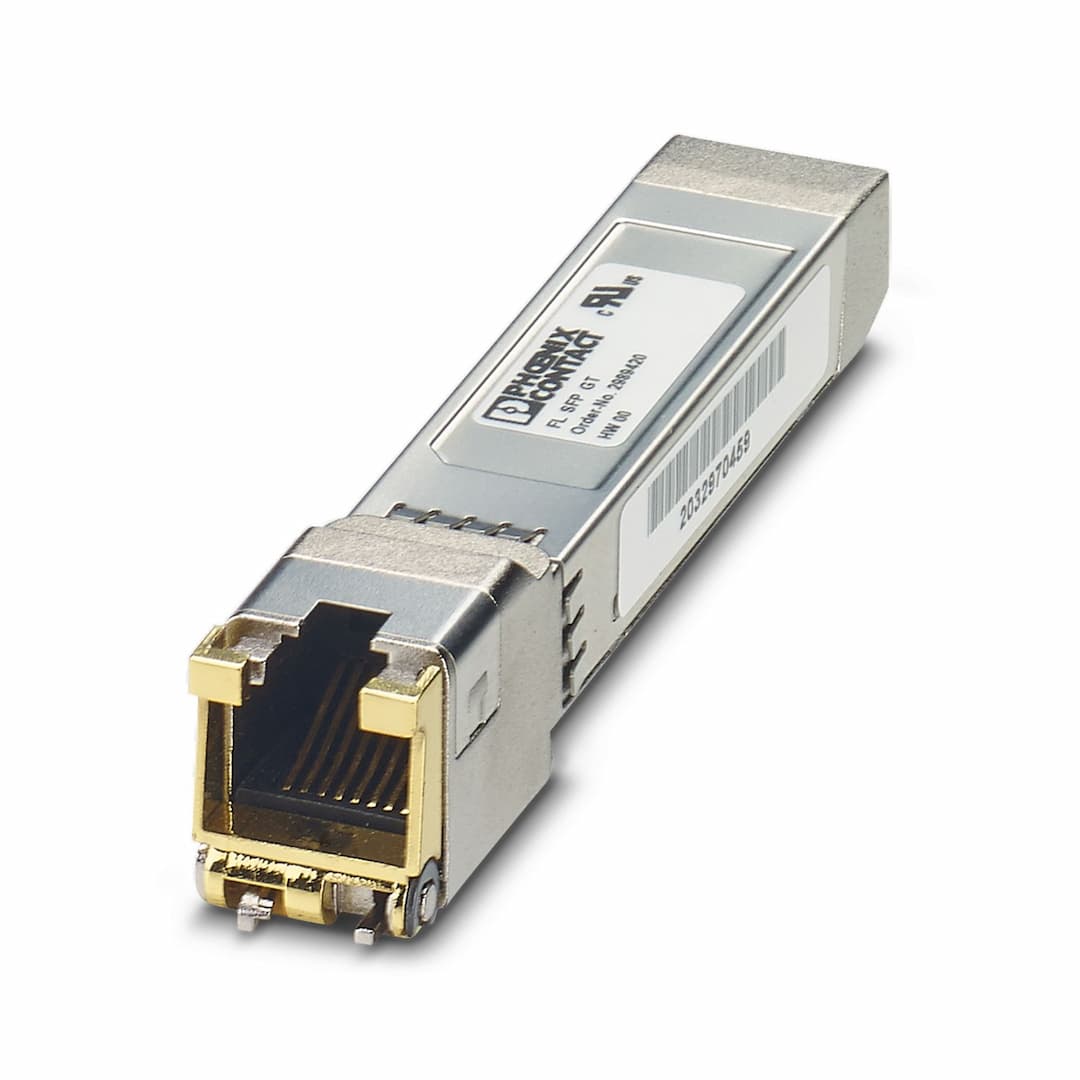

Product Model
FL SFP GT
Selling Points
- 1Supports Gigabit speeds up to 100 meters.
- 2Designed for robust industrial applications.
- 3Ensures stable and secure data transfer.
- 4Lightweight at 0.03kg, easy to integrate into systems.
- 5Backed by a 3-year warranty for added security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | RJ45 | Transmission speed | 1 Gbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | depending on the Factoryline device | No. of channels | 1 (RJ45 port) |
Product type | SFP module | Type | Factoryline devices with SFP slot |
Format | SFP (Small Form-factor Pluggable) | Status display | via a Factoryline device |
Current consumption | 375 mA | Maximum power dissipation for nominal condition | 1.24 W |
Transmission medium | Copper | Supply voltage | 3.3 V (via Factoryline switch) |
Power supply connection | via SFP slot | Max. current consumption | 375 mA |
Current consumption | 375 mA | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 85 °C (non-condensing) | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Specifications may be subject to change without notice
