Product Model

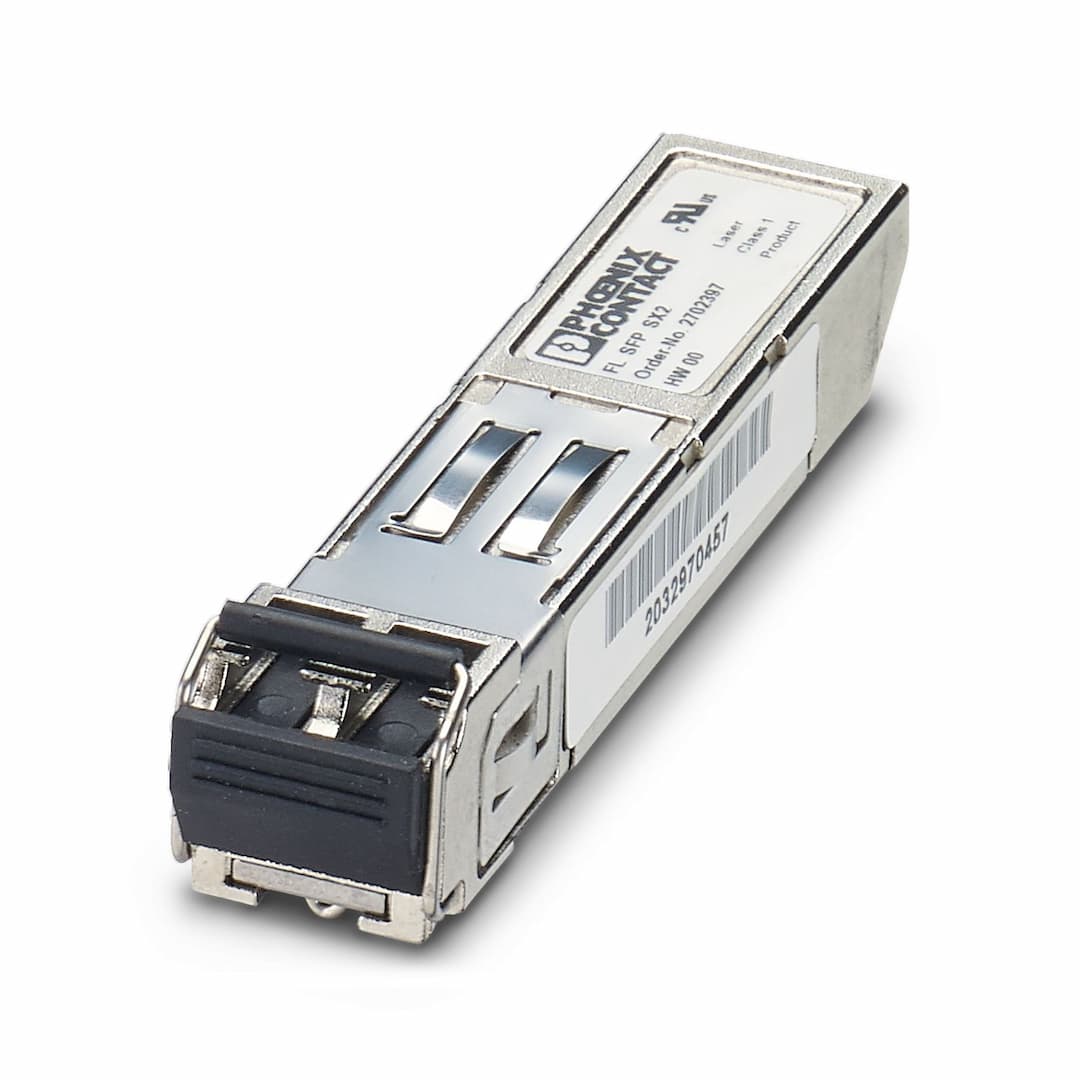

FL SFP SX2
Selling Points
- 1High-speed data transmission: Achieve 1000 Mbps data transfer rates.
- 2Long-distance connectivity: Supports transmission up to 2 km.
- 3Optical clarity: Operates at a wavelength of 1310 nm.
- 4Versatile mounting: Easily inserts into SFP slots on Factoryline devices.
- 5Reliable performance: Meets Telcordia SR-332 standards with an MTTF of 1862 years.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 1 Gbps |
Transmit capacity, minimum | -15 dBm | Transmit capacity, maximum | -1 dBm |
Minimum receiver sensitivity | -23 dBm | Maximum receiver sensitivity | -3 dBm |
Transmission physics | multi-mode fiberglass | Transmission length | 2 km (Fiberglass 50/125)
1 km (Fiberglass 62.5/125) |
Wavelength | 1310 nm | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC multi-mode) | Transmit capacity, minimum | -15 dBm |
Transmit capacity, maximum | -1 dBm | Minimum receiver sensitivity | -3 dBm |
Maximum receiver sensitivity | -23 dBm | Transmission physics | multi-mode fiberglass |
Product type | SFP module | Type | Factoryline devices with SFP slot |
MTTF | 1862 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) | Format | SFP (Small Form-factor Pluggable) |
Article revision | 00 | Status display | via a Factoryline device |
Current consumption | 300 mA | Maximum power dissipation for nominal condition | 1 W |
Transmission medium | FO | Supply voltage | 3.3 V (via Factoryline switch) |
Power supply connection | via SFP slot | Max. current consumption | 300 mA |
Current consumption | 300 mA | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Case temperature | max. 85 °C (Operation) | Standard designation | Laser equipment safety |
Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
