Product Model

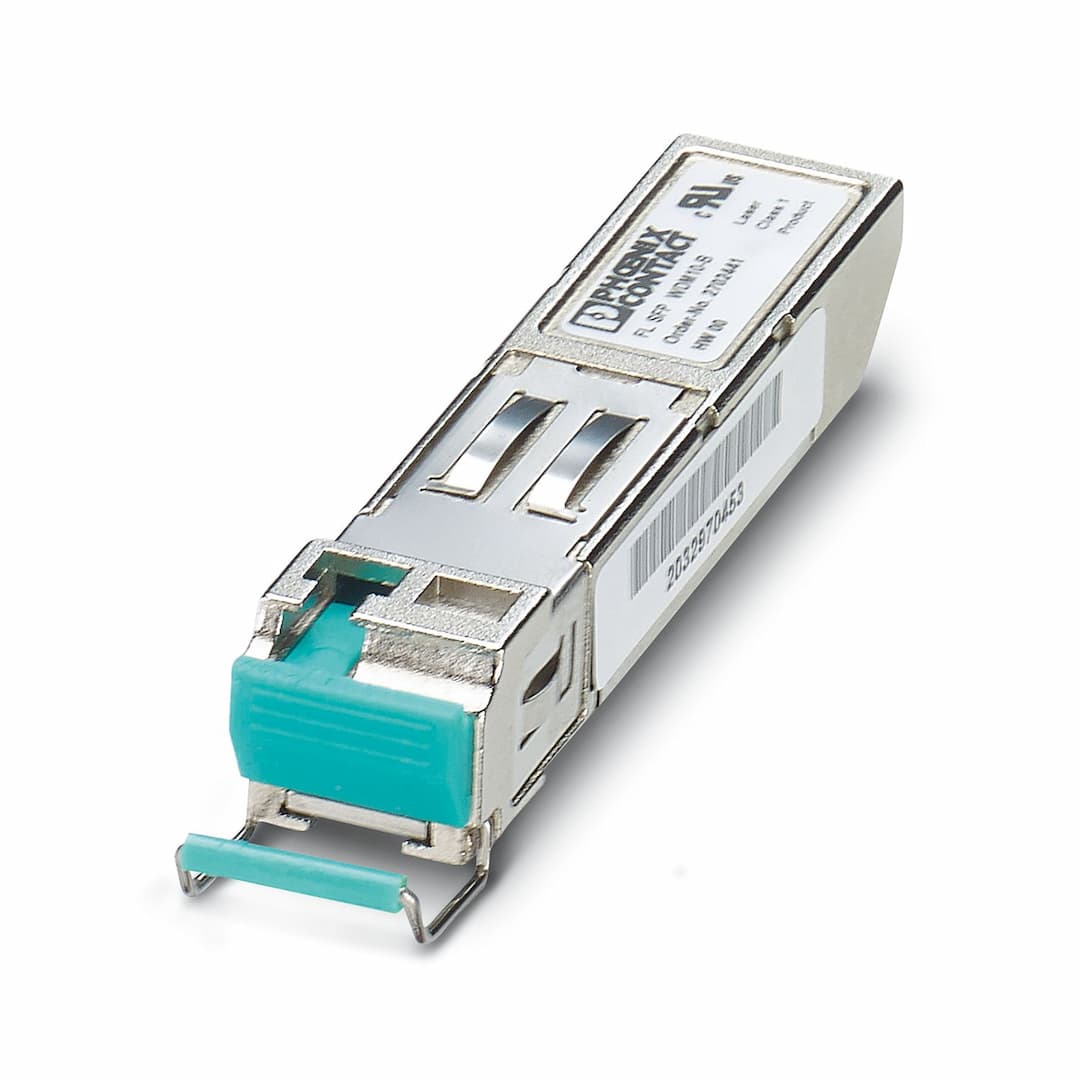

FL SFP WDM10-B
Selling Points
- 1Long-distance transmission: Up to 10 km on a single fiber.
- 2High-speed data transfer: 1 Gbps data transmission speed.
- 3Versatile compatibility: MSA compliant for seamless integration.
- 4Durable construction: Metal housing with IP20 protection.
- 5Reliable operation: MTTF of 200 years under specified conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 1 Gbps |
Transmit capacity, minimum | -9 dBm | Transmit capacity, maximum | -3 dBm |
Minimum receiver sensitivity | -21 dBm | Maximum receiver sensitivity | 0 dBm |
Transmission physics | Single-mode fiberglass | Transmission length | 10 km (Fiberglass 9/125) |
Wavelength | 1550 nm (TX)
1310 nm (RX) | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC single mode) | Transmit capacity, minimum | -9 dBm |
Transmit capacity, maximum | -3 dBm | Minimum receiver sensitivity | 0 dBm |
Maximum receiver sensitivity | -21 dBm | Product type | SFP module |
Type | Factoryline devices with SFP slot | MTTF | 200 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
Format | SFP (Small Form-factor Pluggable) | Status display | via a Factoryline device |
Current consumption | 300 mA | Maximum power dissipation for nominal condition | 1 W |
Transmission medium | FO | Supply voltage | 3.3 V (via Factoryline switch) |
Power supply connection | via SFP slot | Max. current consumption | 300 mA |
Current consumption | 300 mA | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Case temperature | max. 85 °C (Operation) | Standard designation | Laser equipment safety |
Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
