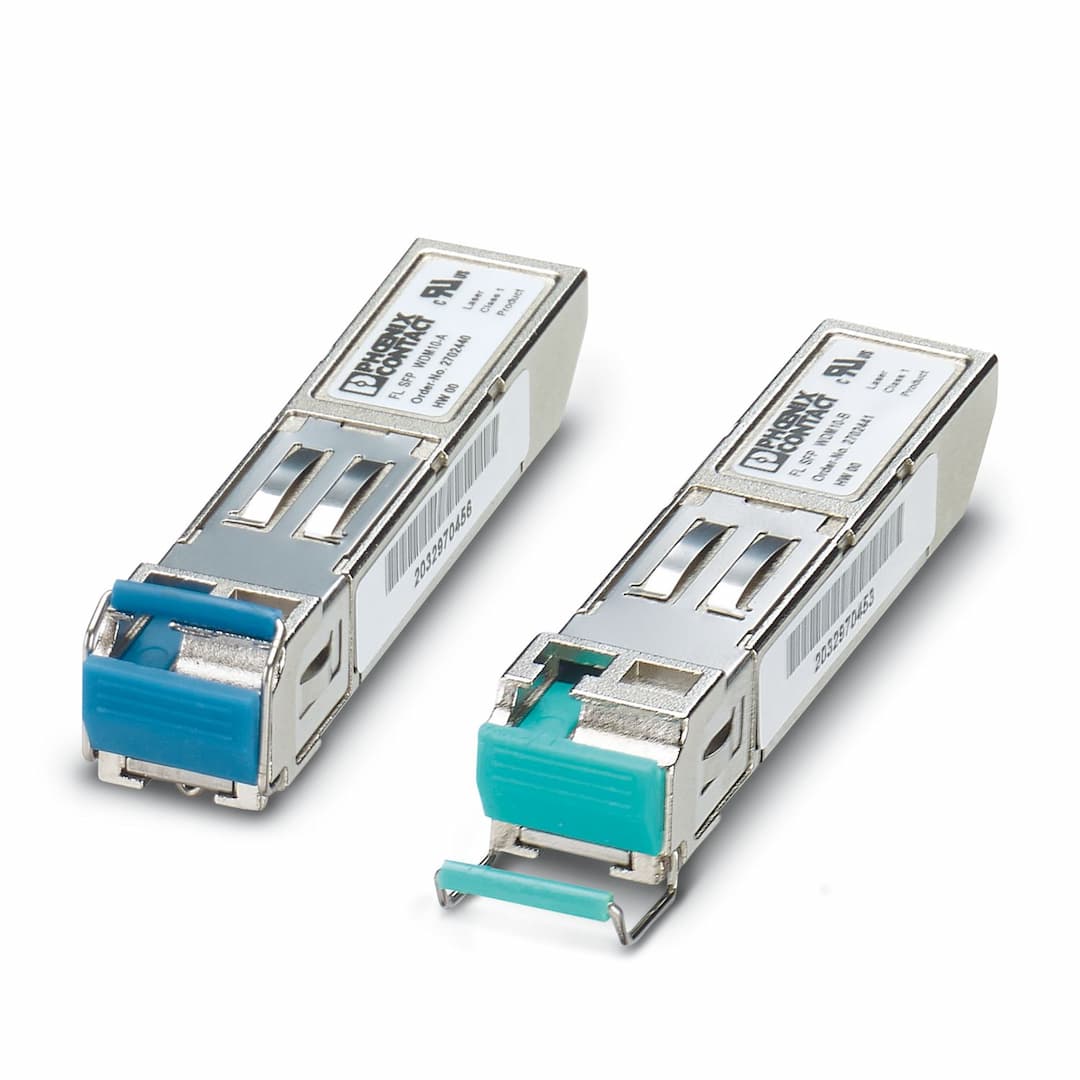

Product Model
FL SFP WDM10-SET
Selling Points
- 1Supports data transmission at 1000 Mbps.
- 2Transmits data up to 10 km on a single fiber.
- 3Operates with wavelengths of 1310/1550 nm.
- 4Dimensions are 13.7 mm x 8.95 mm x 56.5 mm.
- 5Made of metal with a net weight of 64.3 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 1 Gbps |
Transmission physics | Single-mode fiberglass | Transmission length | 10 km (Fiberglass 9/125) |
Wavelength | 1310 nm / 1550 nm (TX)
1550 nm / 1310 nm (RX) | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC single mode) | Transmit capacity, minimum | -9 dBm |
Transmit capacity, maximum | -3 dBm | Minimum receiver sensitivity | 0 dBm |
Maximum receiver sensitivity | -21 dBm | Product type | SFP module |
Type | Factoryline devices with SFP slot | Format | SFP (Small Form-factor Pluggable) |
Status display | via a Factoryline device | Current consumption | 300 mA |
Maximum power dissipation for nominal condition | 1 W | Transmission medium | FO |
Supply voltage | 3.3 V (via Factoryline switch) | Power supply connection | via SFP slot |
Max. current consumption | 300 mA | Current consumption | 300 mA |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) | Case temperature | max. 85 °C (Operation) |
Standard designation | Laser equipment safety | Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
