Product Model

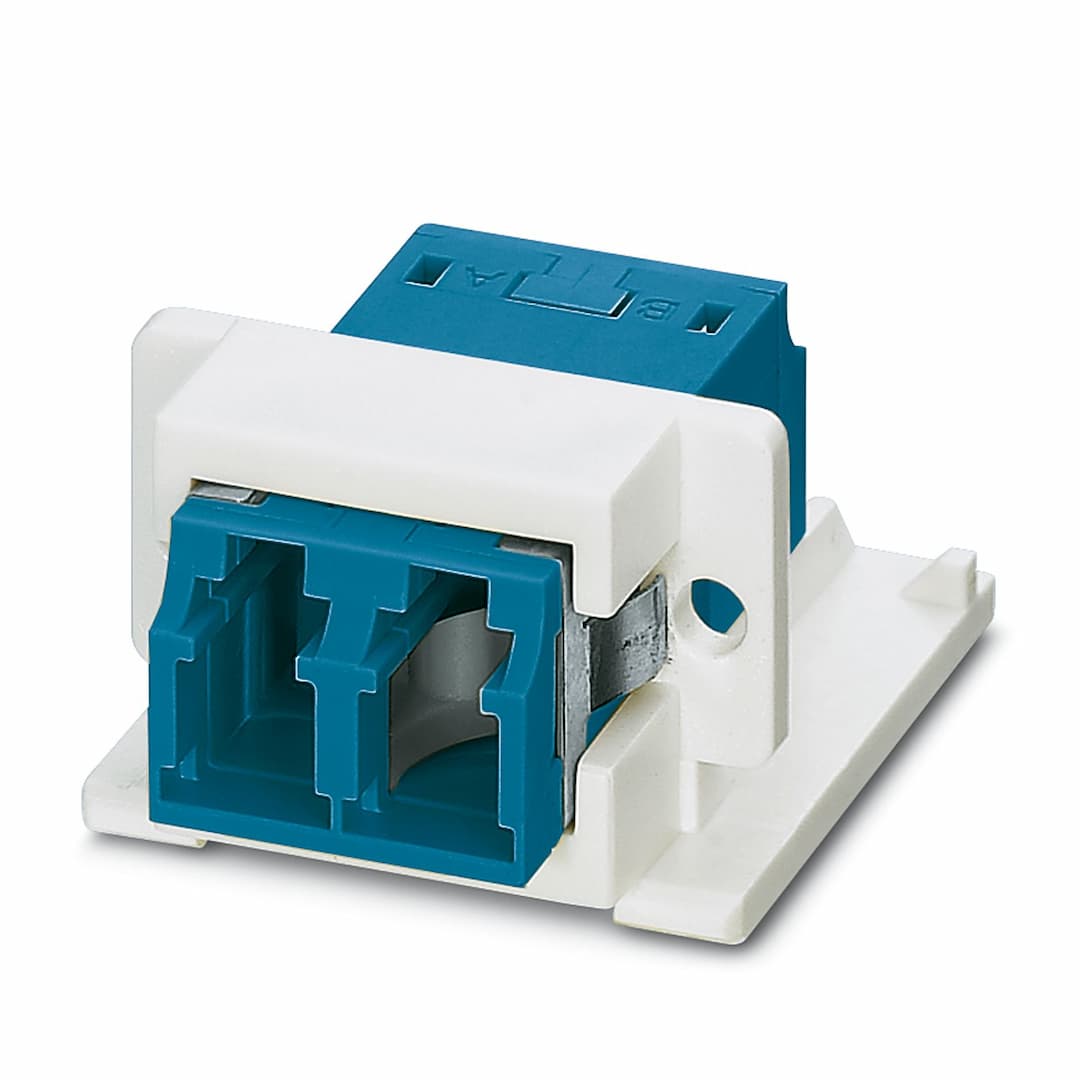

FL SM PATCH COUPLER LC-LC
Selling Points
- 1Supports transmission speeds up to 1 Gbps.
- 2Made with FRNC material for long-lasting performance.
- 3Compatible with LC/LC connectors for straightforward connections.
- 4RoHS compliant and halogen-free, ensuring safe use.
- 5Suitable for installation in cable ducts or control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Data plug | Application | Fiber optic coupling |
Sensor type | Ethernet | Number of positions | 2 |
Connection profile | LC-Duplex | Number of slots | 1 |
Type | Socket | Article revision | 02 |
Connection method | Coupling | Ferrule diameter | 1.25 mm |
Color | blue | Flammability rating according to UL 94 | V0 |
Ferrule material | Zirconia ceramics | Housing material | PBT |
Cable type | Fiberglass | Number of fibers | 2 |
Fiber type | Single-mode fiberglass | Attenuation | ≤ 0.2 dB |
Insertion/withdrawal cycles | ≥ 500 | Degree of protection | IP20
IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (assembly) | -5 °C ... 50 °C | Ambient temperature (installation) | -40 °C ... 85 °C |
Specifications may be subject to change without notice
