Product Model

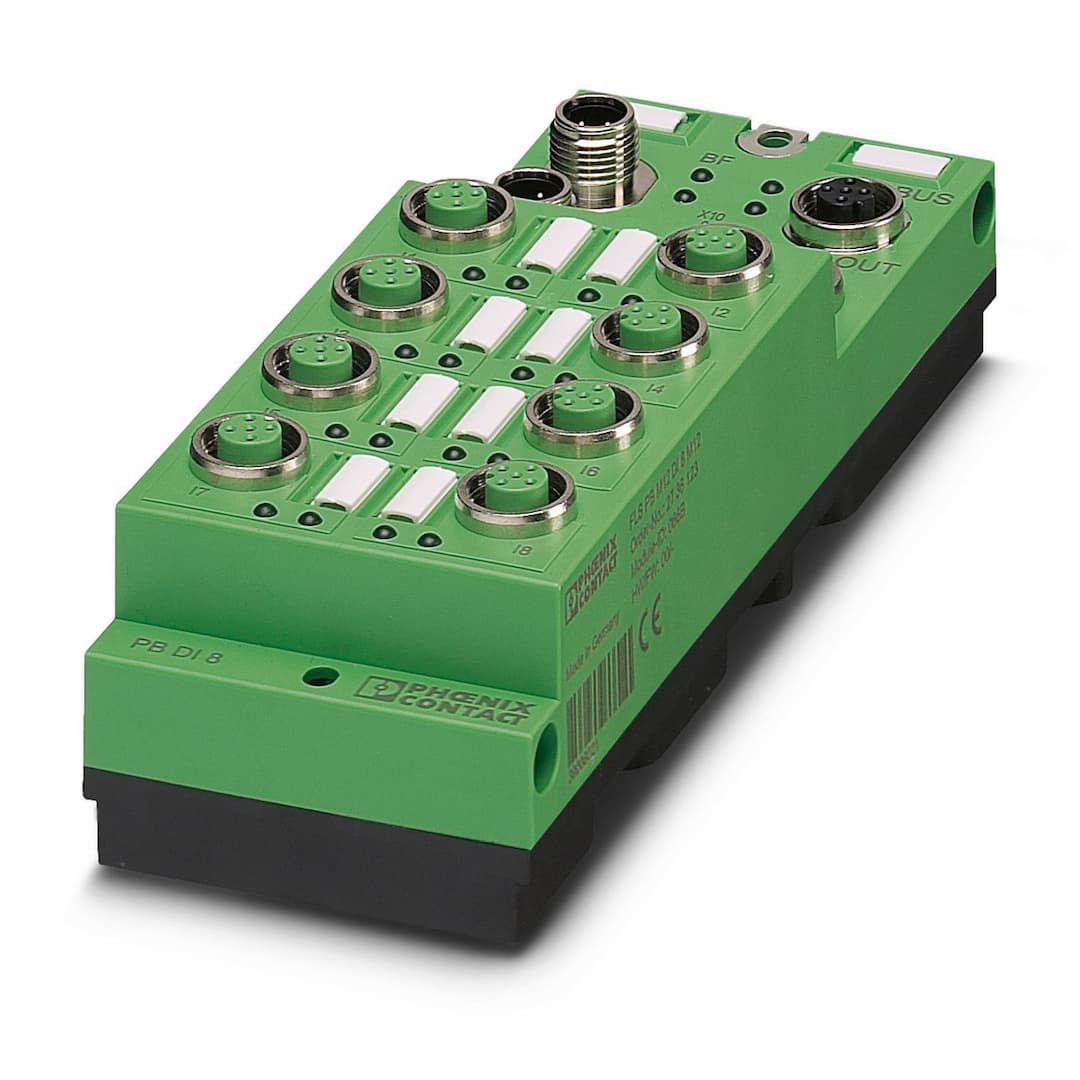

FLS PB M12 DI 8 M12
Selling Points
- 18 Digital Inputs: The device features 8 digital inputs for seamless signal acquisition.
- 2M12 Connectors: Utilizes fast connection technology with M12 connectors for consistent and secure connections.
- 324 V DC Supply: Protected against short circuit and overload with a 24 V DC supply.
- 4Diagnostic Indicators: Equipped with diagnostic and status indicators for easy monitoring.
- 5Compact Design: Compact dimensions (60 mm x 161 mm x 44.5 mm) with a weight of 310 g, suitable for wall mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 161 mm |
Depth | 44.5 mm | Drill hole spacing | 151 mm |
Connection method | 2x M12 connectors, B-coded | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 9.6 kbps ... 12 Mbps (Automatic baud rate detection) |
Transmission physics | PROFIBUS-DP-compliant copper cable | Address area assignment | 1 ... 99, can be set |
Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
ID code (hex) | 066B | Input address area | 8 bit |
Output address area | 8 bit | Register length | 8 bit |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 8 | Connection method | M12 connector |
Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Filter time | 3 ms |
Protective circuit | Reverse polarity protection | Product type | I/O component |
Product family | Fieldline | Type | Block design |
No. of channels | 8 | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 35 mA
max. 100 mA |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 5 mA (plus sensor current)
max. 700 mA | Connection method | M12 connector (A-coded) |
Designation | U | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: 24 V supply (bus logics) / FE | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min | Test voltage: Bus connection / FE | 500 V AC, 50 Hz, 1 min |
Test voltage: Bus connection / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
