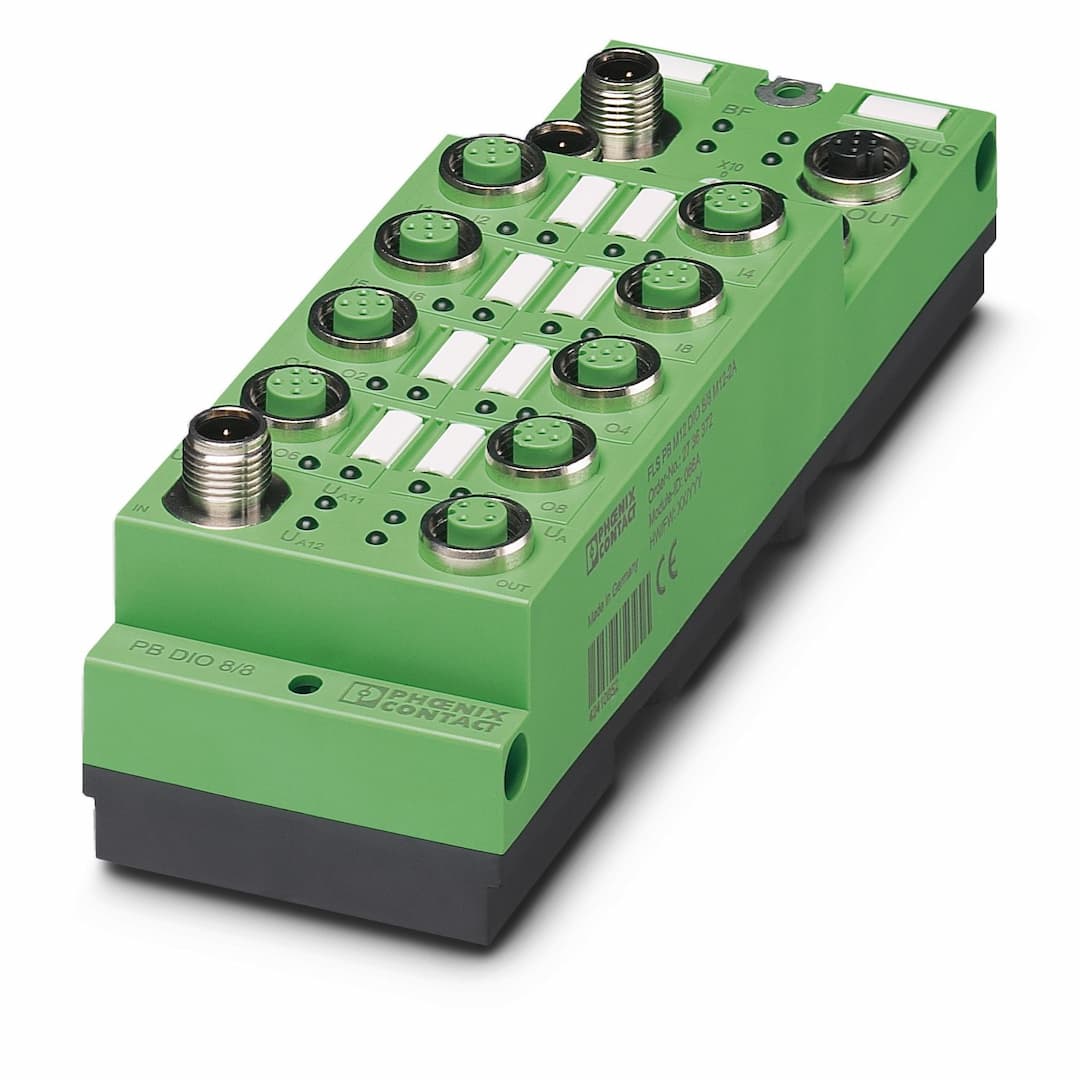

Product Model
FLS PB M12 DIO 8/8 M12
Selling Points
- 1Built for demanding industrial environments.
- 2M12 connections ensure fast and secure data transfer.
- 38 digital inputs and 8 digital outputs with a load capacity of 500 mA.
- 4Stand-alone device for seamless PROFIBUS integration.
- 5Robust construction for long-lasting performance in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 178 mm |
Depth | 49.3 mm | Drill hole spacing | 168 mm |
Connection method | 2x M12 connectors, B-coded | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 9.6 kbps ... 12 Mbps (Automatic baud rate detection) |
Transmission physics | PROFIBUS-DP-compliant copper cable | Address area assignment | 1 ... 99, can be set |
Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
ID code (hex) | 06FD | Input address area | 8 bit |
Output address area | 8 bit | Register length | 8 bit |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 8 | Connection method | M12 connector, double occupancy |
Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Total sensor current | max. 600 mA |
Filter time | 3 ms | Protective circuit | Reverse polarity protection |
Output name | Digital outputs | Connection method | M12 connector, double occupancy |
Connection technology | 2-, 3-conductor | Number of outputs | 8 |
Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Product type | I/O component |
Product family | Fieldline | Type | Block design |
No. of channels | 16 | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 40 mA
max. 100 mA |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 10 mA (plus sensor current)
max. 500 mA | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A | Connection method | M12 connector (A-coded) |
Designation | U | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: To I/O | 500 V AC |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
