Product Model

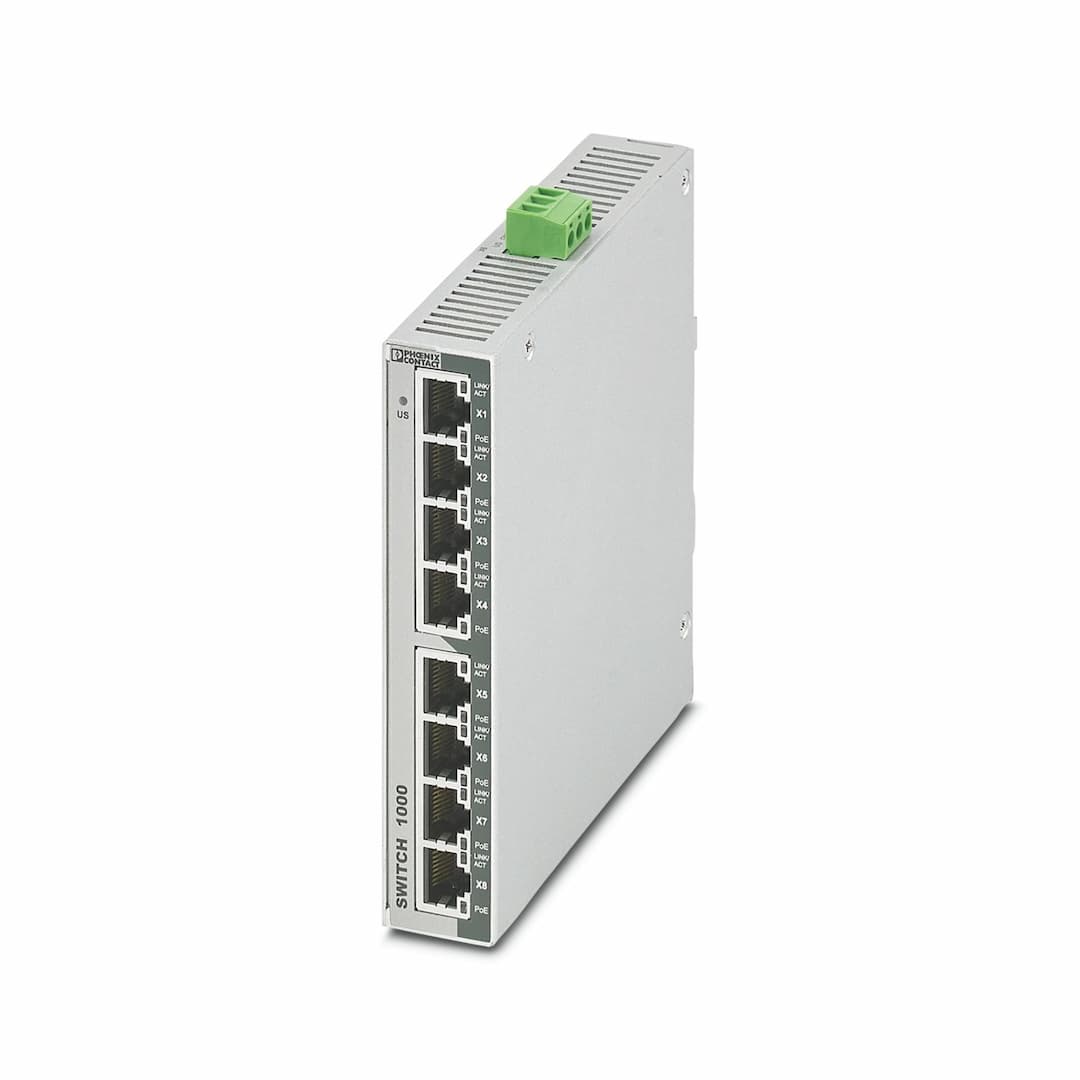

FL SWITCH 1000-8POE-GT
Selling Points
- 1Compliant with IEEE 802.3at for reliable PoE+ functionality
- 2Eight 10/100/1000 Mbps PoE+ ports for versatile connectivity
- 3Total PoE system budget of 120 W for efficient power distribution
- 4Enhanced safety features with additional isolation for SELV and PELV installations
- 5Local diagnostic indicators with LEDs for easy setup and monitoring
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 27 mm | Height | 130 mm |
Depth | 120 mm | Notes on operation | Mode A PoE |
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (Between transmitter / receiver) |
Signal LEDs | LNK/ACT, POE | Connection method | RJ45 |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet RJ45 |
Transmission length | 100 m (Between transmitter / receiver) | Signal LEDs | LNK/ACT, POE |
No. of channels | 8 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged PoE Switches 1000 | Type | Stand-Alone |
MTTF | 49.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 02 |
Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9216 bytes | PROFINET conformance class | Conformance-Class A |
MAC address table | 4k | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9216 bytes |
Maximum power dissipation for nominal condition | 189 W (at 48 V DC) | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC
48 V DC | Supply voltage range | 19 V DC ... 57 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 8.29 A (Maximum, nominal load) | Typical current consumption | 170 mA |
Connection name | Power supply | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Degree of protection | IP20 |
Ambient temperature (operation) | -10 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Altitude | max. 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 57 kPa ... 108 kPa up to 2000 m above mean sea level (up to 4850 m above mean sea level) |
Air pressure (storage/transport) | 57 kPa ... 108 kPa up to 2000 m above mean sea level (up to 4850 m above mean sea level) | Conformance | CE-compliant |
UL, USA / Canada | UL 61010-1, UL 61010-2-201 | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9216 bytes |
Status display | LEDs: U |
Specifications may be subject to change without notice
