Product Model

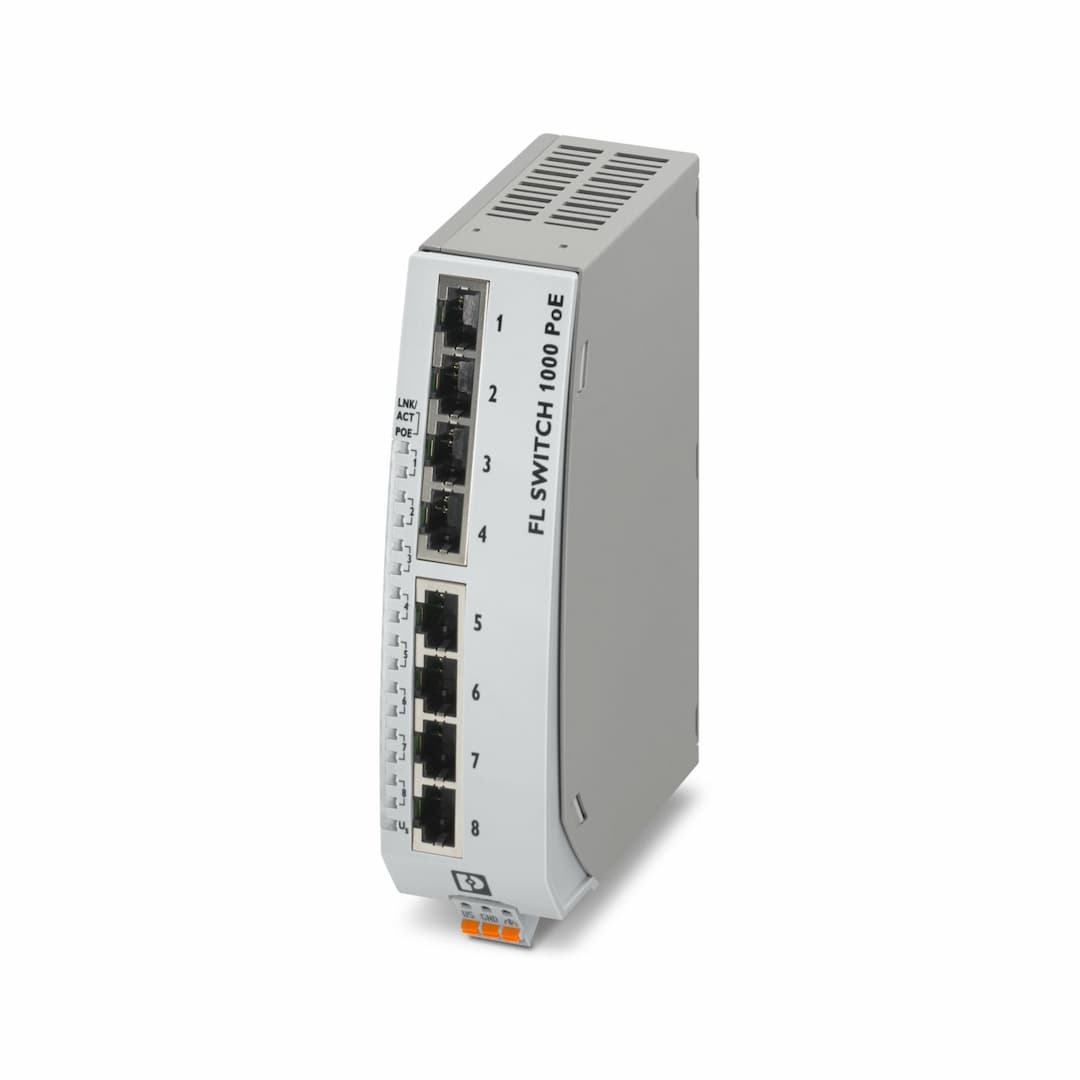

FL SWITCH 1000N-8POE
Selling Points
- 1Polycarbonate fiber reinforced housing ensures long-lasting performance in demanding environments.
- 2Standard DIN rail mounting for streamlined setup in control panels.
- 3Reliable Push-in spring connection provides secure and stable connectivity.
- 4Supports transmission speed of 10/100 Mbps for efficient data communication across networks.
- 5Suitable for various industrial settings with a transmission length of up to 100 m.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 140.4 mm |
Depth | 92.4 mm | Notes on operation | Mode A PoE |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 |
Mounting type | DIN rail mounting | Number of interfaces | 8 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps (full duplex) | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status, PoE |
No. of channels | 8 (RJ45 ports) | Connection method | RJ45 |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet RJ45 |
Transmission length | 100 m (Between transmitter / receiver) | Signal LEDs | LNK/ACT, POE |
No. of channels | 8 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged PoE Switches 1000 | Type | Stand-Alone |
MTTF | 58 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
521.3 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
583.5 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 00 |
Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode | MAC address table | 2k |
Status and diagnostic indicators | LEDs: U | Additional functions | 100 BASE-TX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) |
Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode | Maximum power dissipation for nominal condition | 136 W (at 48 V DC) |
Transmission medium | Copper | Supply voltage (DC) | 24 V |
Supply voltage range | 20 V DC ... 57 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 7 A (at 20 V DC) |
Typical current consumption | 95 mA (at 24 V DC) | Connection name | Power supply |
pluggable | yes | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | Stripping length | 10 mm |
Degree of protection | IP30 | Ambient temperature (operation) | -10 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m (maximum) |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Conformance | CE-compliant | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4:2007 + A1:2011 | Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
