Product Model

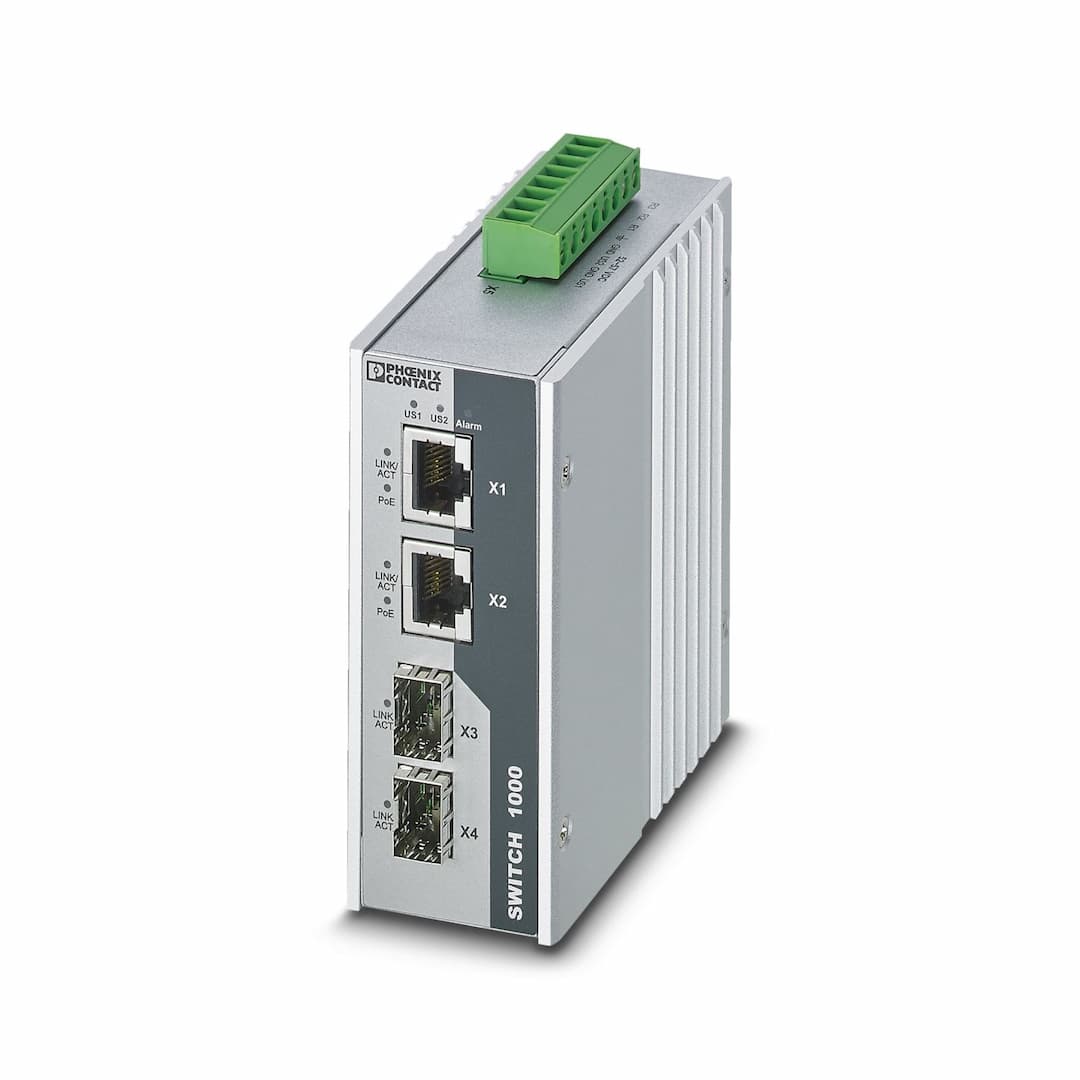

FL SWITCH 1000T-2POE-GT-2SFP
Selling Points
- 1Ensures continuous network operation with dual power inputs.
- 2Operates from -40°C to +75°C, ideal for harsh industrial environments.
- 3Automatically adjusts to 10/100/1000 Mbps speeds for optimal performance.
- 4Provides real-time status of PoE ports for easy monitoring.
- 5Supports both PoE+ and standard PoE devices seamlessly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42.8 mm | Height | 100 mm |
Depth | 101 mm | Notes on operation | Designed to function with all 48 V DC QUINT and TRIO power supplies. |
Notes on operation | Mode A PoE | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Mounting type | DIN rail mounting |
Connection method | SFP | Transmission speed | 100/1000 Mbps (full duplex) |
Transmission physics | Depending on the SFP module | Transmission length | up to 80 km (Depending on the fiber/SFP module used) |
No. of channels | 2 (SFP ports) | Number of interfaces | 2 |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (Between transmitter / receiver) |
Signal LEDs | LNK/ACT, POE | No. of channels | 2 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged PoE Switches 1000 |
Type | Stand-Alone | MTTF | 45.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 02 | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact |
Signal contact control voltage | 48 V DC | Signal contact control current | 0.5 A |
Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact | Local diagnostics | US1, US2 Supply voltage Green LED
PoE PoE detection Orange LED
LNK/ACT Link status/data transmission Green/orange LED
Alarm Power failure at US1 or US2/Link failure |
Maximum power dissipation for nominal condition | 61.6 W (at 55V DC) | Supply voltage (DC) | 55 V DC (redundant) |
Supply voltage range | 52 V DC ... 57 V DC (>52 V DC for PoE+ recommended) | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Inrush current | 25.7 A (52 V DC for 1950 μs) | Residual ripple | 3.6 V |
Max. current consumption | 1.2 A (Maximum, nominal load) | Typical current consumption | 80 mA (at U |
Signal contact control voltage | 48 V DC | Signal contact control current | 0.5 A |
Connection name | Power supply | pluggable | yes |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP30 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Standards/specifications | EN 50121 for railway applications | Conformance | CE-compliant |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact | Status display | LEDs: U |
Specifications may be subject to change without notice
