Product Model

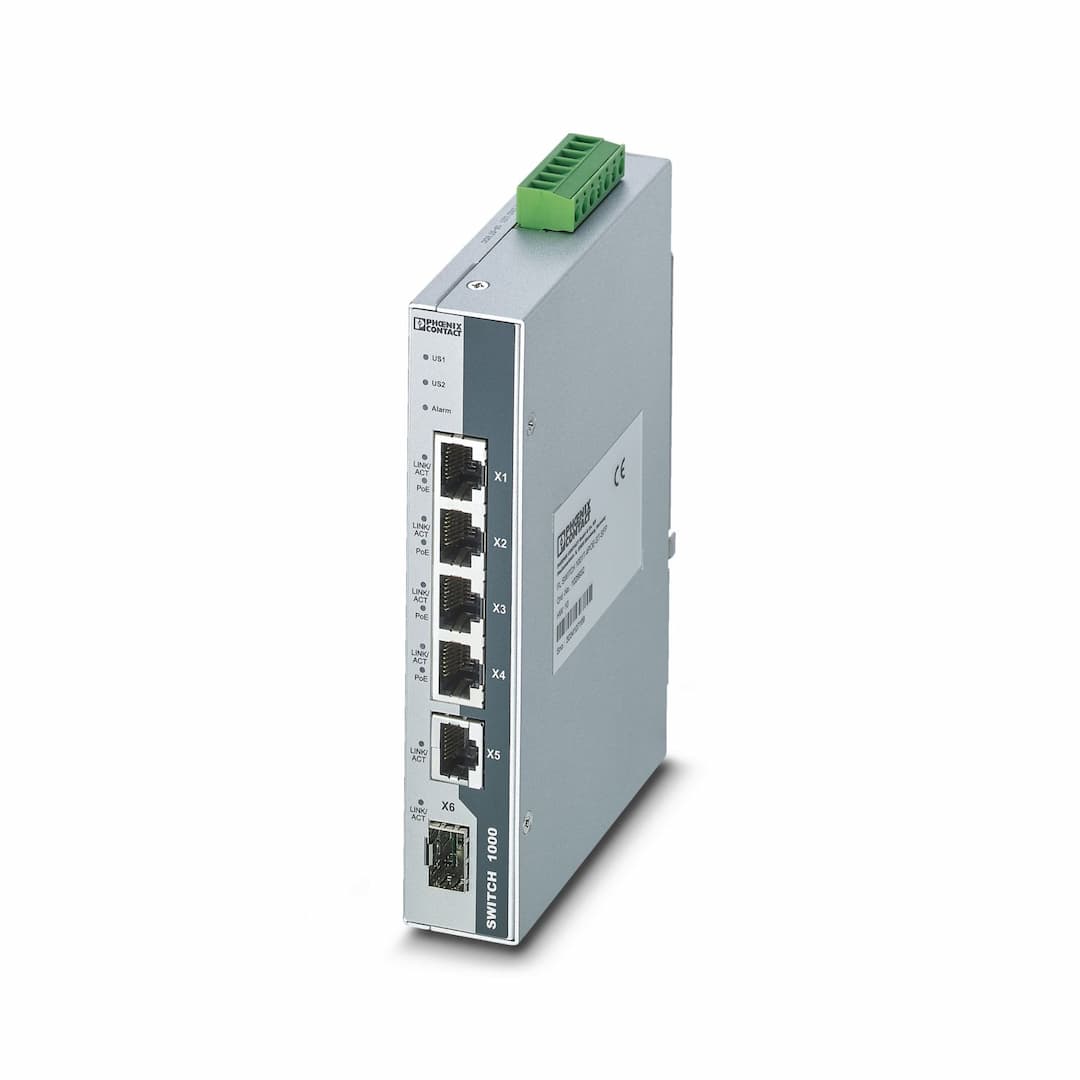

FL SWITCH 1001T-4POE-GT-SFP
Selling Points
- 1Operates from -40°C to +75°C, ensuring reliability in harsh environments.
- 2Supports IEEE 802.3at/802.3af PoE, providing power to devices over Ethernet.
- 3Offers flexibility with SFP module compatibility for longer transmission distances.
- 4Auto-negotiation ensures optimal data transfer speeds.
- 5Simplifies network configuration with automatic cross-linking capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 30 mm | Height | 149 mm |
Depth | 107.8 mm | Notes on operation | Mode A PoE |
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (Between transmitter / receiver) |
Signal LEDs | LNK/ACT, POE | No. of channels | 1 (RJ45 port) |
Number of interfaces | 1 | Connection method | SFP |
Transmission speed | 1000 Mbps (full duplex) | Transmission physics | Depending on the SFP module |
Transmission length | up to 80 km (Depending on the fiber/SFP module used) | No. of channels | 1 (SFP port) |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (Between transmitter / receiver) |
Signal LEDs | LNK/ACT, POE | No. of channels | 4 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged PoE Switches 1000 |
Type | Stand-Alone | MTTF | 66.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 02 | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact |
Signal contact control voltage | 48 V DC | Signal contact control current | 0.5 A |
Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact | Local diagnostics | US1, US2 Supply voltage Green LED
PoE PoE detection Orange LED
LNK/ACT Link status/data transmission Green LED
Alarm Power failure at US1 or US2/Link failure |
Maximum power dissipation for nominal condition | 127 W (at 48 V DC) | Supply voltage (DC) | 24 V DC |
Supply voltage | 48 V DC | Supply voltage range | 18 V DC ... 57 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Inrush current | 33.8 A (24 V DC for 3540 μs) |
Residual ripple | 3.6 V | Max. current consumption | 6.93 A (Maximum, nominal load) |
Typical current consumption | 214 mA (at U | Signal contact control voltage | 48 V DC |
Signal contact control current | 0.5 A | Connection name | Power supply |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP30 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Conformance | CE-compliant | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55032 (emitted interference) Criterion A | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact |
Status display | LEDs: U |
Specifications may be subject to change without notice
