Product Model

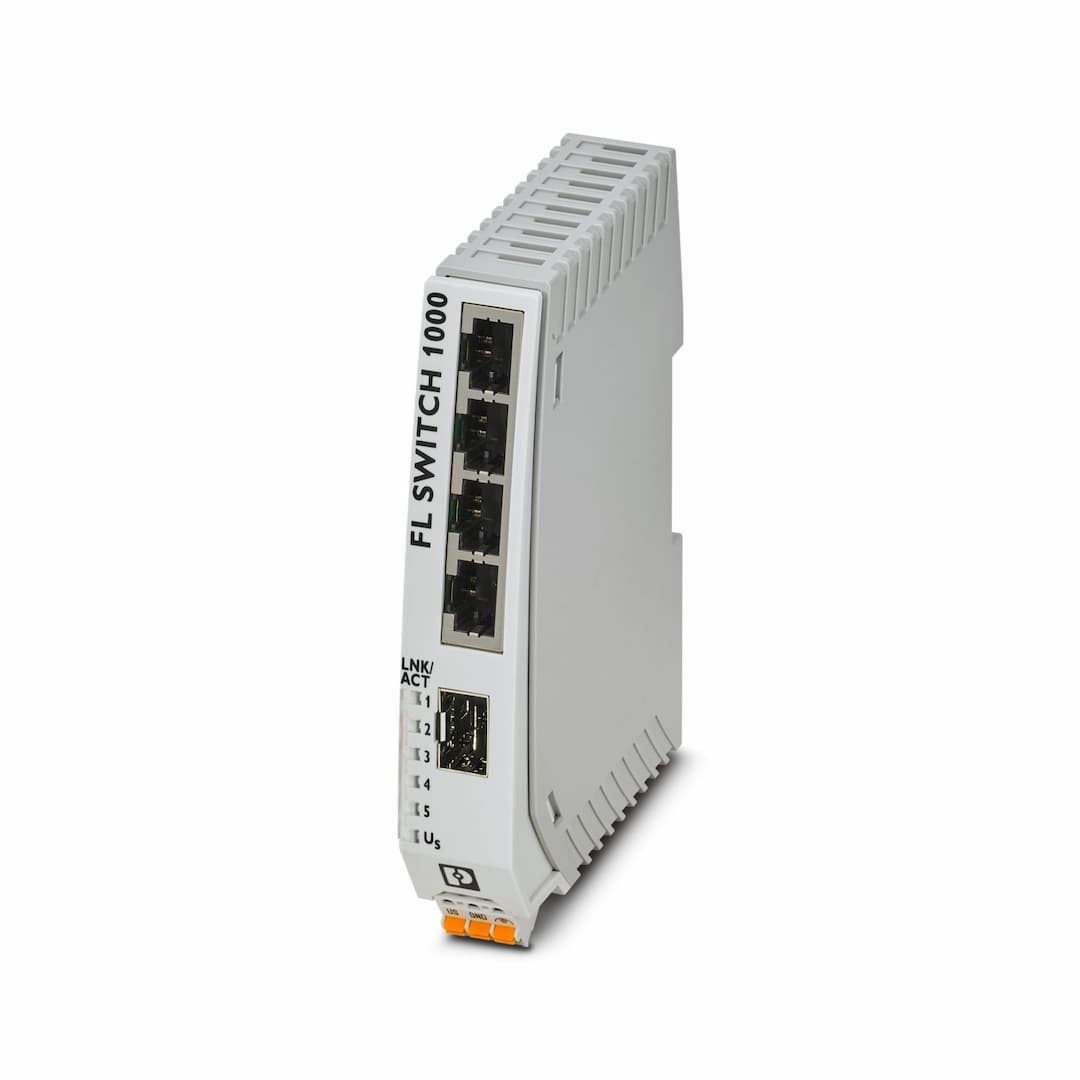

FL SWITCH 1004N-SFX
Selling Points
- 122.5 mm wide, 117 mm high, and 84 mm deep, perfect for narrow spaces.
- 2Polycarbonate fiber-reinforced housing for long-lasting performance.
- 3DIN rail mounting for streamlined setup in control panels.
- 4Push-in spring connection ensures secure and stable connectivity.
- 5100 Mbps full duplex transmission speed with up to 40 km transmission length (depending on the fiber/SFP module used).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22.5 mm | Height | 117 mm |
Depth | 84 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Housing material | Polycarbonate fiber reinforced |
Mounting type | DIN rail mounting | Number of interfaces | 4 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 4 (RJ45 ports) | Number of interfaces | 1 |
Connection method | SFP | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | Depending on the SFP module | Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
Signal LEDs | Data receive, link status | No. of channels | 1 (SFP port) |
Product type | Switch | Product family | Unmanaged Switch 1000 |
MTTF | 138.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1647 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1503.6 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 03 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | PROFINET conformance class | Conformance-Class A |
MAC address table | 2k | Status and diagnostic indicators | LEDs: U |
Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
Maximum power dissipation for nominal condition | 1.935 W (at 24 V DC) | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC | Supply voltage (AC) | 24 V AC (50/60 Hz) |
Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 215 mA (at 9 V DC) |
Typical current consumption | 21 mA (at 24 V DC) | Connection name | Power supply |
pluggable | yes | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | Stripping length | 10 mm |
Degree of protection | IP30 | Ambient temperature (operation) | -10 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m (maximum) |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
UL, USA / Canada | UL 61010-1, UL 61010-2-201 | FCC | Title 47 Part 15 Subpart B:2018 Class A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4:2007 + A1:2011 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Status display | LEDs: U |
