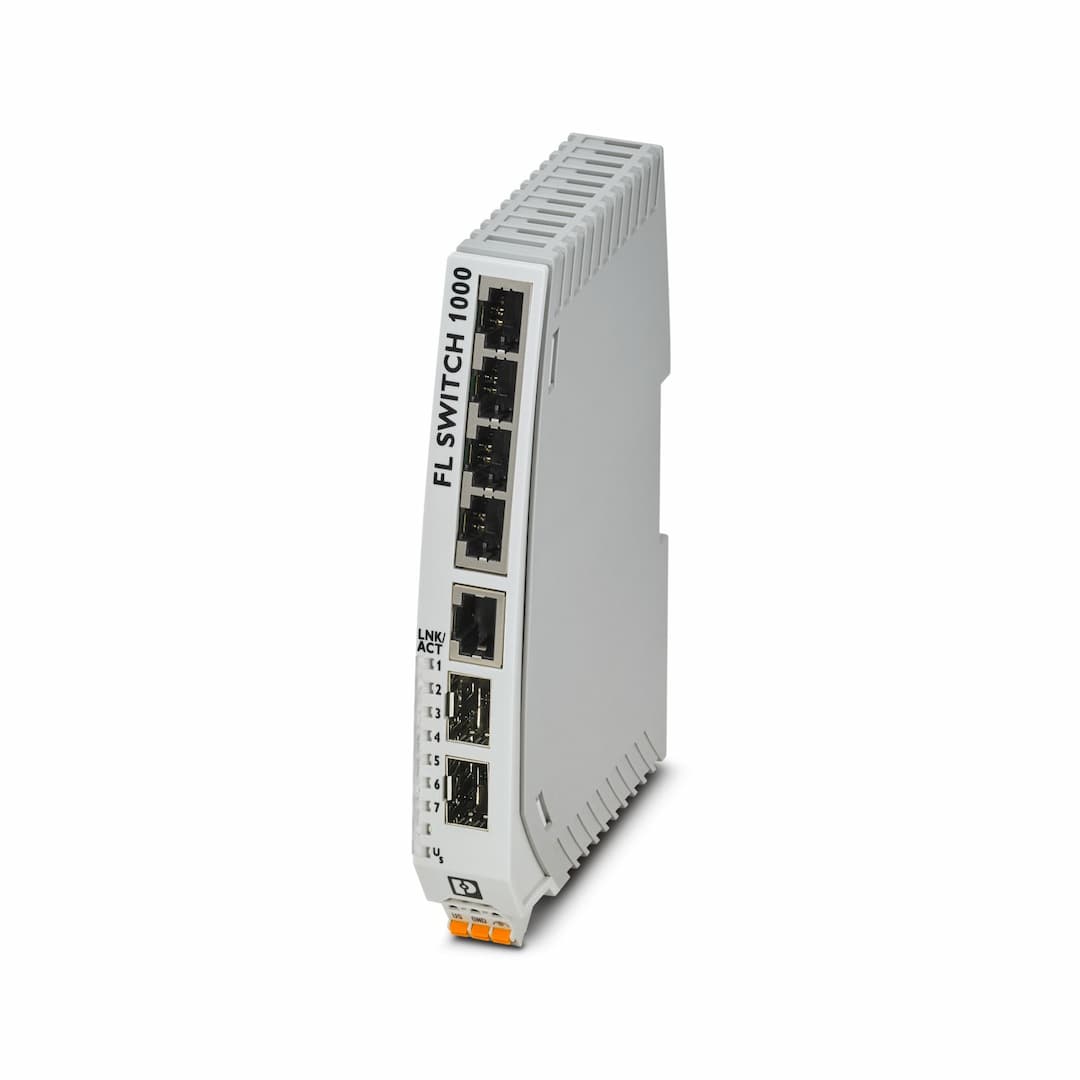

Industrial Ethernet Switch - FL SWITCH 1005N-2SFX

Selling Points

1Auto negotiation and autocrossing detection simplifies installation and setup.
2Local diagnostic indicators with LEDs for easy troubleshooting.
3Supports 10/100 Mbps transmission speed on RJ45 ports and 100 Mbps on SFP ports.
4PROFINET Conformance-Class A ensures reliable communication for automation protocols.
5Energy-efficient Ethernet in accordance with IEEE 802.3az for reduced power consumption.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	22.5 mm	Height	140.4 mm
Depth	92.4 mm	Note on application	Only for industrial use
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Housing material	Polycarbonate fiber reinforced
Mounting type	DIN rail mounting	Number of interfaces	5
Connection method	RJ45	Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100 Mbps	Transmission physics	Ethernet in RJ45 twisted pair
Transmission length	100 m (per segment)	Signal LEDs	Data receive, link status
No. of channels	5 (RJ45 ports)	Number of interfaces	2
Connection method	SFP	Transmission speed	100 Mbps (full duplex)
Transmission physics	Depending on the SFP module	Transmission length	up to 40 km (Depending on the fiber/SFP module used)
Signal LEDs	Data receive, link status	No. of channels	2 (SFP ports)
Product type	Switch	Product family	Unmanaged Switch 1000
MTTF	107.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) 1346 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) 1294.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))	Article revision	03
Basic functions	Unmanaged switch Autonegotiation Store and Forward switching mode	PROFINET conformance class	Conformance-Class A
MAC address table	2k	Status and diagnostic indicators	LEDs: U
Additional functions	100 BASE-TX/100BASE-FX (IEEE 802.3u) Quality of Service (QoS) prioritization (IEEE 802.1p) Energy-efficient Ethernet (IEEE 802.3az) 10Base-T (IEEE 802.3)	Basic functions	Unmanaged switch Autonegotiation Store and Forward switching mode
Maximum power dissipation for nominal condition	2.79 W (at 24 V DC)	Transmission medium	Copper
Supply voltage (DC)	24 V DC	Supply voltage (AC)	24 V AC (50/60 Hz)
Supply voltage range	9 V DC ... 32 V DC 18 V AC ... 30 V AC (50/60 Hz)	Power supply connection	Via COMBICON, max. conductor cross section 2.5 mm²
Residual ripple	3.6 V	Max. current consumption	310 mA (at 9 V DC)
Typical current consumption	25 mA (at 24 V DC)	Connection name	Power supply
pluggable	yes	Connection method	Push-in spring connection
Conductor cross section, rigid	0.2 mm² ... 2.5 mm²	Conductor cross section, flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²	Stripping length	10 mm
Degree of protection	IP30	Ambient temperature (operation)	-10 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Altitude	2000 m (maximum)
Permissible humidity (operation)	5 % ... 95 % (non-condensing)	Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)
Shock (operation)	30g (EN 60068-2-27)	Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)	79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)	Air pressure (storage/transport)	79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
UL, USA / Canada	UL 61010-1, UL 61010-2-201	FCC	Title 47 Part 15 Subpart B:2018 Class A
Basic functions	Unmanaged switch Autonegotiation Store and Forward switching mode	Status display	LEDs: U
