Product Model

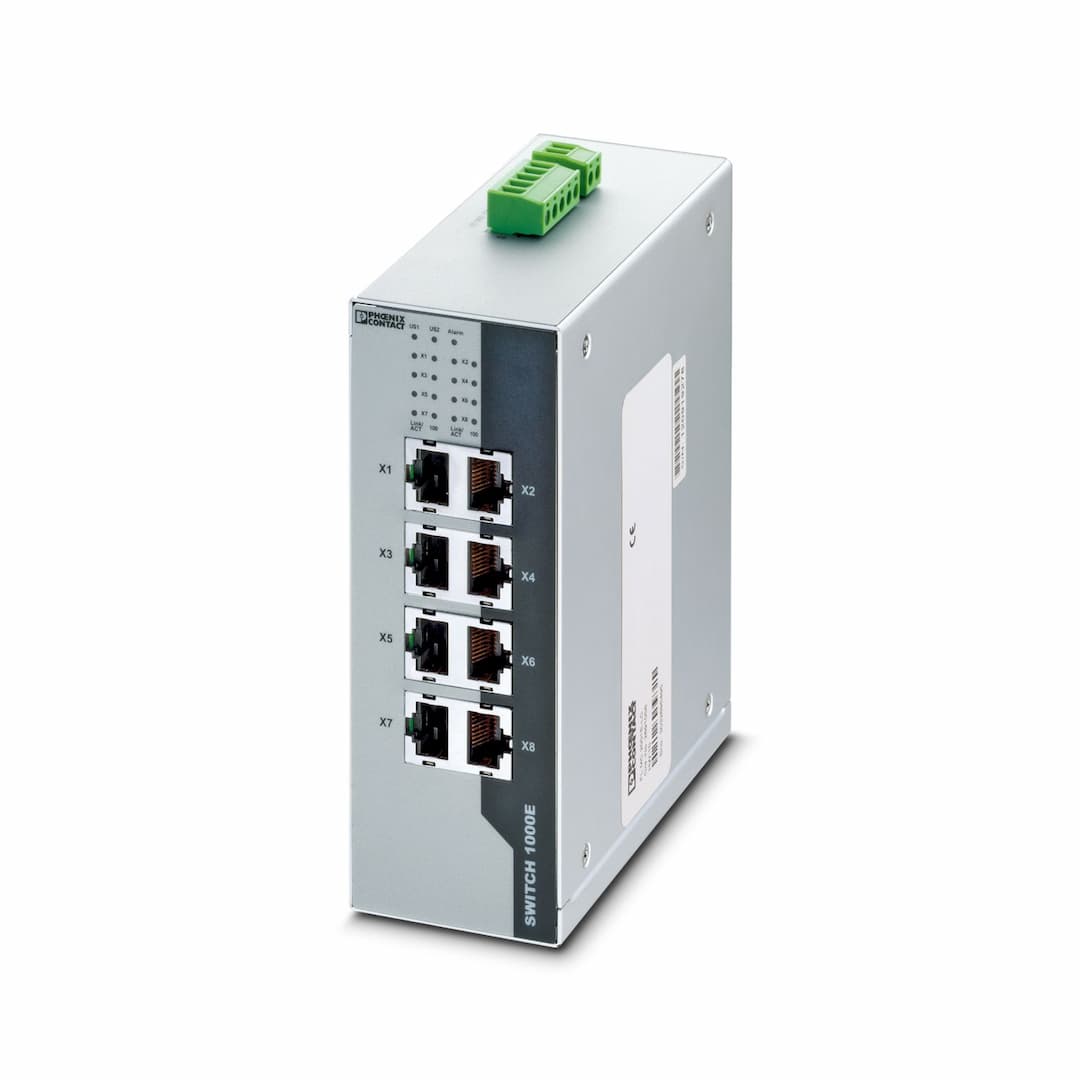

FL SWITCH 1008E
Selling Points
- 18 RJ45 Ports: Ideal for high-density Ethernet connectivity.
- 210/100 Mbps Speed: Automatic detection of data transmission speed for seamless integration.
- 3IEC 61850-3 & IEEE 1613 Compliance: Meets stringent industrial standards for reliability and safety.
- 4Autocrossing Function: Simplifies network setup with automatic crossover detection.
- 5DIN Rail Mounting: Convenient and space-efficient installation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54.4 mm | Height | 146.4 mm |
Depth | 125 mm | Housing material | Aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m |
No. of channels | 8 (RJ45 ports) | Data flow control/protocols | IEC 61850-3, IEEE 1613 |
Product type | Switch | Product family | Unmanaged Switch 1000 |
Type | Block design | MTTF | 86.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 05 | Protection class | III (VDE 0106, IEC 60536) |
Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact. Meets IEC 61850-3 and IEEE 1613 standards | Signal contact control voltage | 24 V DC |
Signal contact control current | 100 mA | MAC address table | 2k |
Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact. Meets IEC 61850-3 and IEEE 1613 standards | Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Green LED
Alarm Power failure at US1 or US2/Link failure |
Maximum power dissipation for nominal condition | 10.56 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant)
48 V DC | Supply voltage range | 12 V DC ... 57 V DC |
Inrush current | 9.84 A (0.2 ms) | Residual ripple | 3.6 V |
Typical current consumption | 440 mA (at U | Signal contact control voltage | 24 V DC |
Signal contact control current | 100 mA | Connection name | Power supply |
Connection method | COMBICON plug-in screw terminal block | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -45 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 82 kPa ... 108 kPa (up to 1500 m above sea level) |
Standards/specifications | IEC 61850-3
IEEE 1613 | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
IEC 61000-4-9 (immunity to pulsed magnetic field) Criterion B
EN 55022 (emitted interference) Criterion B |
Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact. Meets IEC 61850-3 and IEEE 1613 standards | Status display | LEDs: U |
