Product Model

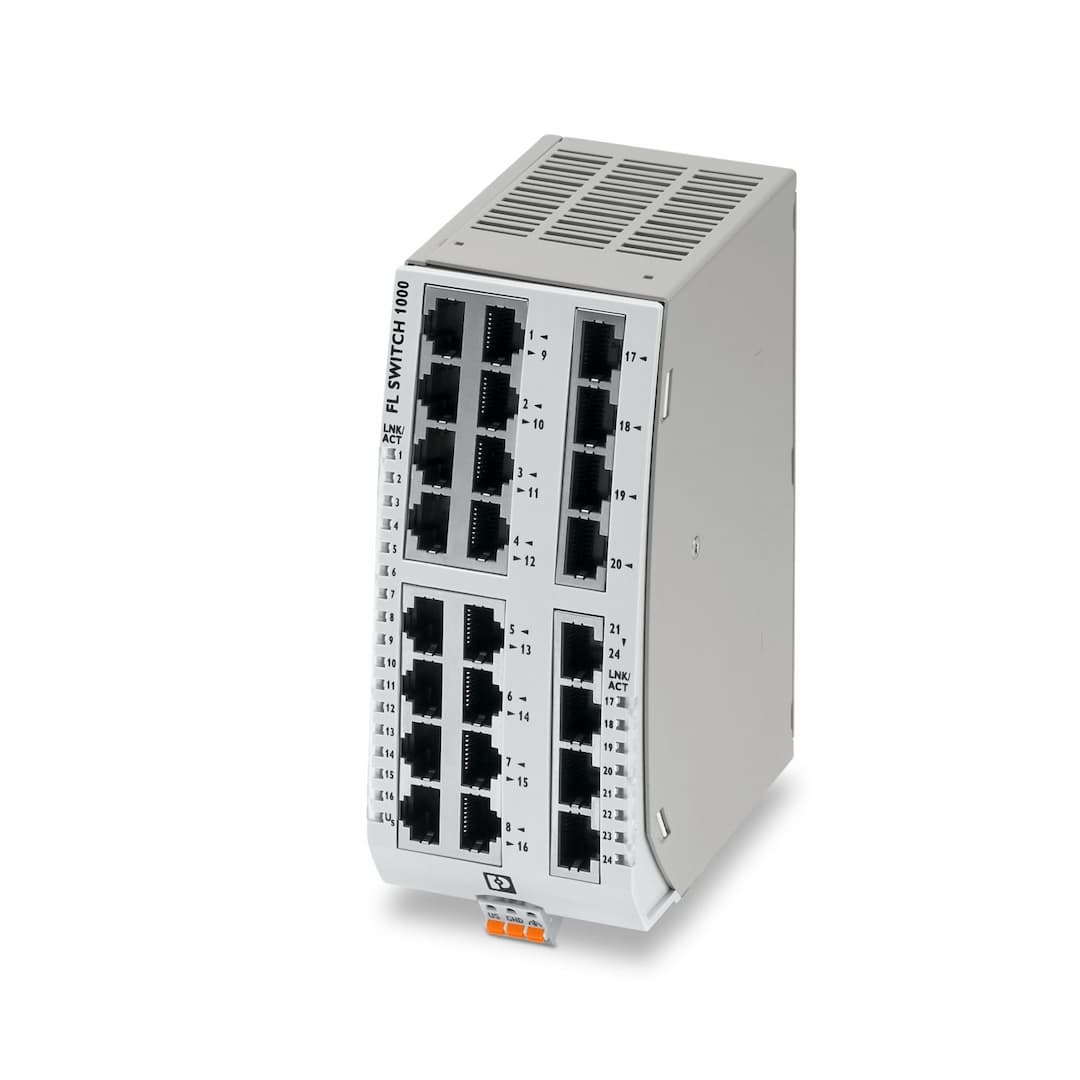

FL SWITCH 1024T
Selling Points
- 124 RJ45 Ports: Supports 10/100 Mbps on all ports for high-speed connectivity.
- 2Power Over Ethernet (PoE): Supplies power to devices via Ethernet cables, simplifying installations.
- 3Advanced QoS: Prioritizes Quality of Service (QoS) messages for critical automation protocols.
- 4Wide Temperature Range: Operates in a wide temperature range, ensuring reliability in various environments.
- 5DIN Rail Mounting: Easy installation on DIN rails for compact and efficient setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 65 mm | Height | 141 mm |
Depth | 107 mm | Note on application | Only for industrial use |
Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 | Mounting type | DIN rail mounting |
Number of interfaces | 24 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 24 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch 1000 |
MTTF | 32.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
388.4 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
354.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 02 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | MAC address table | 8k |
Status and diagnostic indicators | LEDs: U | Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Maximum power dissipation for nominal condition | 3.6 W (at 24 V DC) |
Transmission medium | Copper | Supply voltage (DC) | 24 V |
Supply voltage (AC) | 24 V AC (50/60 Hz) | Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 400 mA (at 9 V DC) | Typical current consumption | 56 mA (at 24 V DC) |
Connection name | Power supply | pluggable | yes |
Connection method | Push-in spring connection | Conductor cross section, rigid | 0.5 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.5 mm² ... 2.5 mm² | Conductor cross section AWG | 20 ... 12 |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 2.5 mm² | Conductor cross section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
Stripping length | 10 mm | Degree of protection | IP30 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | 2000 m (maximum) | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Conformance | CE-compliant |
UL, USA / Canada | UL 61010-1, UL 61010-2-201 | FCC | Title 47 Part 15 Subpart B:2018 Class A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4:2007 + A1:2011 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
