Product Model

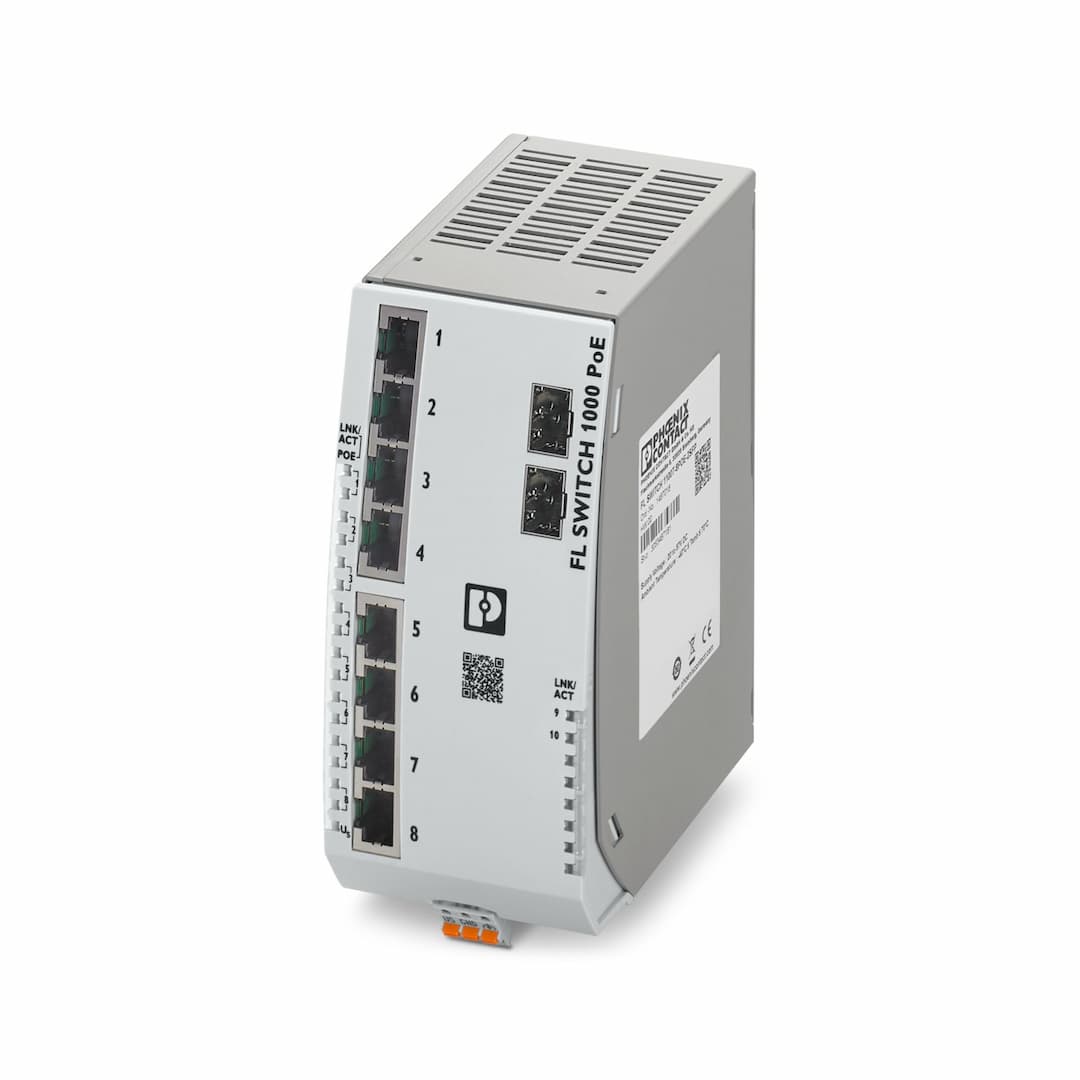

FL SWITCH 1100T-8POE-2SFP
Selling Points
- 1High-performance operation with 10/100/1000 Mbps transmission speed.
- 2Robust connectivity via 8 PoE RJ45 ports and 2 SFP ports.
- 3Durable housing made of polycarbonate fiber reinforced material.
- 4Easy installation with DIN rail mounting for streamlined setup.
- 5Long-lasting performance with an MTTF of 30.9 years (MIL-HDBK-217F standard).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 65 mm | Height | 141 mm |
Depth | 107 mm | Notes on operation | Mode A PoE |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps (full duplex) |
Transmission physics | Depending on the SFP module | Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
Signal LEDs | Data receive, link status, PoE | No. of channels | 2 (SFP ports) |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (Between transmitter / receiver) |
Signal LEDs | LNK/ACT, POE | No. of channels | 8 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged PoE Switches 1000 |
Type | Stand-Alone | MTTF | 30.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
460.9 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
451.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
Article revision | 00 | Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode |
MAC address table | 4k | Status and diagnostic indicators | LEDs: U |
Additional functions | 100 BASE-TX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3)
Gigabit Ethernet 1000BASE-T (IEEE 802.3ab) | Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
Supply voltage range | 20 V DC ... 57 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 7.1 A (at 20 V DC) |
Typical current consumption | 157 mA (at 24 V DC) | Connection name | Power supply |
pluggable | yes | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | Stripping length | 10 mm |
Degree of protection | IP30 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m (maximum) |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Conformance | CE-compliant | Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55032 (emitted interference) Criterion A | Basic functions | PSE, complies with IEEE 802.3af/at
Autonegotiation
Store and Forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
