Product Model

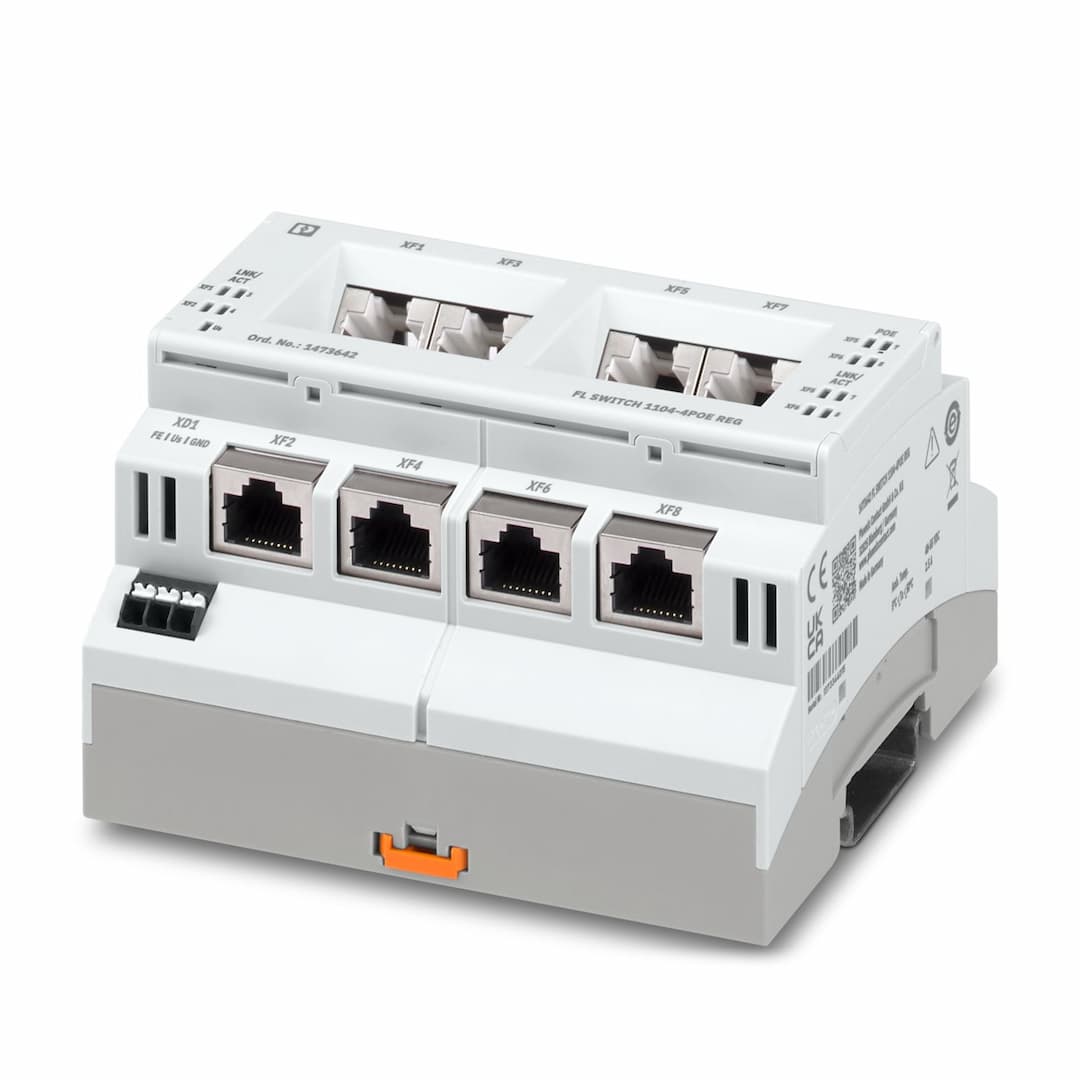

FL SWITCH 1104-4POE REG
Selling Points
- 1Made from polycarbonate, ensuring long-lasting performance in demanding environments.
- 2Features DIN rail mounting for streamlined setup in control panels.
- 3Utilizes reliable Spring-cage connection for secure and stable connectivity.
- 4Supports transmission speeds of up to 10/100/1000 Mbps for efficient data communication.
- 5Equipped with 4 RJ45 POE ports, each capable of up to 30 W, according to 802.3at standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 108 mm | Height | 90 mm |
Depth | 62 mm | Note on dimensions | 6 HP |
General | Support by phone or on-site (fee is charged) | Note on application | Only for industrial use |
Housing material | PC (polycarbonate) | Mounting type | DIN rail mounting |
Number of interfaces | 8 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet RJ45 | Transmission length | 100 m (per segment) |
Signal LEDs | LNK/ACT, POE | No. of channels | 4 (RJ45 ports) |
Number of interfaces | 4 | Connection method | RJ45 |
Transmission length | 100 m (Between transmitter / receiver) | Signal LEDs | LNK/ACT, POE |
Number of interfaces | 4 | Transmission speed | 10/100/1000 Mbps |
No. of channels | 4 (RJ45 POE ports) | Product type | Switch |
Product family | Unmanaged Switch 1000 REG | Type | Stand-Alone |
MTTF | 802.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
351.4 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
94.1 Years (SN 29500 standard, temperature: 50°C, operating cycle: 100%) | Special properties | REG design in accordance with DIN 43880 |
Signal delay | Store and Forward mode, 10/100 Mbps, depending on the frame size | Article revision | 00 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Status and diagnostic indicators | LEDs: U |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Local diagnostics | US Supply voltage Green LED
PoE PoE detection Yellow LED
LNK/ACT Link status/data transmission Green LED |
Maximum power dissipation for nominal condition | 7.6 W | Test voltage | 500 V DC |
Test section | Between the Ethernet ports 1500 V AC 1 min
24 V supply (US) / FE 500 V DC 1 min | Transmission medium | Copper |
Supply voltage (DC) | 54 V DC | Supply voltage range | 48 V DC ... 55 V DC |
Max. current consumption | 2.5 A (at U | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
Degree of protection | IP20 | Ambient temperature (operation) | 5 °C ... 50 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Altitude | max. 2000 m |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 hPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 hPa ... 108 kPa (3500 m above sea level) |
Conformance with EMC directives | IEC 62368-1 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
