Product Model

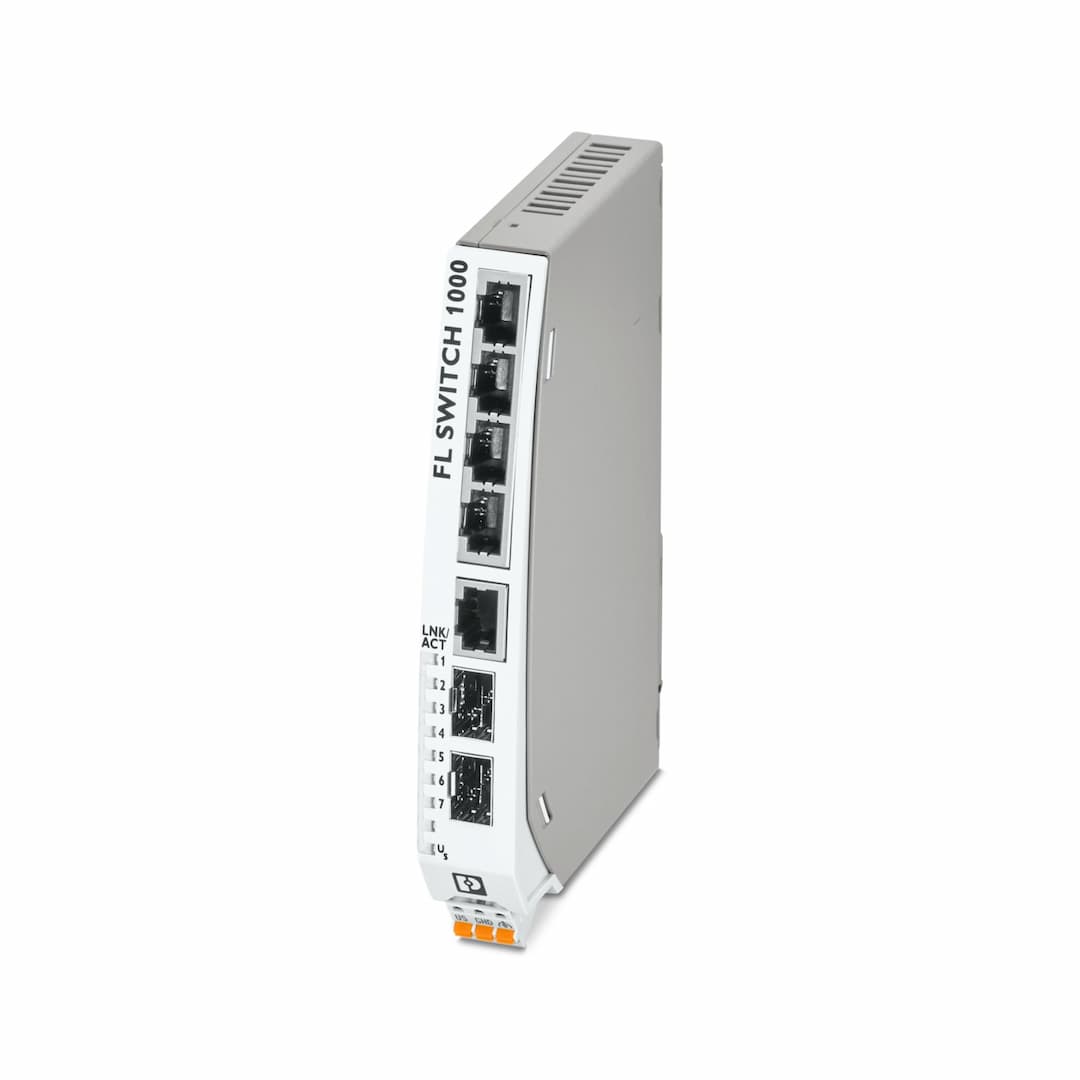

FL SWITCH 1105NT-2SFP
Selling Points
- 1Auto Negotiation Simplifies Installation: Auto negotiation and autocrossing detection simplify setup and installation.
- 2Local Diagnostic Indicators: Local diagnostic indicators with LEDs provide real-time status and diagnostic information.
- 3High-Speed Ethernet Ports: Five RJ45 ports support transmission speeds of 10/100/1000 Mbps on all ports.
- 4Quality of Service (QoS): Prioritized QoS messages ensure critical data is transmitted efficiently.
- 5Wide Temperature Range: Operates in a wide temperature range from -40°C to 75°C, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22.5 mm | Height | 148 mm |
Depth | 98 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 |
Mounting type | DIN rail mounting | Number of interfaces | 5 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 5 (RJ45 ports) | Number of interfaces | 2 |
Connection method | SFP | Transmission speed | 100/1000 Mbps (full duplex) |
Transmission physics | Depending on the SFP module | Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
Signal LEDs | Data receive, link status | No. of channels | 2 (SFP ports) |
Product type | Switch | Product family | Unmanaged Switch 1000 |
MTTF | 75.5 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1013.7 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
776.4 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 02 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | MAC address table | 4k |
Status and diagnostic indicators | LEDs: U | Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Jumbo frames (Max. 9,216 bytes)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
Gigabit Ethernet 1000BASE-T (IEEE 802.3ab)
10Base-T (IEEE 802.3) |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Maximum power dissipation for nominal condition | 5.04 W (at 24 V DC) |
Transmission medium | Copper | Supply voltage (DC) | 24 V |
Supply voltage (AC) | 24 V AC (50/60 Hz) | Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 560 mA (at 9 V DC) | Typical current consumption | 33 mA (at 24 V DC) |
Connection name | Power supply | pluggable | yes |
Connection method | Push-in spring connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² | Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
Stripping length | 10 mm | Degree of protection | IP30 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | 2000 m (maximum) | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | UL, USA / Canada | UL 61010-1, UL 61010-2-201, UL 62368-1 |
FCC | Title 47 Part 15 Subpart B:2018 Class A | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4:2007 + A1:2011 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
Status display | LEDs: U |
