Product Model

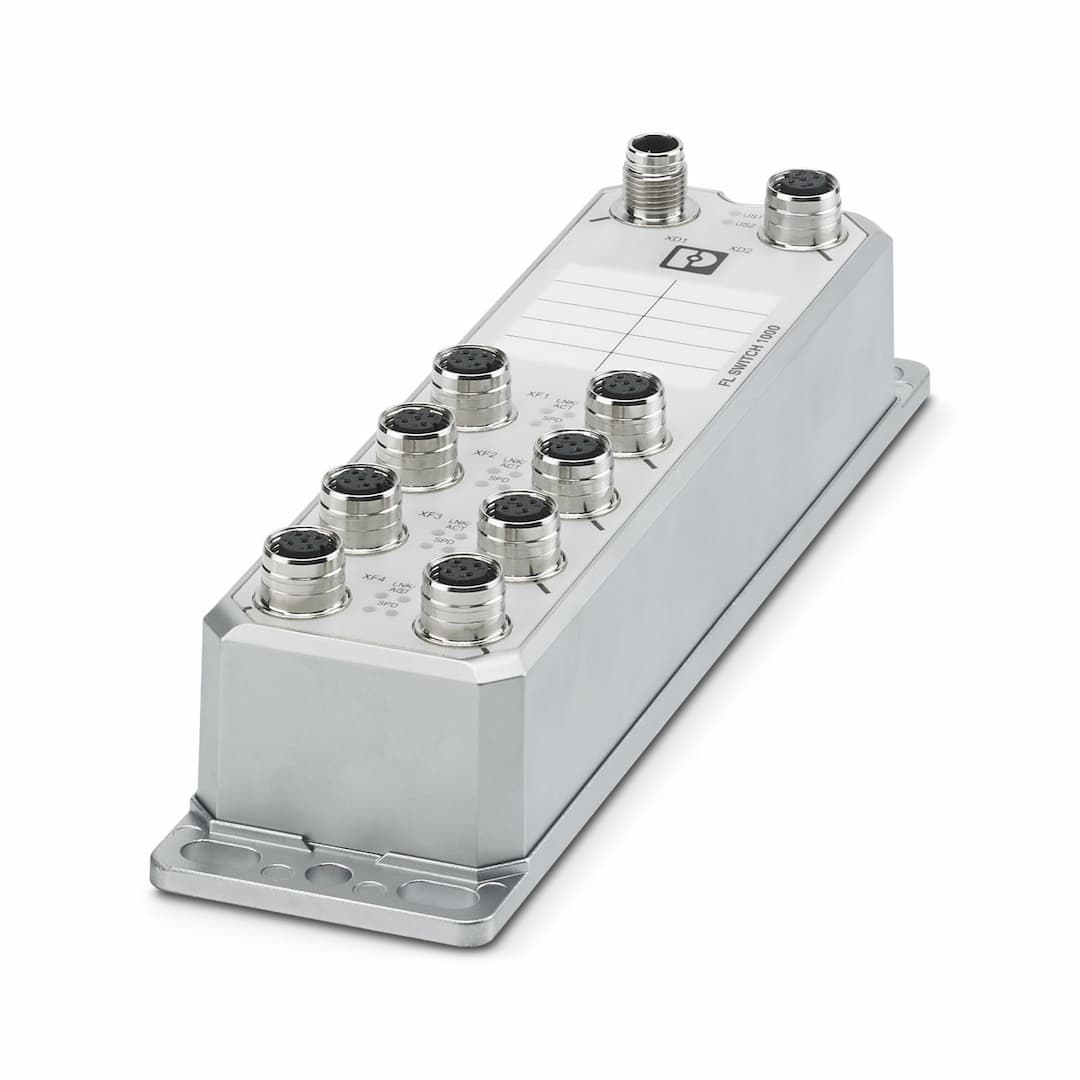

FL SWITCH 1608
Selling Points
- 1Unmanaged Switch with 8 M12 Ports: Supports 10/100 MBit/s Ethernet connectivity.
- 2IP65/IP66/IP67 Protection: Durable and resistant to harsh environments.
- 3Enhanced Temperature Range: Operates in a wide temperature range for reliability.
- 4Quality of Service (QoS) Prioritization: Ensures critical messages are transmitted first.
- 5PROFINET PTCP Filter: Enhances communication reliability on PROFINET networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 226 mm |
Depth | 46 mm | Note on application | Only for industrial use |
Housing material | Zinc die-cast | Mounting type | Wall mounting |
Connection method | M12 connectors, D-coded | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 8 (M12 ports) | Product type | Switch |
Product family | Unmanaged Switch 1000 | Type | Stand-Alone |
MTTF | 79.2 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
845.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
610.2 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Special properties | Extended temperature range |
Article revision | 02 | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
MAC address table | 4k | Status and diagnostic indicators | LEDs: US1, US2 (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
LINK Link status Green LED | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 9 V DC ... 57 V DC |
Residual ripple | 3.6 V | Max. current consumption | 143 mA (9 V DC) |
Typical current consumption | 58 mA | Connection name | Power supply |
Connection method | M12 connector (A-coded) | Degree of protection | IP65
IP66
IP67 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Free from substances that could impair the application of coating | Yes | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Status display | LEDs: US1, US2 (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Specifications may be subject to change without notice
