Product Model

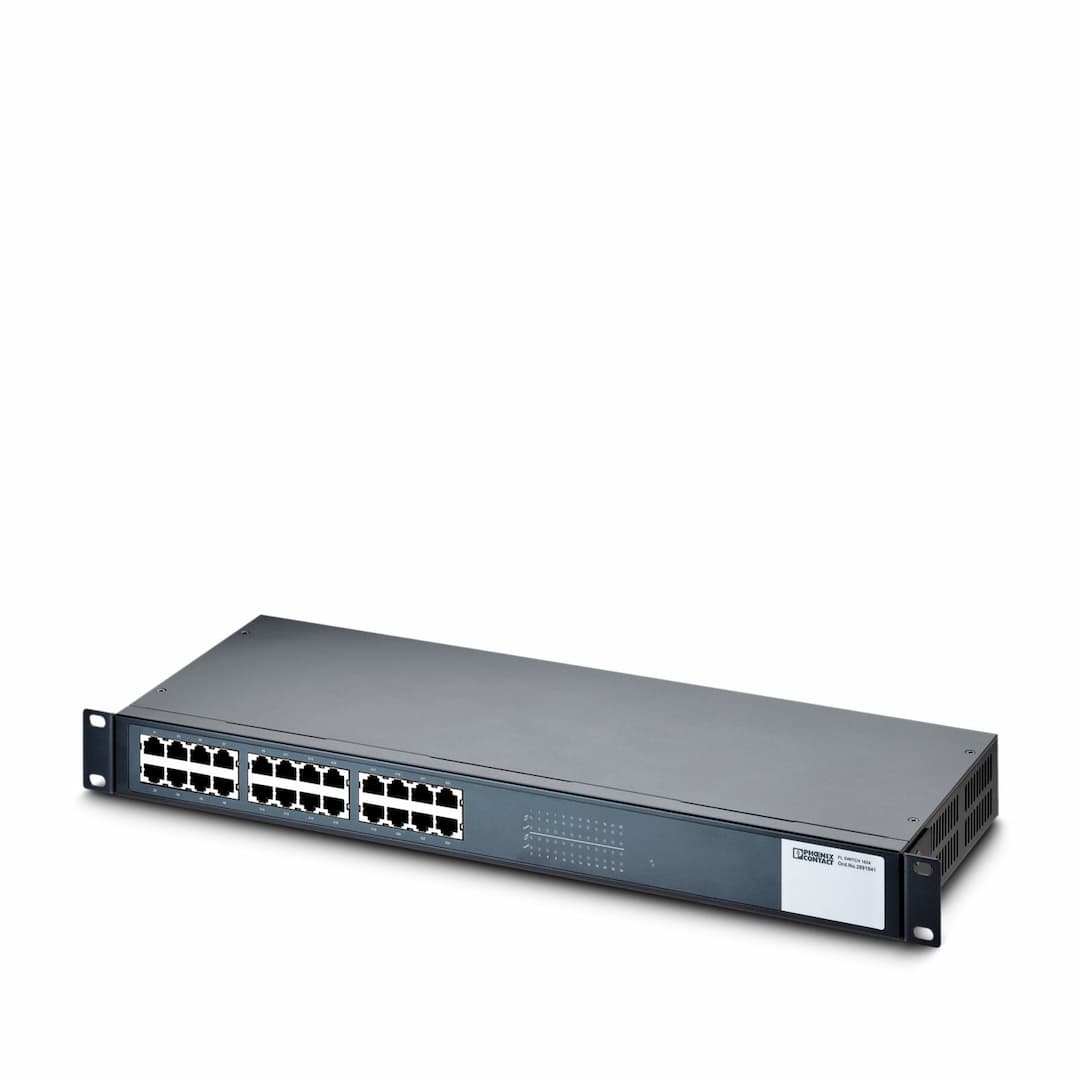

FL SWITCH 1824
Selling Points
- 124 RJ45 Ethernet Ports: Connect up to 24 devices directly.
- 2Automatic Speed Detection: Seamlessly switches between 10 Mbps and 100 Mbps.
- 3Rack Mount Design: Easy installation in 19-inch racks.
- 4IP20 Protection: Durable aluminum housing with IP20 protection.
- 5Unmanaged Ethernet Switch: Simple setup and configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 440 mm | Height | 44 mm |
Depth | 173 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Mounting type | Rack mount, includes brackets |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Twisted pair connection | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 24 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch 1800 |
Type | Stand-Alone | MTTF | 22.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 06 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Local diagnostics | US Power present Green LED
100 Port is operating at 100 Mbps Green LED
LNK/ACT Receiving/transmitting messages Green LED |
Maximum power dissipation for nominal condition | 220 W | Transmission medium | Copper |
Supply voltage (AC) | 120 V AC
220 V AC | Supply voltage range | 100 V AC ... 240 V AC (50/60 Hz) |
Inrush current | 29 A (80 µs @ 230 V AC) | Max. current consumption | 1 A (maximum) |
Typical current consumption | 270 mA (100 V AC) | Supply voltage range | 100 V AC ... 240 V AC |
Current consumption | 1 A (maximum) | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC | Conformance with EMC directives | EN 61000-4-2 (ESD) Criterion B
EN 61000-4-3 (radiated noise immunity) Criterion A
EN 61000-4-4 (EFT burst) Criterion B
EN 61000-4-5 (surge) Criterion B
EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-4-11
EN 61000-6-3 |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
