Product Model

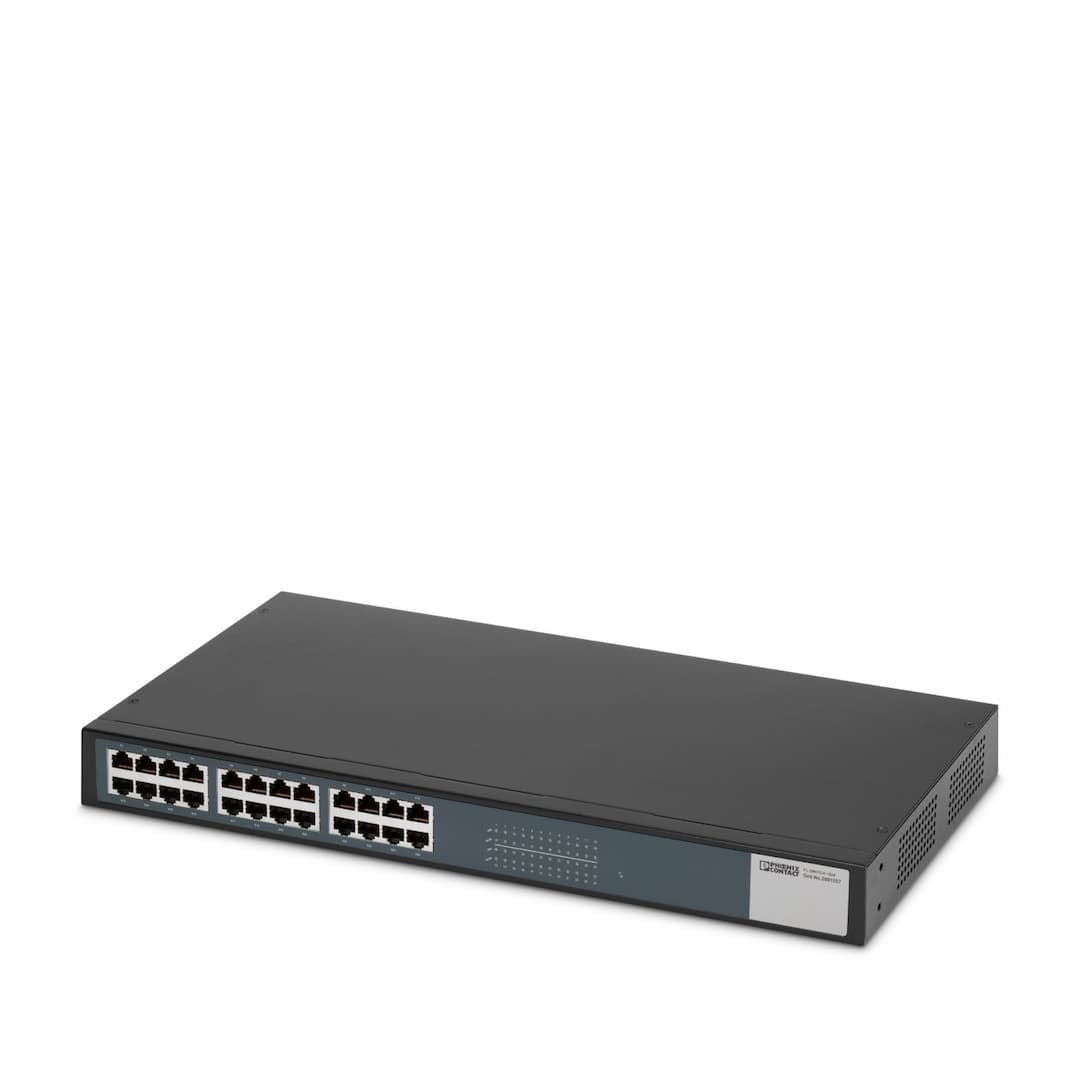

FL SWITCH 1924
Selling Points
- 1Equipped with 24 RJ45 Ethernet ports for high connectivity.
- 2Supports automatic detection of 10, 100, or 1000 Mbps data transmission rates.
- 3Features auto crossing function for seamless network segment coupling.
- 4Compact design for easy installation in 19-in. (482 mm) racks.
- 5Includes mounting brackets and power cords for EEC and North America.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 482 mm | Height | 44 mm |
Depth | 210 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Mounting type | Rack mount, includes brackets |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Twisted pair connection | Transmission length | 100 m (per segment) |
Signal LEDs | Activity, link status | No. of channels | 24 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch 1900 |
Type | Stand-Alone | MTTF | 30.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Article revision | 06 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
MAC address table | 8192 | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Local diagnostics | US Power present Green LED | Maximum power dissipation for nominal condition | 88 W |
Transmission medium | Copper | Supply voltage (AC) | 120 V AC
220 V AC |
Supply voltage range | 100 V AC ... 240 V AC (50/60 Hz) | Inrush current | 23 A (200 µs @ 230 V AC) |
Max. current consumption | 0.4 A (maximum) | Typical current consumption | 312 mA (100 V AC) |
Supply voltage range | 100 V AC ... 240 V AC | Current consumption | 1 A (maximum) |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
Conformance with EMC directives | IEC 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-4-3 (radiated noise immunity) Criterion A
EN 61000-4-4 (EFT burst) Criterion B
EN 61000-4-5 (surge) Criterion B
EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-4-11
EN 61000-6-3 | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status display | LEDs: U |
Specifications may be subject to change without notice
