Product Model

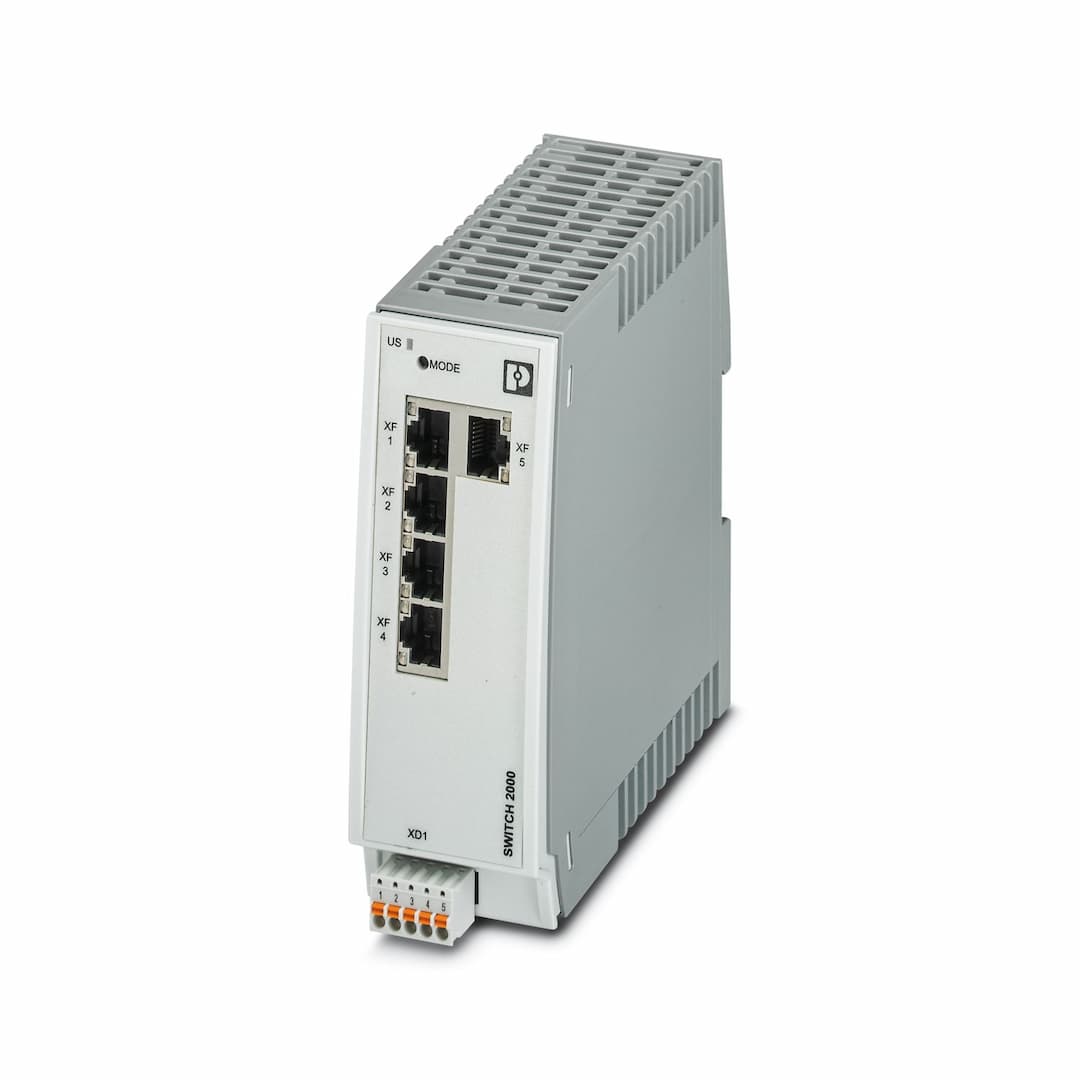

FL SWITCH 2005
Selling Points
- 1High-Performance Switching: Supports 10/100 Mbps transmission speed with 5 RJ45 ports.
- 2Comprehensive Management: Web-based management (HTTP/HTTPS) and SNMPv1/v2/v3 for easy configuration.
- 3Redundancy Features: MRP (Media Redundancy Protocol) and RSTP (Rapid Spanning Tree Protocol) for network reliability.
- 4Security and Diagnostics: Port security with MAC-based authentication, ACD (Address Conflict Detection), and diagnostic functions like RMON History.
- 5Durable Design: IP20 degree of protection, operating temperature range of 0°C to 60°C, and humidity resistance up to 95%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 119 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 5 (RJ45 ports) |
Product type | Switch | Product family | Managed Switch 2000 |
Type | Book type | MTTF | 507.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
246.55 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
56.66 Years (SN 29500 standard, temperature 55°C, operating cycle 100%) |
Special properties | Development process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2 | Signal delay | ≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
Article revision | 08 | Protection class | III (VDE 0106) |
Degree of pollution | 2 | Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | PROFINET conformance class | Conformance-Class A |
Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 8 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering | IP parameterization | DHCP client
DHCP server (port based)
BootP |
MAC address table | 8k | Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) |
Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol) | Status and diagnostic indicators | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Additional functions | Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP | Time synchronization | SNTP (Simple Network Time Protocol) |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Current consumption | 165 mA |
Local diagnostics | US Supply voltage Green LED
LNK/ACT Link status Green LED
SPD Data transmission speed Green LED | Maximum power dissipation for nominal condition | 3.96 W (At U |
Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (single) | Supply voltage range | 18 V DC ... 32 V DC |
Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 0.3 A (At U | Typical current consumption | 165 mA (at U |
Current consumption | 165 mA | Connection method | Push-in spring connection |
Note on the connection method | Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C). | Conductor cross section, rigid | 0.25 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Stripping length | 9 mm | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | 2g, according to IEC 60068-2-6 |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 86 kPa ... 108 kPa (1500 m above sea level) |
Free from substances that could impair the application of coating | Yes | Identification | cULus |
Note | UL 61010-1, Ed. 3 / UL 61010-2-201, Ed. 1, CSA C22.2 NO.61010-2-201:14. Ed. 1 / CSA C22.2 NO.61010-1-12. Ed. 3 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Status display | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
