Product Model

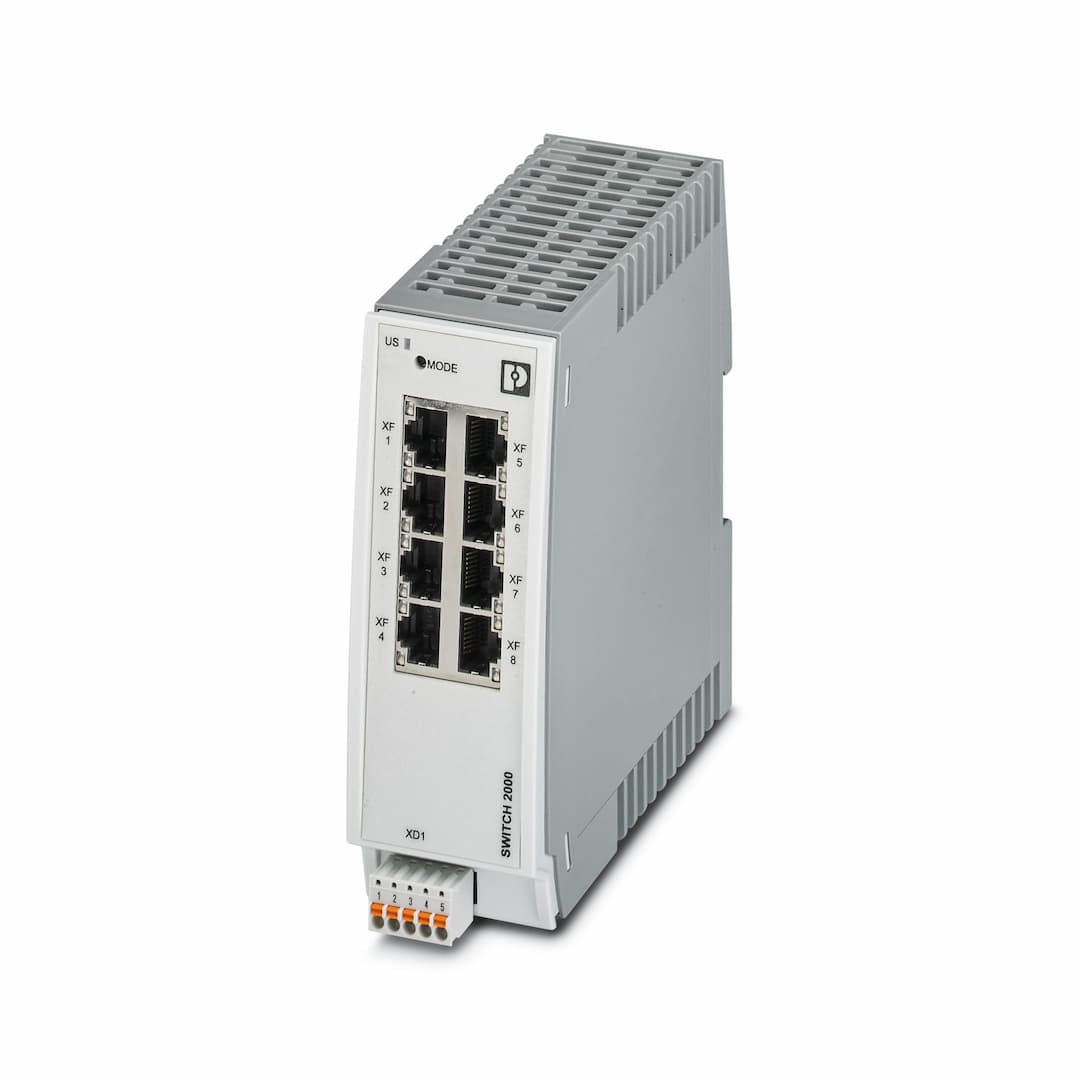

FL SWITCH 2008
Selling Points
- 1Robust Network Management: Supports VLANs, DHCP client/server, MRP client, and RSTP for reliable network operations.
- 2Industrial Compatibility: Suitable for PROFINET and EtherNet/IP networks, ensuring seamless integration in industrial automation systems.
- 3Web-Based Management: Easy configuration and monitoring via web-based management (HTTP/HTTPS) and SNMPv1/v2/v3.
- 4Durable Design: Built with polycarbonate fiber-reinforced housing, ensuring durability in harsh environments.
- 5Easy Installation: Fast startup and commissioning with the FL NETWORK MANAGER software, reducing installation complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 119 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced |
Mounting type | DIN rail mounting | Number of interfaces | 8 |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 8 (RJ45 ports) | Product type | Switch |
Product family | Managed Switch 2000 | Type | Book type |
MTTF | 507.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
246.55 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
56.66 Years (SN 29500 standard, temperature 55°C, operating cycle 100%) | Special properties | Development process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2 |
Signal delay | ≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) | Article revision | 10 |
Protection class | III (VDE 0106) | Degree of pollution | 2 |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
PROFINET conformance class | Conformance-Class A | Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 8 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering |
IP parameterization | DHCP client
DHCP server (port based)
BootP | MAC address table | 8k |
Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) | Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol) |
Status and diagnostic indicators | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) | Additional functions | Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP |
Time synchronization | SNTP (Simple Network Time Protocol) | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Current consumption | 180 mA | Local diagnostics | US Supply voltage Green LED
LNK/ACT Link status Green LED
SPD Data transmission speed Green LED |
Maximum power dissipation for nominal condition | 4.86 W (At U | Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (single) |
Supply voltage range | 18 V DC ... 32 V DC | Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 0.35 A (At U |
Typical current consumption | 180 mA (at U | Current consumption | 180 mA |
Connection method | Push-in spring connection | Note on the connection method | Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C). |
Conductor cross section, rigid | 0.25 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 9 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | 2g, according to IEC 60068-2-6 | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 86 kPa ... 108 kPa (1500 m above sea level) | Free from substances that could impair the application of coating | Yes |
Identification | cULus | Note | UL 61010-1, Ed. 3 / UL 61010-2-201, Ed. 1, CSA C22.2 NO.61010-2-201:14. Ed. 1 / CSA C22.2 NO.61010-1-12. Ed. 3 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Status display | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Specifications may be subject to change without notice
