Product Model

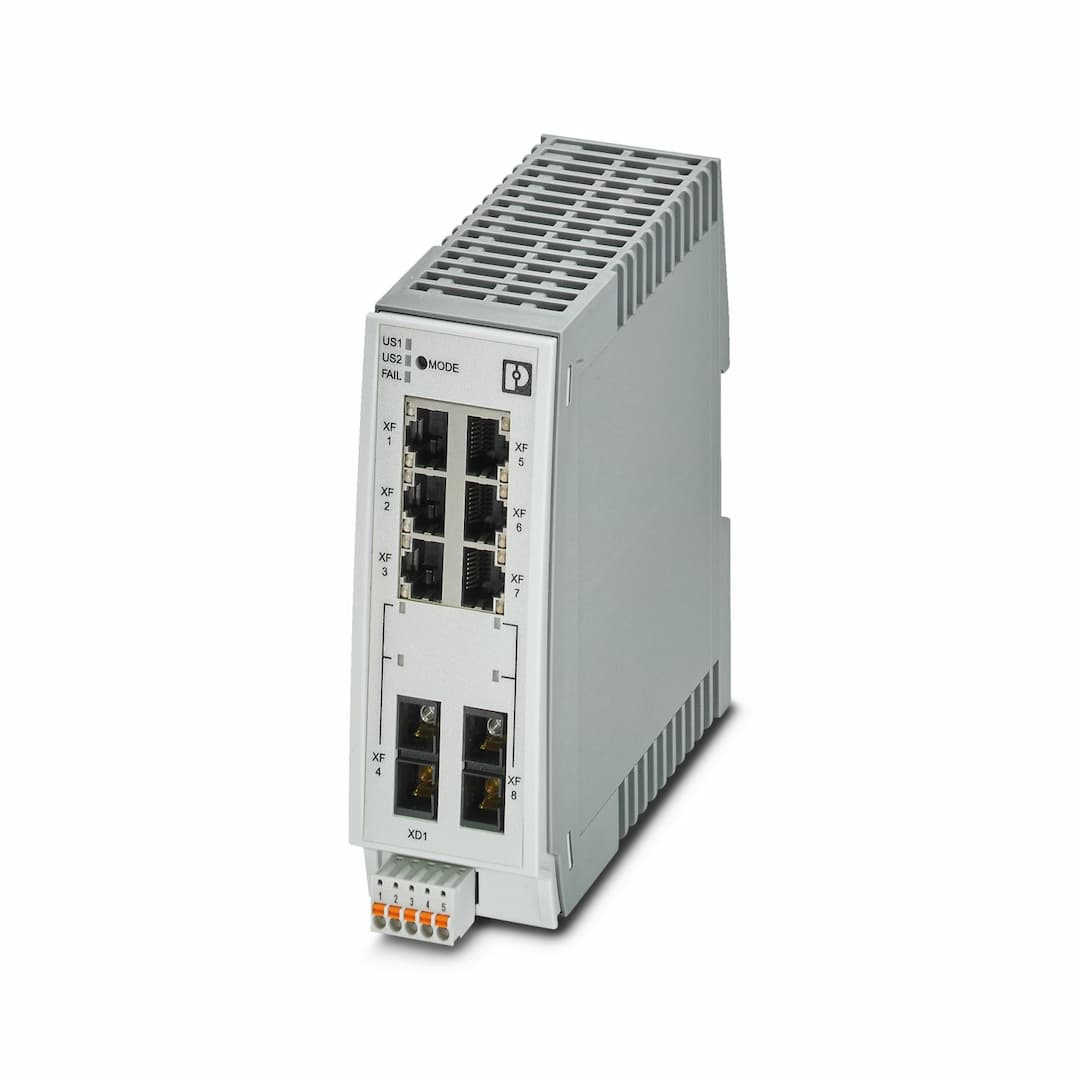

FL SWITCH 2206C-2FX
Selling Points
- 1Engineered to withstand harsh industrial conditions with an extended temperature range of -40°C to 70°C.
- 2Includes VLAN, MRP, DHCP client/server, RSTP, and web-based management for seamless network control.
- 3Supports 10/100 Mbps on RJ45 ports and 100 Mbps full duplex on SC multi-mode ports for efficient data transfer.
- 4Coated PCB with polycarbonate fiber-reinforced housing for added durability and protection.
- 5Suitable for DIN rail mounting and easy startup with the FL NETWORK MANAGER software, ensuring quick commissioning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 119 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 6 (RJ45 ports) |
Number of interfaces | 2 | Connection method | SC |
Transmission speed | 100 Mbps (full duplex) | Transmit capacity, minimum | -19 dBm |
Transmit capacity, maximum | -14 dBm | Minimum receiver sensitivity | -32 dBm |
Maximum receiver sensitivity | -14 dBm | Transmission physics | multi-mode fiberglass |
Transmission length | 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) | Wavelength | 1300 nm |
Signal LEDs | Data receive, link status | No. of channels | 2 (SC multi-mode) |
Output name | Alarm output | Product type | Switch |
Product family | Managed Switch 2000 | Type | Book type |
MTTF | 343.16 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
153.37 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
18.66 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Special properties | Extended temperature range
Coated PCB, extended temperature range Conformal Coating
Development process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2 |
Signal delay | ≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) | Article revision | 03 |
Protection class | III (VDE 0106) | Degree of pollution | 2 |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Signal contact control voltage | typ. 24 V DC | PROFINET conformance class | Conformance-Class B |
PROFINET device function | PROFINET device
Fast Startup | Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 32 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering |
IP parameterization | DHCP client
DHCP Option 82 (Relay Agent)
DHCP server (pool-based, port-based)
BootP
DCP (Discovery and Configuration Protocol) | MAC address table | 8k |
Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP, RADIUS)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) | Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
LACP (Link Aggregation Control Protocol)
PROFINET S2 system redundancy |
Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) | Additional functions | Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP |
Time synchronization | SNTP (Simple Network Time Protocol) | Port security | MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Current consumption | 260 mA |
Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED | Maximum power dissipation for nominal condition | 6.75 W (U |
Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min | Transmission medium | Copper
FO |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 9 V DC ... 57 V DC |
Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 1.5 A (U | Typical current consumption | 255 mA (at U |
Current consumption | 260 mA | Signal contact control voltage | typ. 24 V DC |
Connection method | Push-in spring connection | Note on the connection method | Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C). |
Conductor cross section, rigid | 0.25 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 9 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Free from substances that could impair the application of coating | Yes |
Temperature | B | Humidity | B |
Vibration | A | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion A
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Specifications may be subject to change without notice
