Product Model

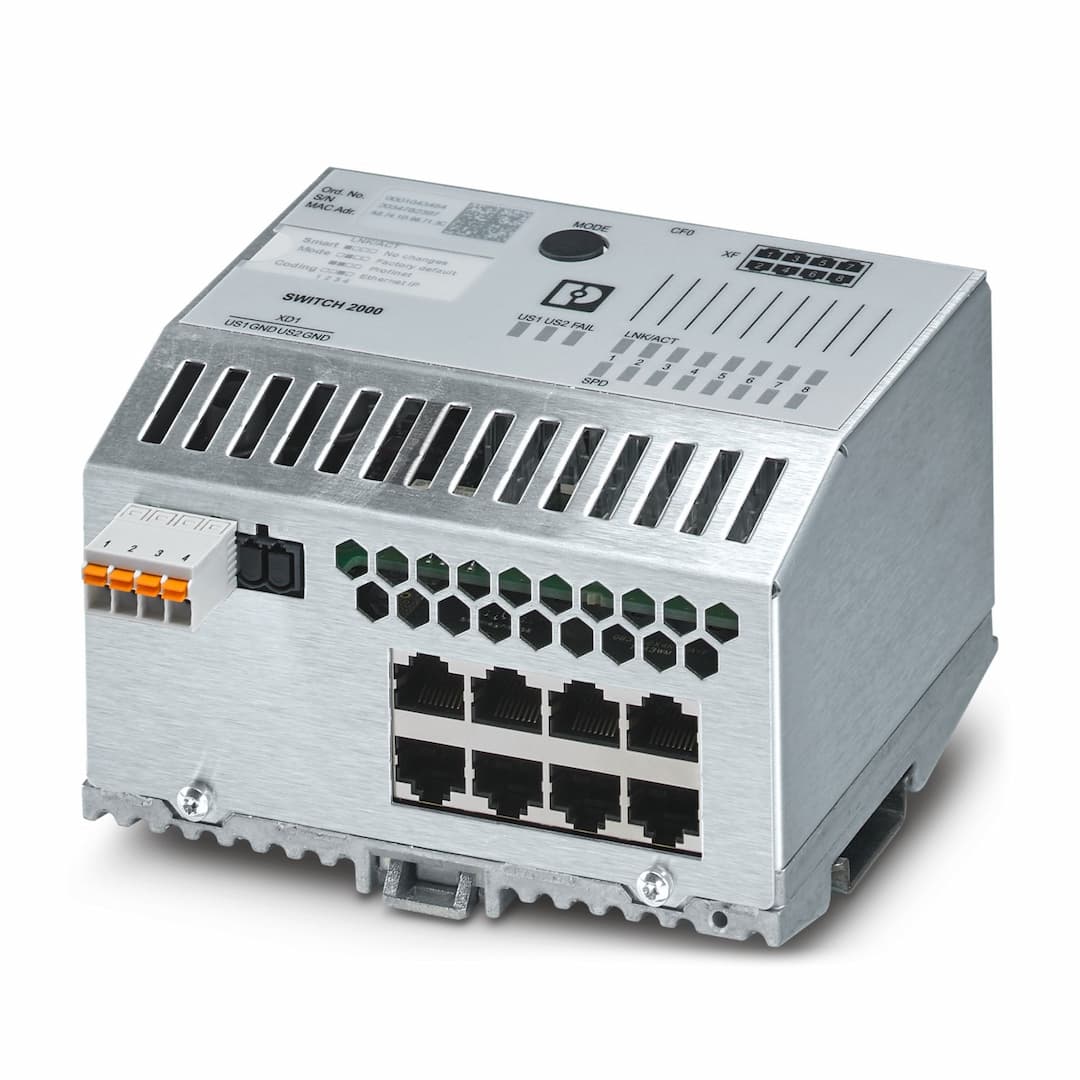

FL SWITCH 2508/K1
Selling Points
- 18 RJ45 Ports for Reliable Connectivity: Supports 10/100/1000 Mbps speeds and auto negotiation.
- 2PROFINET Conformance-Class B: Ensures seamless integration with PROFINET networks.
- 3Extended Temperature Range: Operates from -40°C to 70°C, making it suitable for harsh environments.
- 4Durable Construction: Made from high-grade steel and die-cast aluminum, ensuring long-lasting performance.
- 5Advanced Diagnostics and Management: Features RMON History, LLDP, SNMP-Traps, and more for comprehensive network monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 128 mm | Height | 113 mm |
Depth | 67 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Material base plate | Die-cast aluminum, corrosion-resistant |
Housing material | High-grade steel 1.4305 | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 8 (RJ45 ports) | Product type | Switch |
Product family | Managed Switch 2000 | Type | Block design |
MTTF | 357.82 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
191.24 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
25.65 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Special properties | Extended temperature range |
Signal delay | ≥ 1.9 µs (Store-and-Forward mode, 10/100/1000 Mbps, depending on the frame size) | Article revision | 02 |
Protection class | III (VDE 0106) | Degree of pollution | 2 |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
PROFINET conformance class | Conformance-Class B | PROFINET device function | PROFINET device
Fast Startup |
Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 32 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering | IP parameterization | DHCP client
DHCP Option 82 (Relay Agent)
DHCP server (pool-based, port-based)
BootP
DCP (Discovery and Configuration Protocol) |
MAC address table | 8k | Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP, RADIUS)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) |
Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
LACP (Link Aggregation Control Protocol)
PROFINET S2 system redundancy | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail, 2 LEDs per Ethernet port (Link/Activity and Speed) |
Additional functions | Jumbo frames (max. 9,600 bytes)
Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP | Time synchronization | SNTP (Simple Network Time Protocol) |
Port security | MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LNK/ACT Link status Green LED
SPD Data transmission speed Green/orange LED | Maximum power dissipation for nominal condition | 6.08 W (U |
Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 12 V DC ... 32 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 490 mA (U | Typical current consumption | 230 mA (at U |
Connection method | Push-in spring connection | Note on the connection method | Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C). |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 10 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Free from substances that could impair the application of coating | Yes |
Identification | cULus | Identification | ISA S71.04.2013 G3 Harsh Group A |
Temperature | B | Humidity | B |
Vibration | A | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion A
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Status display | LEDs: US1, US2 (power supply), Fail, 2 LEDs per Ethernet port (Link/Activity and Speed) |
Specifications may be subject to change without notice
