Product Model

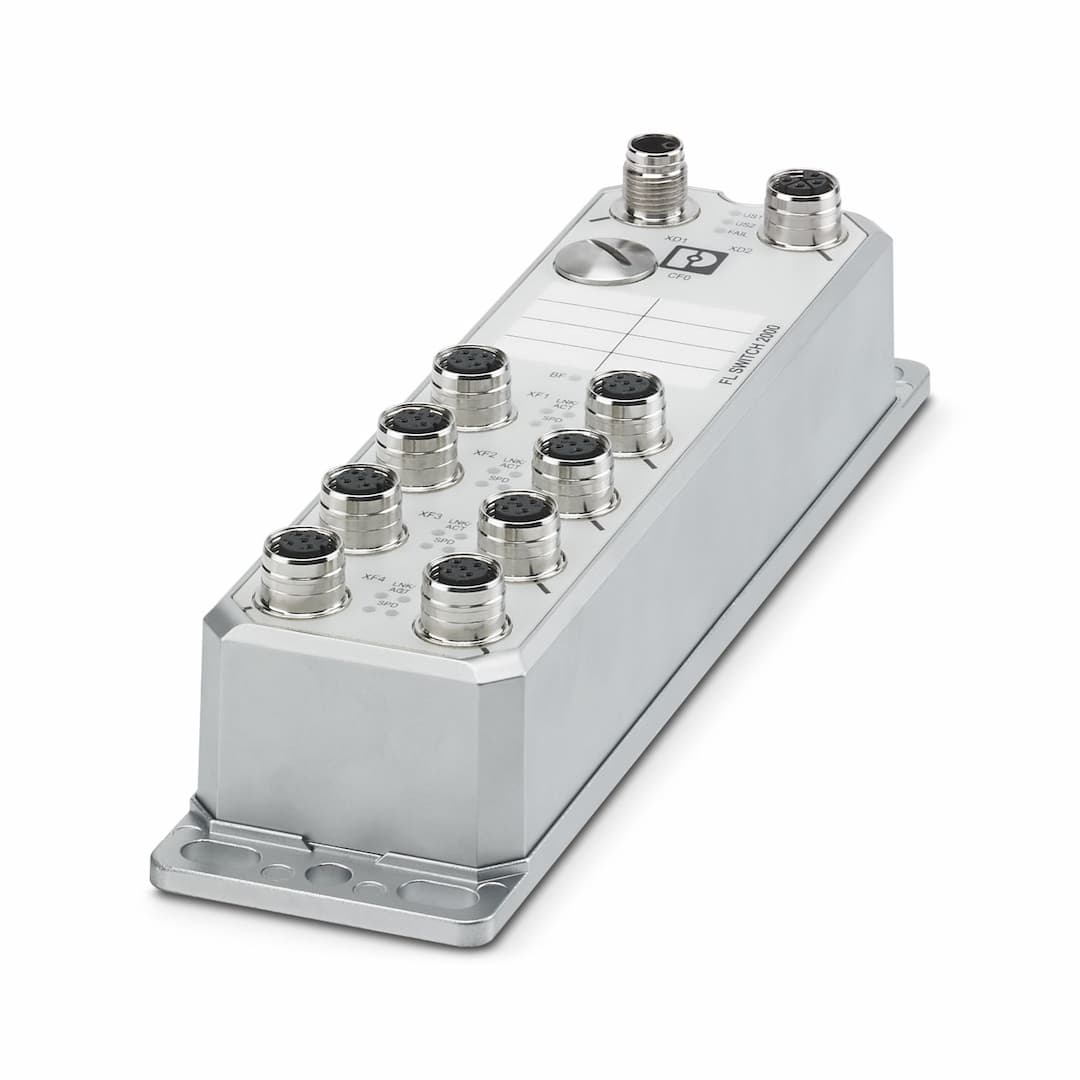

FL SWITCH 2608 PN
Selling Points
- 1Durable zinc die-cast housing ensures long-lasting performance in harsh industrial conditions.
- 2Simplifies installation with a standard wall mounting option, perfect for control panels.
- 3Reliable L-coded M12 connectors provide secure and stable connectivity.
- 4Supports 10/100 Mbps transmission speed for efficient data communication across networks.
- 5Suitable for various industrial settings with a transmission length of up to 100 m per segment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 226 mm |
Depth | 46 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Housing material | Zinc die-cast |
Mounting type | Wall mounting | Connection method | M12 connectors, D-coded |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 8 (M12 ports) |
Product type | Switch | Product family | Managed Switch 2000 |
Type | Stand-Alone | MTTF | 461.15 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
149.69 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
19.78 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) |
Special properties | Extended temperature range
PROFINET mode preset, PROFINET status LEDs
Development process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2 | Signal delay | ≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
Article revision | 03 | Protection class | III (VDE 0106) |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
PROFINET conformance class | Conformance-Class B | PROFINET device function | PROFINET device
Fast Startup |
Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 32 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering | IP parameterization | DHCP client
DHCP Option 82 (Relay Agent)
DHCP server (pool-based, port-based)
BootP
DCP (Discovery and Configuration Protocol) |
MAC address table | 8k | Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP, RADIUS)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) |
Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
LACP (Link Aggregation Control Protocol)
PROFINET S2 system redundancy | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail, 2 LEDs per Ethernet port (Link/Activity and Speed) |
Additional functions | Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP | Time synchronization | SNTP (Simple Network Time Protocol) |
Port security | MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Current consumption | 180 mA | Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED |
Maximum power dissipation for nominal condition | 4.68 W (U | Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 9 V DC ... 57 V DC | Residual ripple | 3.6 V |
Max. current consumption | 0.52 A (U | Typical current consumption | 180 mA (at U |
Current consumption | 180 mA | Connection method | M12 connector (L-coded) |
Degree of protection | IP65
IP66
IP67 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % |
Permissible humidity (storage/transport) | 5 % ... 95 % | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Free from substances that could impair the application of coating | Yes |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-3 (conducted emissions) Class B
EN 61000-6-3 (conducted emissions) Class B |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-3 |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Status display | LEDs: US1, US2 (power supply), Fail, 2 LEDs per Ethernet port (Link/Activity and Speed) |
Specifications may be subject to change without notice
