Product Model

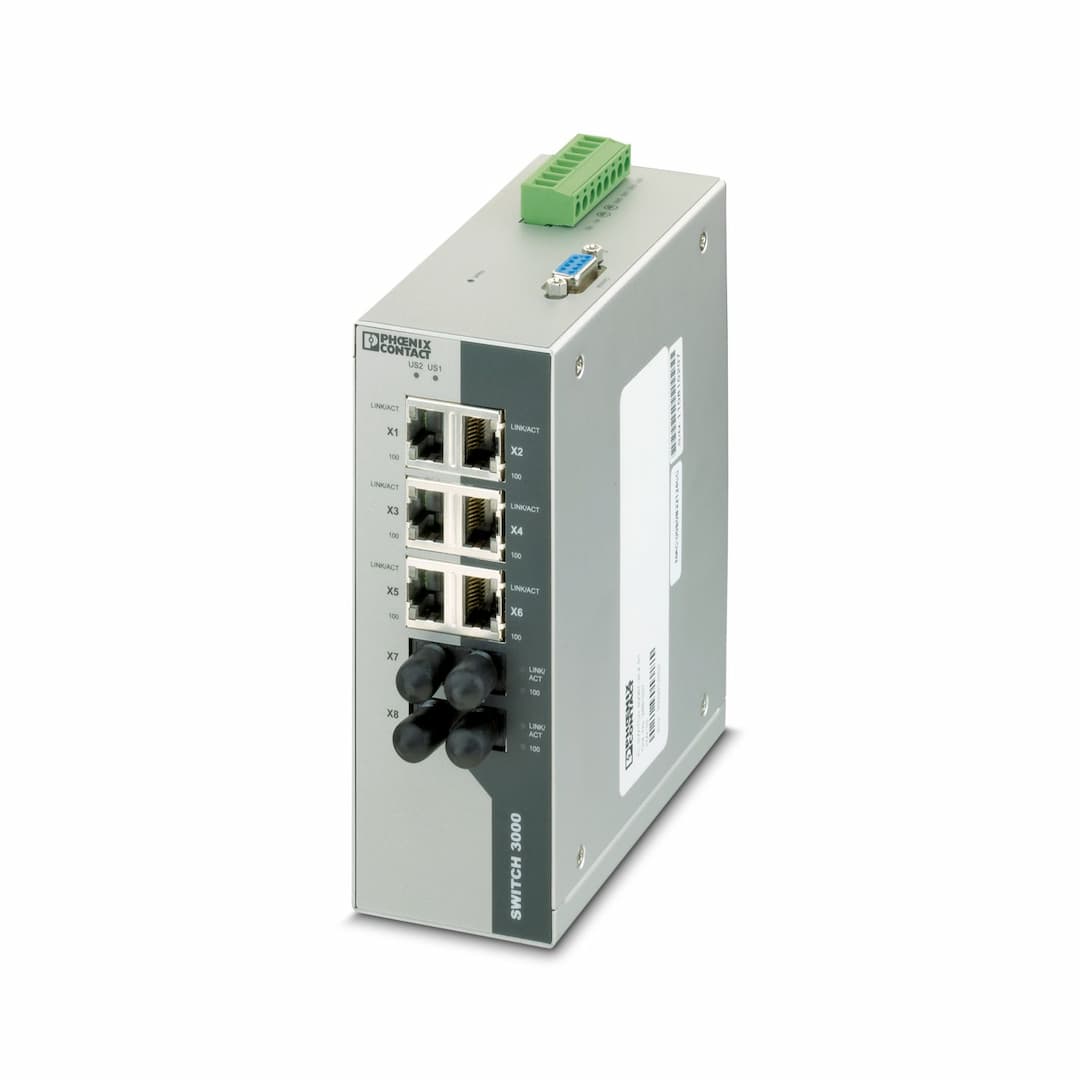

FL SWITCH 3006T-2FX ST
Selling Points
- 16 RJ45 ports and 2 ST fiber optic ports ensure robust network performance.
- 2DIN rail mounting and IP20 protection for operation in harsh environments.
- 3Supports 10/100Mbit/s transmission speed with auto-negotiation.
- 4Managed switch with STP/RSTP/MST redundancy for increased network uptime.
- 5Operating temperature -40°C to +75°C and humidity range 5% to 95% non-condensing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54.4 mm | Height | 146.4 mm |
Depth | 125 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | CCCex note | Use in potentially explosive areas is not permitted in China. |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m | No. of channels | 6 (RJ45 ports) |
Connection method | ST | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | 12.1 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
7.1 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
3.1 km (fiberglass with F-G 50/125 1.6 dB/km F800) |
Wavelength | 1300 nm | No. of channels | 2 (ST multi-mode) |
Product type | Switch | Product family | Managed Switch 3000 |
Type | Block design | Article revision | 09 |
Protection class | III (VDE 0106, IEC 60536) | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Redundancy | ERR (Extended ring redundancy) | Status and diagnostic indicators | LEDs: U |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed LED red |
Maximum power dissipation for nominal condition | 7.92 W | Test section | Supply voltage/functional ground 500 V 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 12 V DC ... 48 V DC | Inrush current | 4.6 A (3.1 ms) |
Residual ripple | 3.6 V | Typical current consumption | 289 mA (at U |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Connection name | Power supply | pluggable | yes |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Conformance | CE-compliant | ATEX | II 3 G Ex nA nC IIC T4 Gc |
EU-type examination certificate | DEMKO 16 ATEX 1616X | IECEx | Ex nA nC IIC T4 Gc |
IECEx certificate | IECEx UL 16.0094X | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Class A
NEMA TS-2 | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Status display | LEDs: U |
Specifications may be subject to change without notice
