Product Model

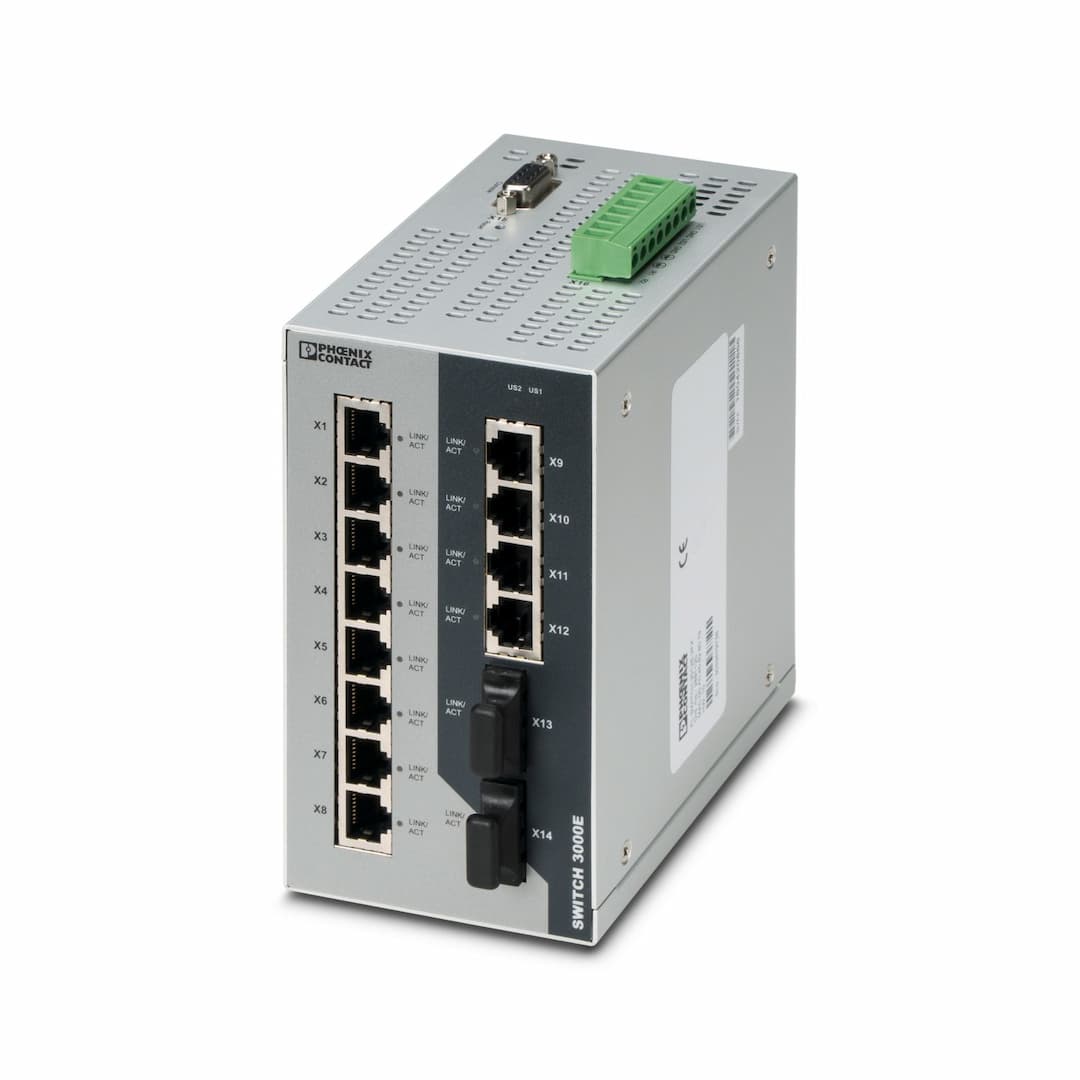

FL SWITCH 3012E-2FX
Selling Points
- 1Redundancy and Security: Meets IEC 61850-3 and IEEE 1613 standards for industrial environments.
- 2High-Speed Connectivity: Provides 12 RJ45 ports at 10/100 Mbps and two SC-D SM fiber optic ports at 100 Mbps.
- 3Reliable Operation: Operating temperature range of -40°C to +70°C, ensuring reliable operation in harsh conditions.
- 4Advanced Network Management: Supports STP/RSTP/MST redundancy, multicast control, IGMP snooping, and VLANs for efficient network management.
- 5Scalable and Customizable: Unique web customization for simplified user interface and scalable functionality for future needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 78.6 mm | Height | 145 mm |
Depth | 125 mm | Housing material | Aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m |
No. of channels | 12 (RJ45 ports) | Connection method | SC |
Transmission speed | 100 Mbps (full duplex) | Transmission physics | multi-mode fiberglass |
Transmission length | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) | Wavelength | 1300 nm |
No. of channels | 2 (SC multi-mode) | Product type | Switch |
Product family | Managed Switch 3000 | Type | Block design |
MTTF | 23.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 03 |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Signal contact control voltage | 24 V DC |
Signal contact control current | 100 mA | Redundancy | ERR (Extended ring redundancy) |
Status and diagnostic indicators | LEDs: U | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED | Test section | Supply voltage/functional ground 500 V 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 12 V DC ... 48 V DC | Residual ripple | 3.6 V |
Typical current consumption | 354 mA (at U | Signal contact control voltage | 24 V DC |
Signal contact control current | 100 mA | Connection name | Power supply |
pluggable | yes | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Conformance | CE-compliant |
Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Noise emission | EN 61000-6-4 |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Status display | LEDs: U |
Specifications may be subject to change without notice
