Product Model

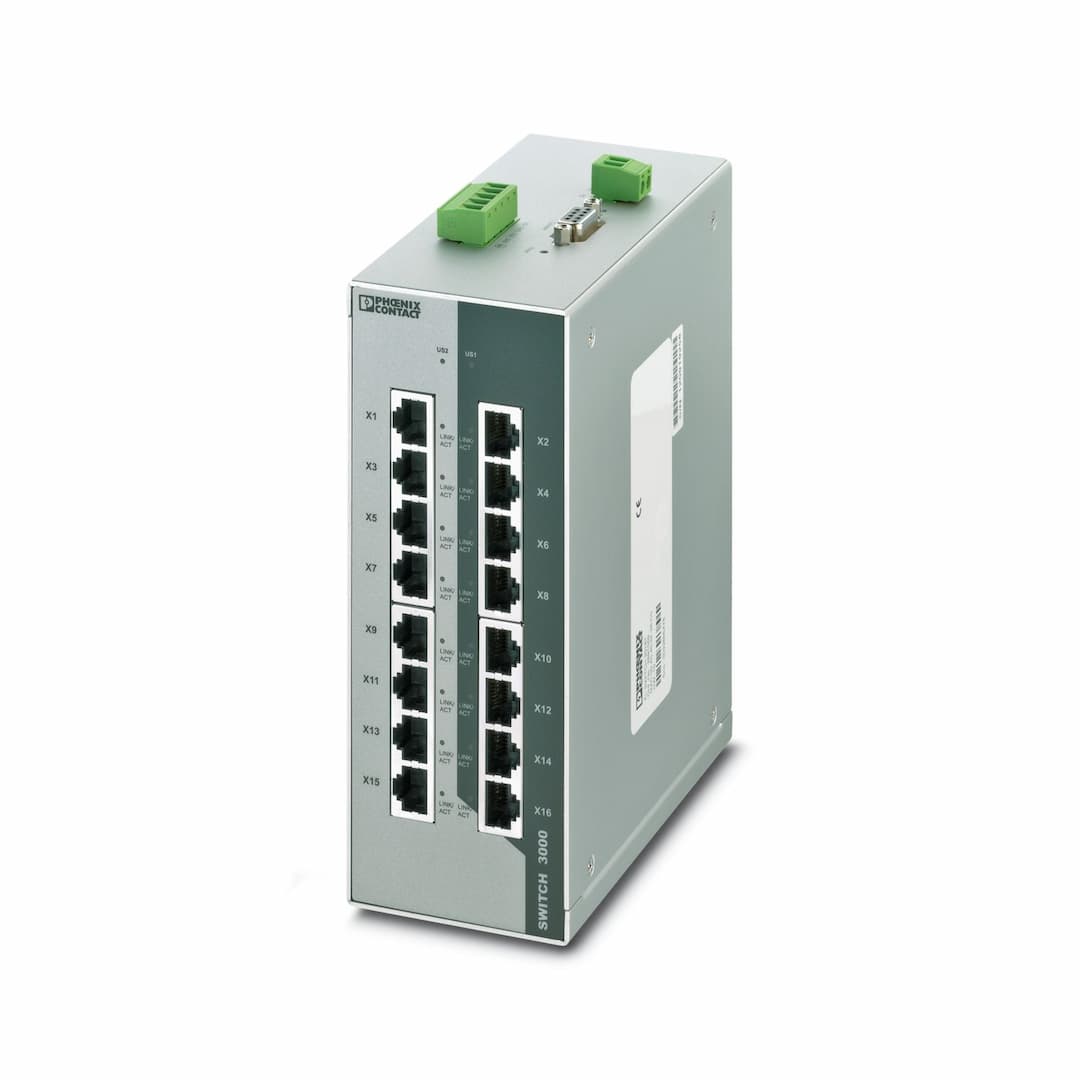

FL SWITCH 3016
Selling Points
- 1Managed Ethernet switch with 16 RJ45 ports at 10/100 Mbps.
- 2Secure web-based and SNMP-based management, cable locking, and IEEE 802.1x security.
- 3Comprehensive mix of fiber optic and copper port connections for various applications.
- 4Auto negotiation and autocrossing detection simplify setup and installation.
- 5Operating temperature range of -40°C to 75°C, suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 66 mm | Height | 173 mm |
Depth | 140 mm | Note on application | Only for industrial use |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m | No. of channels | 16 (RJ45 ports) |
Product type | Switch | Product family | Managed Switch 3000 |
Type | Block design | MTTF | 47.5 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Protection class | III (VDE 0106, IEC 60536) | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Redundancy | ERR (Extended ring redundancy) | Status and diagnostic indicators | LEDs: U |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED |
Maximum power dissipation for nominal condition | 7.49 W | Test section | Supply voltage/functional ground 500 V 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 12 V DC ... 48 V DC | Inrush current | 4.76 A (5.5 ms) |
Residual ripple | 3.6 V | Typical current consumption | 233 mA (at U |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Connection name | Power supply | pluggable | yes |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -10 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Status display | LEDs: U |
Specifications may be subject to change without notice
