Product Model

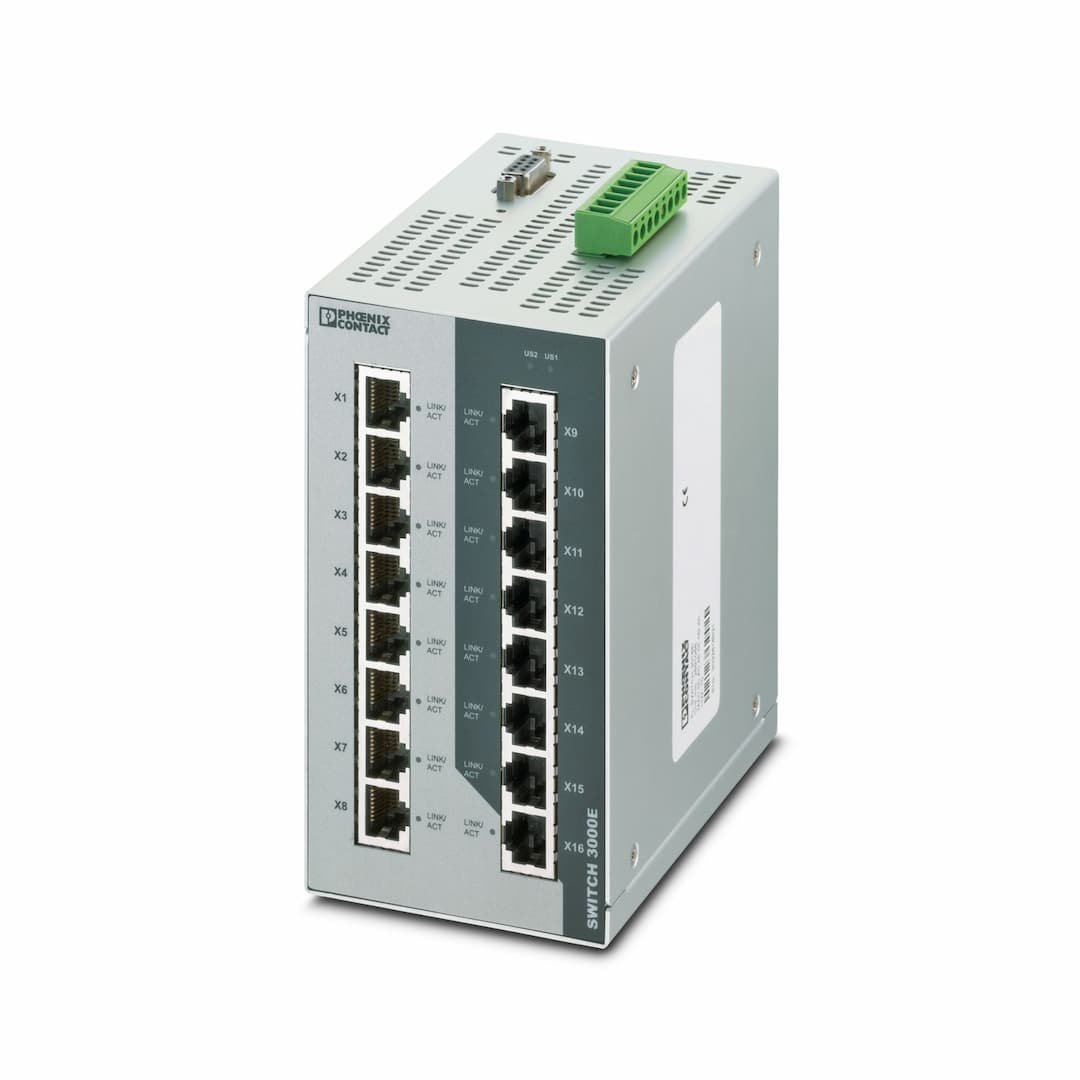

FL SWITCH 3016E
Selling Points
- 1Meets IEC 61850-3 and IEEE 1613 standards for industrial environments.
- 216 RJ45 ports at 10/100 Mbps for extensive connectivity.
- 3Operates in -40°C to +70°C for harsh industrial conditions.
- 4Extended Ring and IEEE redundancy ensures high reliability.
- 5Comprehensive security features including VLANs, IEEE 802.1x, and SNMP V3.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 78.6 mm | Height | 145 mm |
Depth | 125 mm | Housing material | Aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m |
No. of channels | 16 (RJ45 ports) | Product type | Switch |
Product family | Managed Switch 3000 | Type | Block design |
MTTF | 32.4 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Redundancy | ERR (Extended ring redundancy) | Status and diagnostic indicators | LEDs: U |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Local diagnostics | US1, US2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED |
Maximum power dissipation for nominal condition | 7.49 W | Test section | Supply voltage/functional ground 500 V 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 12 V DC ... 48 V DC | Inrush current | 6.4 A (200 µs) |
Residual ripple | 3.6 V | Typical current consumption | 312 mA (at U |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Connection name | Power supply | Connection method | Pluggable COMBICON screw connections |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Conformance | CE-compliant |
Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Noise emission | EN 61000-6-4 |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Status display | LEDs: U |
Specifications may be subject to change without notice
