Product Model

FL SWITCH 4012T-2GT-2FX

In Stock
Last updated: 2025/4/26

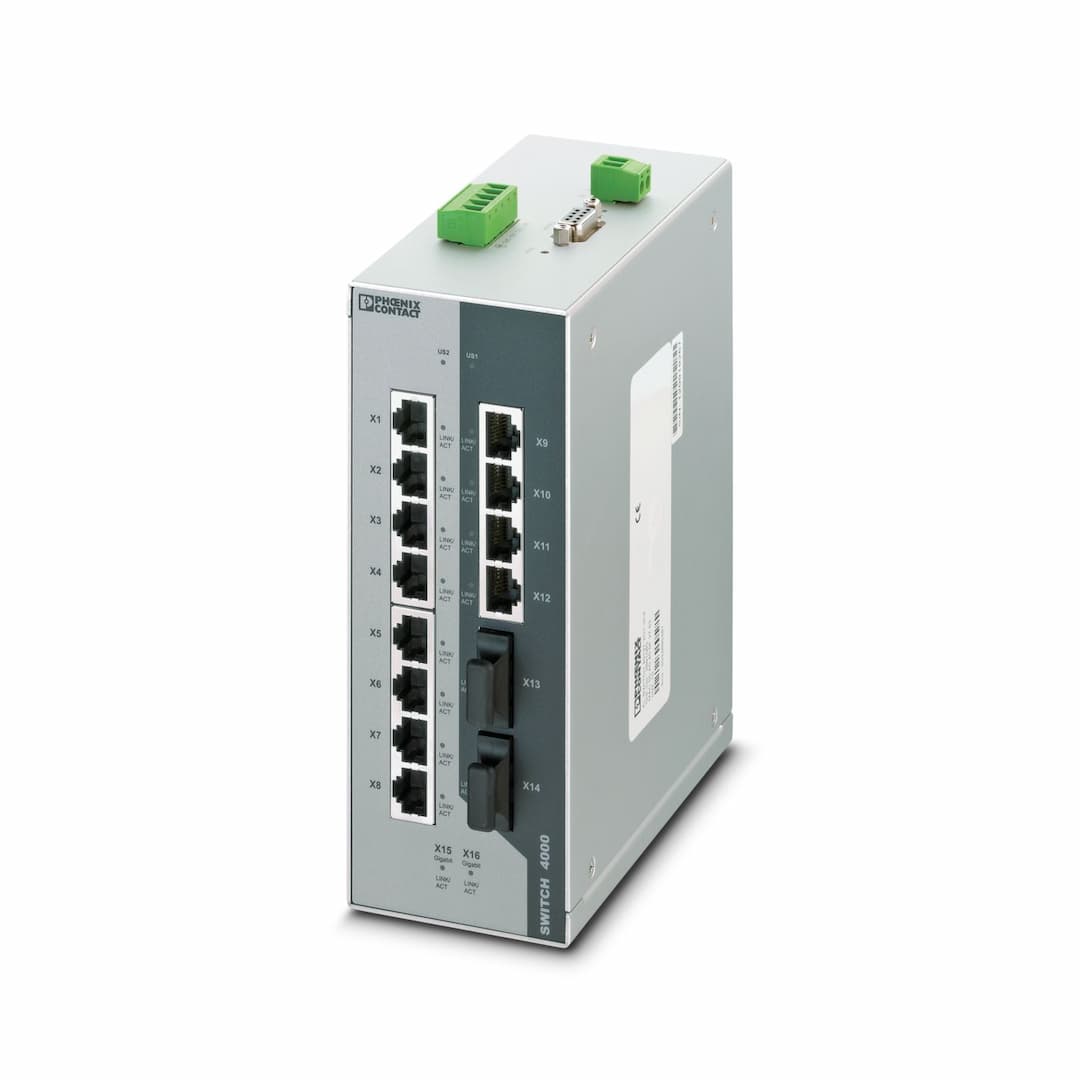

Phoenix Contact FL SWITCH 4012T-2GT-2FX

Selling Points

  • 112 RJ45 Ports for Device Connections: Supports up to 12 devices at 10/100 Mbps.
  • 2Gigabit Ethernet Capability: Two RJ45 ports support speeds of 10/100/1000 Mbps.
  • 3Fiber Optic Connectivity: Two SC-D fiber optic ports for remote connections at 100 Mbps.
  • 4Extended Ring Redundancy: Ensures network uptime with 15 ms recovery time.
  • 5Advanced Security Features: Includes IEEE redundancy (STP/RSTP/MST), SNMP V3, and HTTPS security.
Product Details
FL SWITCH 4012T-2GT-2FX
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
66 mm
Height
173 mm
Depth
140 mm
CCCex note
Use in potentially explosive areas is not permitted in China.
Housing material
Aluminum
Mounting type
DIN rail mounting
Connection method
RJ45
Note on the connection method
Auto negotiation and autocrossing
Transmission speed
10/100 Mbps
Transmission physics
Ethernet in RJ45 twisted pair
Transmission length
100 m
No. of channels
12 (RJ45 ports)
Connection method
SC
Transmission speed
100 Mbps (full duplex)
Transmission physics
multi-mode fiberglass
Transmission length
8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600) 9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200) 5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800)
Wavelength
1300 nm
No. of channels
2 (SC multi-mode)
Transmission length
6400 m
Connection method
RJ45
Note on the connection method
Auto negotiation and autocrossing
Transmission speed
10/100/1000 Mbps
Transmission physics
Ethernet in RJ45 twisted pair
Transmission length
100 m
No. of channels
2 (RJ45 ports)
Product type
Switch
Product family
Managed Switch 4000
Type
Block design
MTTF
18.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
Protection class
III (VDE 0106, IEC 60536)
Basic functions
Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Signal contact control voltage
24 V DC
Signal contact control current
100 mA
Redundancy
ERR (Extended ring redundancy)
Status and diagnostic indicators
LEDs: U
Basic functions
Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Local diagnostics
US1, US2 Supply voltage Green LED LNK/ACT Link status/data transmission Green LED
Maximum power dissipation for nominal condition
11.38 W
Test section
Supply voltage/functional ground 500 V 1 min
Transmission medium
Copper FO
Supply voltage (DC)
24 V DC (redundant)
Supply voltage range
12 V DC ... 48 V DC
Inrush current
7.7 A (200 µs)
Residual ripple
3.6 V
Typical current consumption
474 mA (at U
Signal contact control voltage
24 V DC
Signal contact control current
100 mA
Connection name
Power supply
Connection method
Pluggable COMBICON screw connections
Conductor cross section, rigid
0.2 mm² ... 2.5 mm²
Conductor cross section, flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Stripping length
7 mm
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 75 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
5 % ... 95 % (non-condensing)
Air pressure (operation)
57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Air pressure (storage/transport)
57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Conformance
CE-compliant
ATEX
 II 3 G Ex nA nC IIC T4 Gc
EU-type examination certificate
DEMKO 16 ATEX 1616X
IECEx
Ex nA nC IIC T4 Gc
IECEx certificate
IECEx UL 16.0094X
UL, USA / Canada
Class I, Div. 2, Groups A, B, C, D
Conformance with EMC directives
IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B IEC 61000-4-3 (immunity to radiated interference) Criterion A IEC 61000-4-4 (burst) Criterion A IEC 61000-4-5 (surge) Criterion B IEC 61000-4-6 (immunity to conducted interference) Criterion A IEC 61000-4-8 (immunity to magnetic fields) Criterion A EN 55022 (emitted interference) Class A
Noise immunity
EN 61000-6-2:2005
Noise emission
EN 61000-6-4
Basic functions
Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
Status display
LEDs: U

Specifications may be subject to change without notice
