Product Model

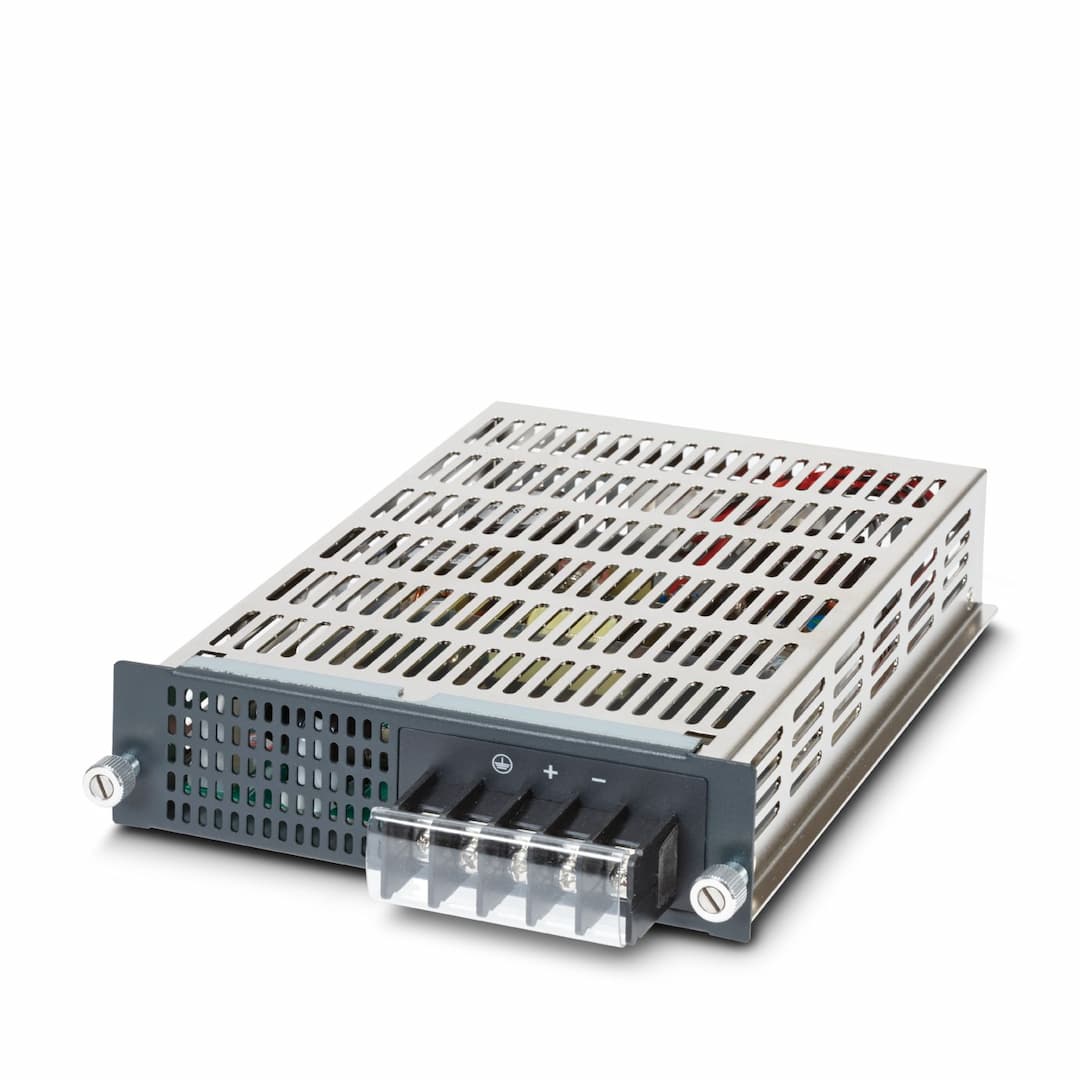

FL SWITCH 4800E-P1B
Selling Points
- 1151 mm width, 40 mm height, and 214 mm depth for easy integration.
- 2Made from steel for long-lasting performance in demanding environments.
- 3Reliable screw connections ensure secure and stable connectivity.
- 4Supports operation in ambient temperatures from -40 °C to 75 °C and humidity levels of 5% to 95% (non-condensing).
- 5Designed as an internal module for rack switches, simplifying setup in control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Power module | Input voltage | 48 V DC |
Nominal input voltage range | 36 V DC ... 75 V DC | Input voltage range DC | 36 V DC ... 75 V DC |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.8 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.8 mm² |
Conductor cross section flexible max. | 6 mm² | Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 10 | Width | 151 mm |
Height | 40 mm | Depth | 214 mm |
Housing material | Steel | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Standards/specifications | IEC 61850 |
Mounting type | Internal module for rack switch |
Specifications may be subject to change without notice
