Product Model

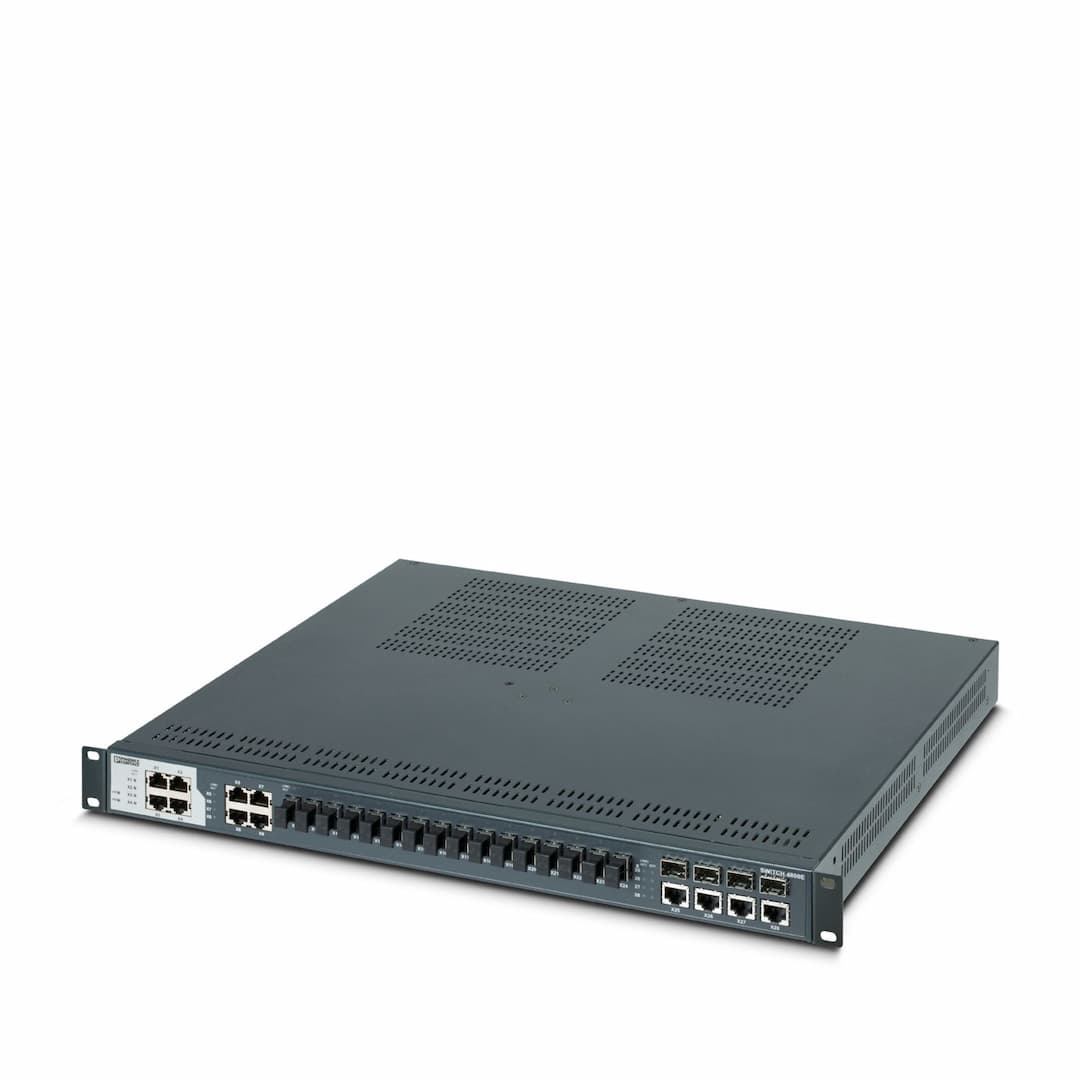

FL SWITCH 4808E-16FX-4GC
Selling Points
- 1Rack-mount design for easy installation.
- 2Compliant with IEC 61850-3 and IEEE 1613 standards.
- 3Eight RJ45 ports at 10/100 Mbps and 16 SC-D MM fiber ports at 100 Mbps.
- 4Four gigabit combo ports for versatile connectivity.
- 5Advanced security features including SNMP V3 and Https security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 442 mm | Height | 44 mm |
Depth | 375 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Mounting type | Rack mount, includes brackets |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m | No. of channels | 8 (RJ45 ports) |
Connection method | SC | Transmission speed | 100 Mbps (Full duplex) |
Transmission physics | multi-mode fiberglass | Transmission length | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800) |
Wavelength | 1300/1310 nm | No. of channels | 16 (Multi mode) |
Connection method | SFP/RJ45 | Note on the connection method | Auto negotiation and autocrossing (RJ45 interface) |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps) |
No. of channels | 4 (Combo ports) | Product type | Switch |
Product family | Managed Switch 4000 | Type | Block design |
MTTF | 7.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
41.2 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
19.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 06 |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Redundancy | ERR (Extended ring redundancy) |
Status and diagnostic indicators | LEDs: U | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Transmission medium | Copper
FO | Power supply connection | From FL SWITCH 4800E-P... |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Standard designation | Ambient conditions |
Standards/specifications | IEC 61850-3 | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
Noise emission | EN 61000-6-4 | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Status display | LEDs: U |
Specifications may be subject to change without notice
