Product Model

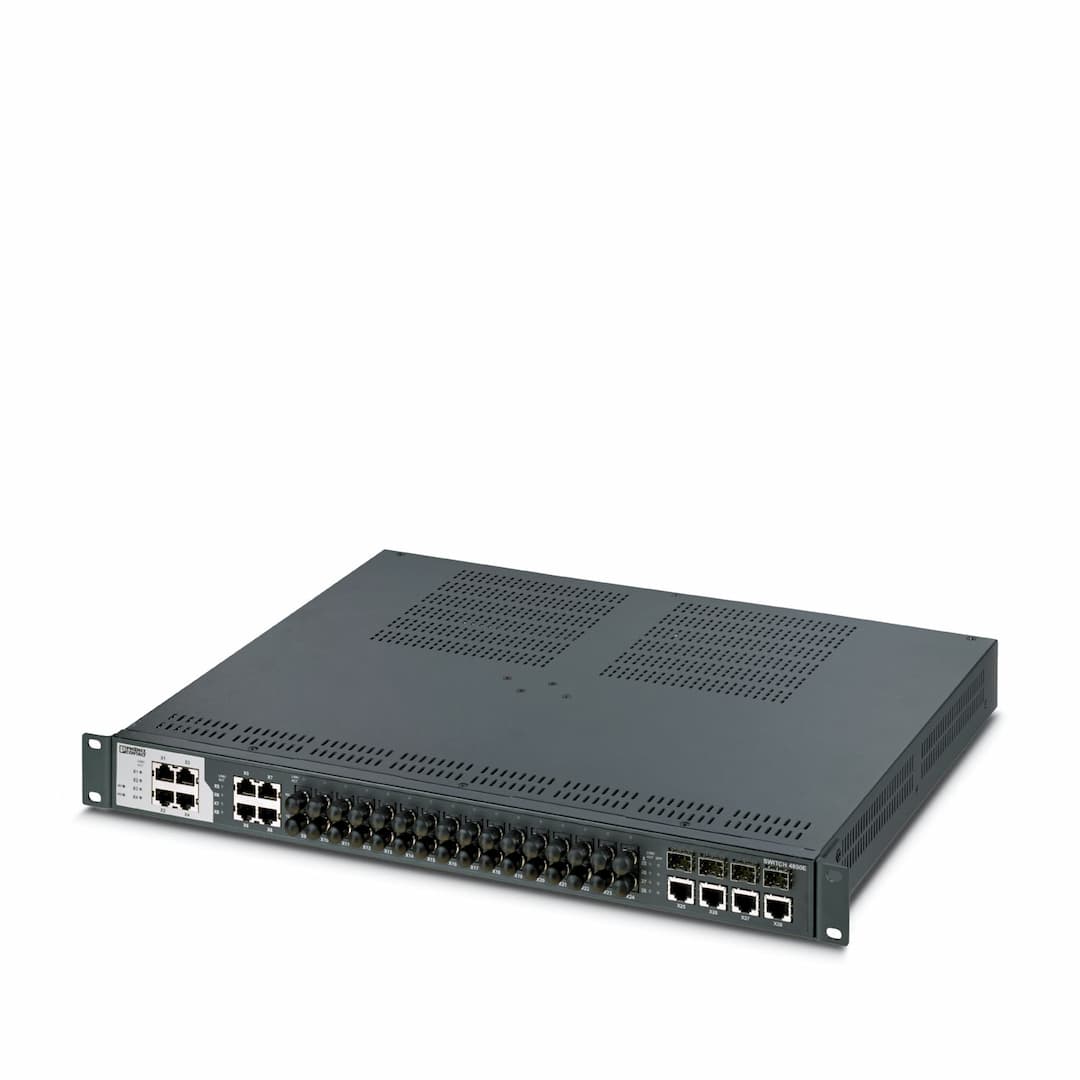

FL SWITCH 4808E-16FX SM ST-4GC
Selling Points
- 1Ensures maximum uptime with redundant components.
- 2Features message filtering and security functions for robust network protection.
- 3Supports 100 Mbps transmission speed over single-mode fiber.
- 4Meets IEC 61850-3 and IEEE 1613 standards for industrial environments.
- 5Includes 16 SC-D SM fiber ports and 8 RJ45 ports for versatile connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 442 mm | Height | 44 mm |
Depth | 375 mm | Note on application | Only for industrial use |
Mounting type | Rack mount, includes brackets | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m |
No. of channels | 8 (RJ45 ports) | Connection method | ST |
Transmission speed | 100 Mbps (Full duplex) | Transmission physics | Single-mode fiberglass |
Transmission length | 40 km (typical) | No. of channels | 16 (Singlemode) |
Connection method | SFP/RJ45 | Note on the connection method | Auto negotiation and autocrossing (RJ45 interface) |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps) |
No. of channels | 4 | Product type | Switch |
Product family | Managed Switch 4000 | Type | Block design |
Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts | Redundancy | ERR (Extended ring redundancy) |
Status and diagnostic indicators | LEDs: U | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Current consumption | 476 mA (115 V AC from FL SWITCH 4800E-P5) | Transmission medium | Copper
FO |
Inrush current | 19.2 A (48 V DC from FL SWITCH 4800E-P1) | Current consumption | 476 mA (115 V AC from FL SWITCH 4800E-P5) |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
Noise emission | EN 61000-6-4 | Basic functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Status display | LEDs: U |
Specifications may be subject to change without notice
