Product Model

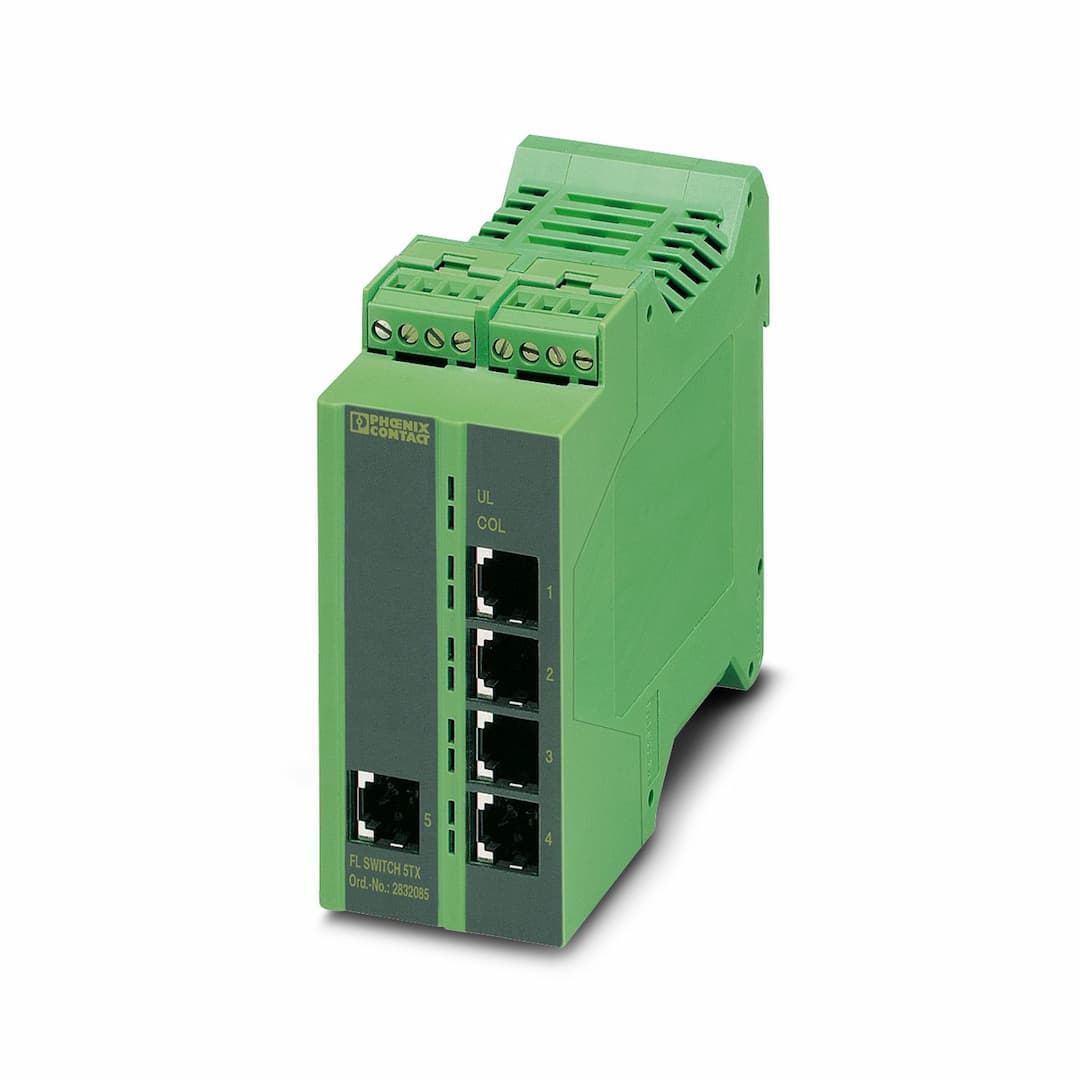

FL SWITCH 5TX
Selling Points
- 15 RJ45 ports for reliable Ethernet connectivity.
- 2Supports 10/100 Mbps data transmission speeds.
- 3QoS-prioritized messages for efficient network management.
- 4Local diagnostic indicators with LEDs for easy troubleshooting.
- 5Corrosion-free DIN rail mounting for secure installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 99 mm |
Depth | 112 mm | Color | green |
Housing material | PA 6.6 | Mounting type | DIN rail mounting |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 5 |
Connection method | Plug-in/screw connection via COMBICON | Product type | Switch |
Type | Stand-Alone | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (typical) | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Local diagnostics | US1, US2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED
One LED per port Telegrams received Yellow LED | Maximum power dissipation for nominal condition | 3 W |
Test section | 500 V DC 1 min | Transmission medium | Copper |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 30.2 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 125 mA (to U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (typical) | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 30 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
Free from substances that could impair the application of coating | In acc. with VW specification | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
IEC 61000-6-2 EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Status display | LEDs: U |
