Product Model

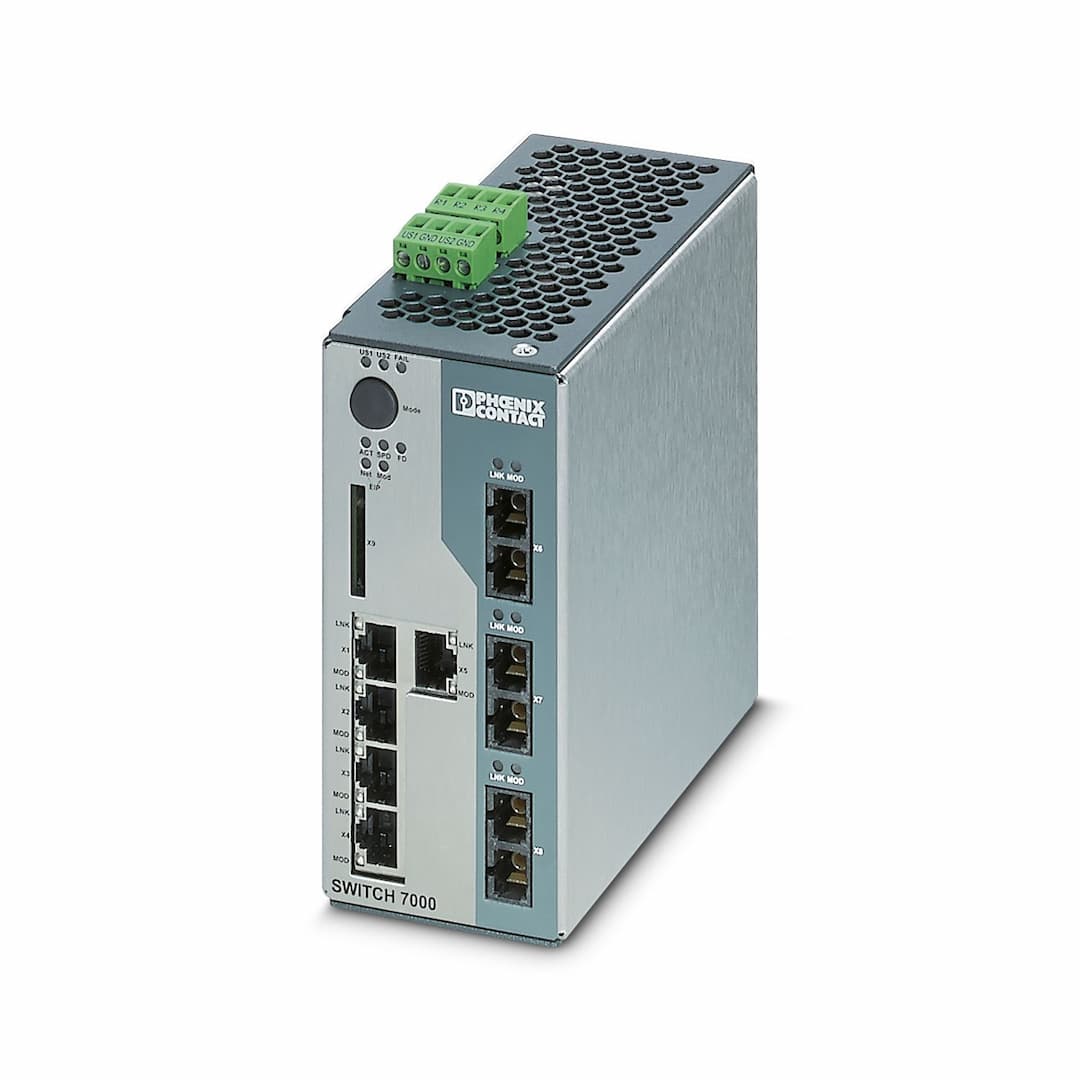

FL SWITCH 7005/FX-2FXSM-EIP
Selling Points
- 15 RJ45 ports and 3 fiber optic ports for versatile connectivity.
- 210/100 Mbps transmission speed ensures reliable data transfer.
- 3IP20 protection for safe operation in harsh environments.
- 4PROFINET Conformance-Class A and EtherNet/IP™ for seamless integration.
- 5Web-based management and SNMP support for easy configuration and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60 mm | Height | 130 mm |
Depth | 135.5 mm | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 5 (RJ45 ports) | Connection method | SC |
Transmission speed | 100 Mbps (full duplex) | Transmission physics | multi-mode fiberglass |
Transmission length | 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) | Wavelength | 1300 nm |
Signal LEDs | Data receive, link status | No. of channels | 1 (SC multi-mode) |
Connection method | SC | Transmission speed | 100 Mbps (full duplex) |
Transmission physics | Single-mode fiberglass | Transmission length | 36000 m (fiberglass with F-G 9/125 0.36 dB/km)
32000 m (fiberglass with F-G 9/125 0.4 dB/km)
26000 m (fiberglass with F-G 9/125 0.5 dB/km) |
Wavelength | 1300 nm | No. of channels | 2 (SC single mode) |
Product type | Switch | Product family | Managed Switch 7000 |
Type | Book type | MTTF | 117.48 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
61.64 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
8.89 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) |
Special properties | EtherNet/IP™ | Article revision | 08 |
Protection class | III (VDE 0106, IEC 60536) | Diagnostic functions | Remanente Event-Table
RMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
ACD (Address Conflict Detection) |
EtherNet/IP™ supported protocols | Common Industrial Protocol | Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 1 A (maximum) |
PROFINET conformance class | Conformance-Class A | PROFINET device function | Fast Startup |
Filter functions | Quality of Service (8 priority classes)
Port-Priorisierung
VLAN (up to 32 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering
Static Multicast Filtering (32 groups)
Link Aggregation (up to 4 trunks) | IP parameterization | DHCP client
DHCP Option 82 (Relay Agent)
DHCP server (pool-based, port-based)
BootP |
MAC address table | 16k | Management | Web-based management (HTTP/HTTPS)
SNMPv1/v2/v3 |
Redundancy | DLR (Device Level Ring)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
Additional functions | MAC-based Port-Security | Time synchronization | PTP 1588 (Transparent clock on the DLR ports) |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Power consumption | 12.8 W |
Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED | Maximum power dissipation for nominal condition | 12.8 W |
Test section | 500 V DC 1 min | Transmission medium | Copper
FO |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 12 V DC ... 58 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 445 mA (at U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 1 A (maximum) | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Free from substances that could impair the application of coating | Yes | Noxious gas test | ISA S71.04.2013 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Store-and-forward switch, complies with IEEE 802.3 | Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
Specifications may be subject to change without notice
