Product Model

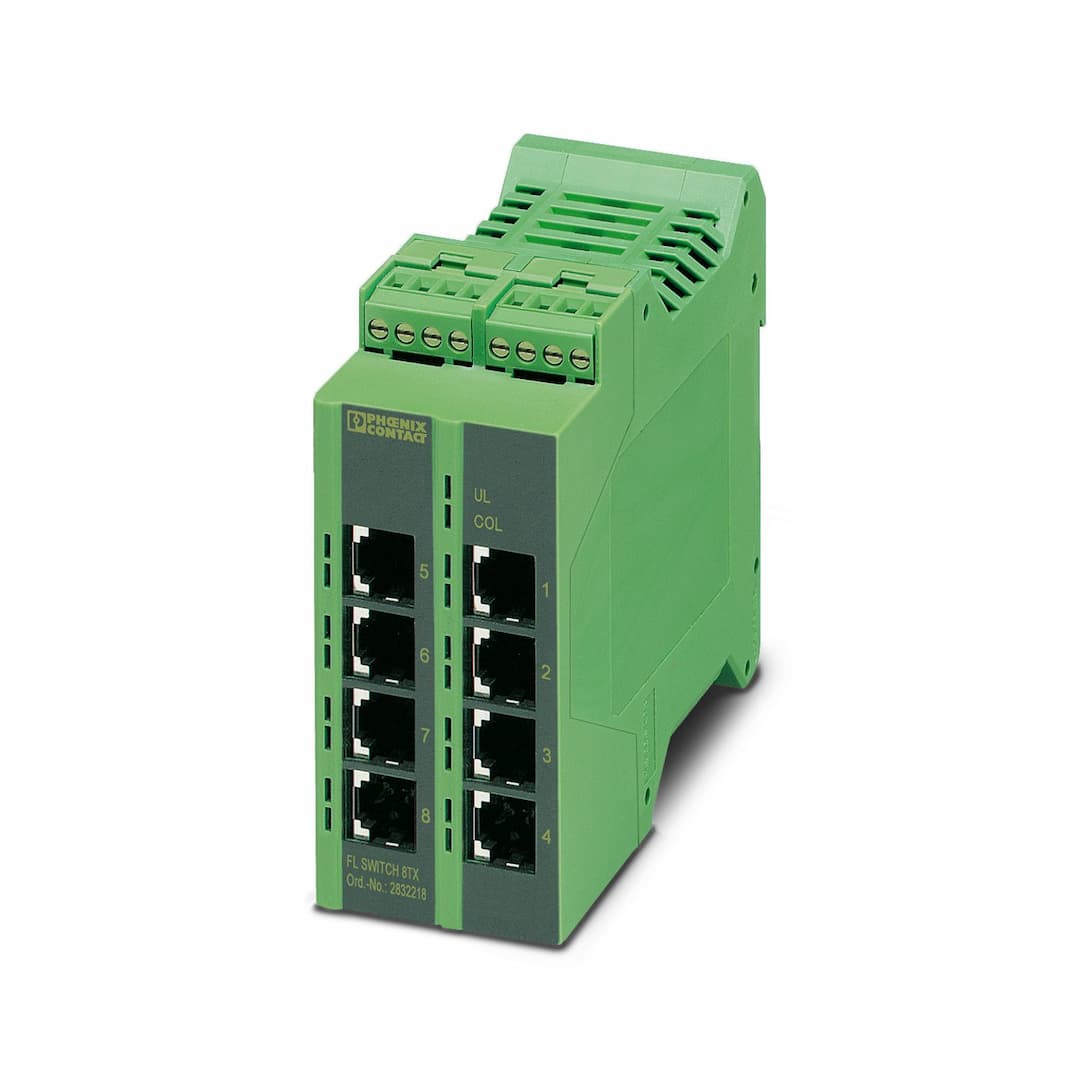

FL SWITCH 8TX
Selling Points
- 1Auto Negotiation and Autocrossing Detection Simplifies Installation and Setup
- 2Local Diagnostic Indicators with LEDs for Easy Troubleshooting
- 3Cable Locking and Port Blocking for Secure Network Management
- 4QoS-Prioritized Messages Ensure Reliable Data Transmission
- 5Supports 10/100 Mbps Transmission Speed on RJ45 Ports
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 99 mm |
Depth | 112 mm | Color | green |
Housing material | PA 6.6; V0; green AI | Mounting type | DIN rail mounting |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 8 |
Connection method | Plug-in/screw connection via COMBICON | Product type | Switch |
Type | Book type | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 100 mA (typical) | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
Power consumption | 3 W (maximum) | Local diagnostics | US1, US2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED
One LED per port Telegrams received Yellow LED |
Maximum power dissipation for nominal condition | 3 W | Test section | 500 V AC 50 Hz 1 min |
Transmission medium | Copper | Supply voltage | 24 V DC |
Supply voltage range | 18.5 V DC ... 30.2 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Typical current consumption | 125 mA (to U |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 100 mA (typical) |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO | Free from substances that could impair the application of coating | In acc. with VW specification |
Electromagnetic compatibility | Conformance with EMC directive 89/336/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
