Product Model

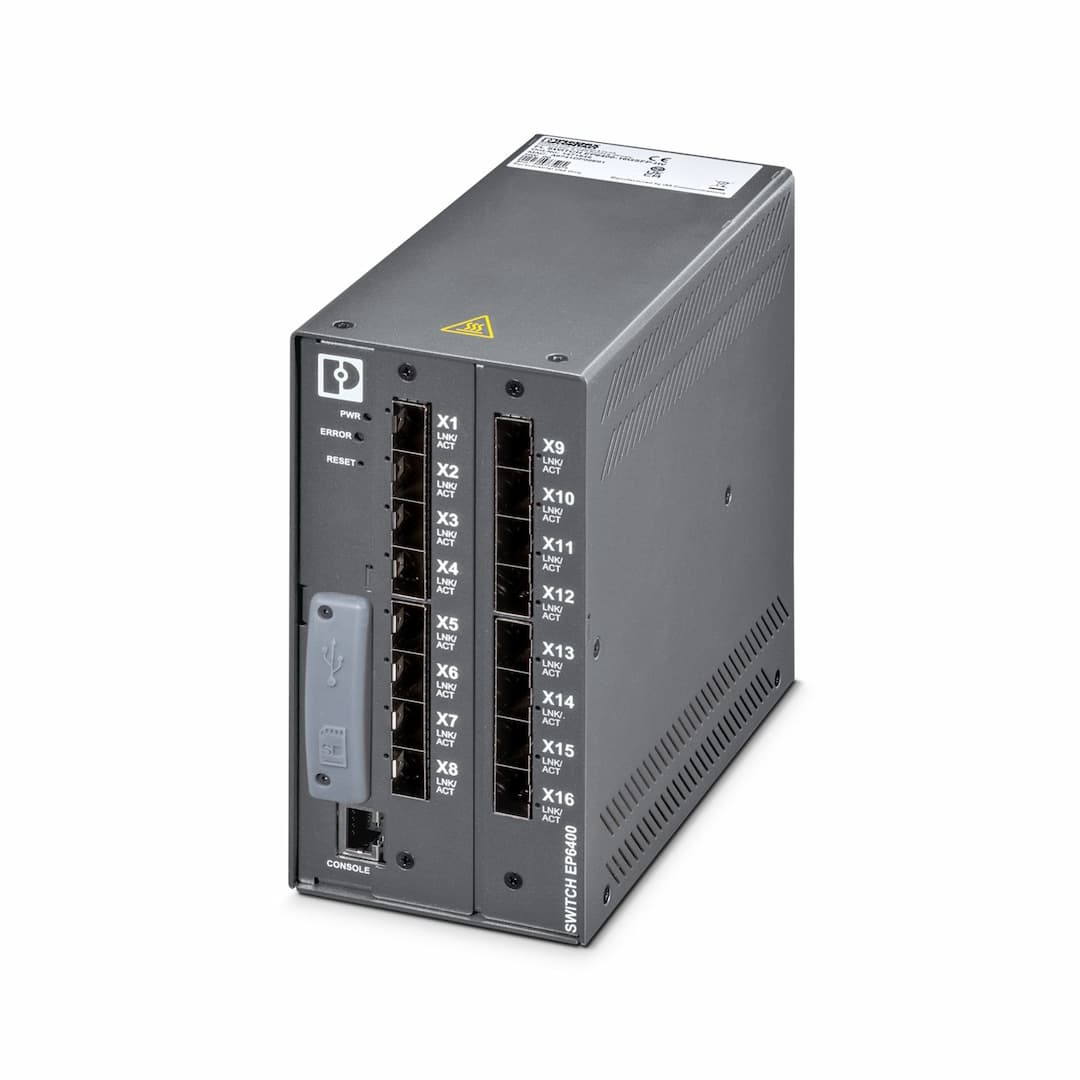

FL SWITCH EP6400-16GSFP-HV
Selling Points
- 1Ensures long-lasting performance in demanding environments.
- 2Supports standard DIN rail mounting for streamlined setup in control panels.
- 3Reliable screw connection provides secure and stable connectivity.
- 4Transmits data at speeds of 100/1000 Mbps (full duplex) for efficient network operations.
- 5Ideal for various industrial settings with a transmission length of up to [insert length].
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 82.7 mm | Height | 188.39 mm |
Depth | 197.12 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | DIN rail |
Mounting type | DIN rail mounting | Connection method | SFP |
Transmission speed | 100/1000 Mbps (full duplex) | Transmission physics | Depending on the SFP module |
Output name | Alarm relay output: 24 V DC, 1 A maximum | Product type | Switch |
Product family | Managed Switch EP6000 | Article revision | 02 |
Overvoltage category | II | Degree of pollution | 2 |
Signal contact control voltage | 24 V DC | Signal contact control current | 1 A |
MAC address table | 16k | Status and diagnostic indicators | LEDs: POWER, ERROR, Link status |
Local diagnostics | Power Supply voltage Green LED
Error Alarm signal LED red | Maximum power dissipation for nominal condition | max. 50 W |
Transmission medium | depending on the SFP module used | Supply voltage (AC/DC) | 240 V AC/DC |
Supply voltage range | 100 V AC/DC ... 240 V AC/DC | Signal contact control voltage | 24 V DC |
Signal contact control current | 1 A | Connection method | Screw connection |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Standard designation | Ambient conditions |
Standards/specifications | IEC 61850-3
IEEE 1613 | Conformance | CE-compliant |
Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Status display | LEDs: POWER, ERROR, Link status |
Specifications may be subject to change without notice
